13

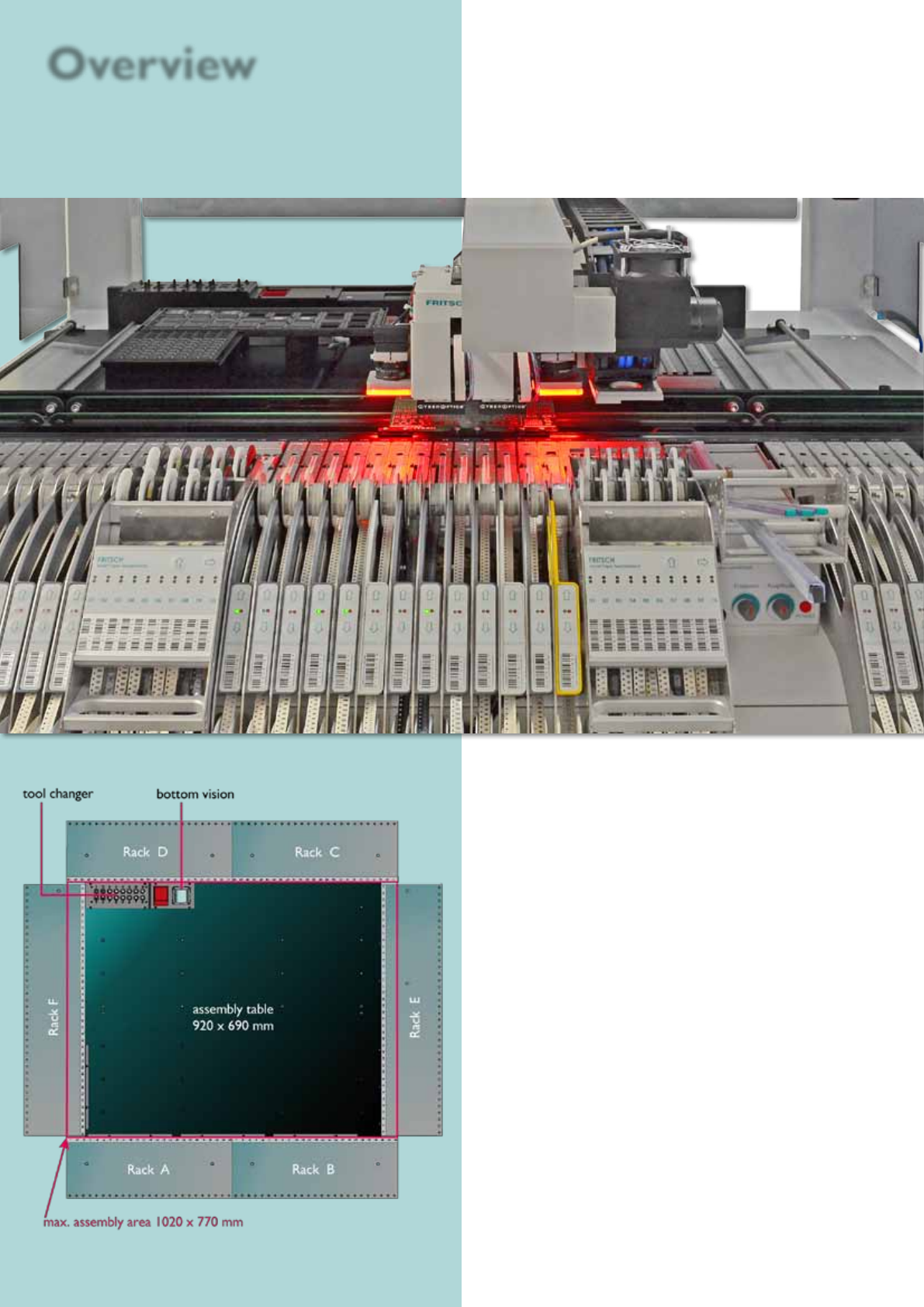

Overview
The placeALL
®
610XL offers the largest
assembly area of the series 610. Its dimensions of
up to 1020 x 690 mm also enable the assembly of
largest projects. Apart from the mere PC board
surface there is enough space for numerous
trays. Up to 346 different feeding positions can
be provided. The available depth also allows the
integration of an inline-system in the front area
of the machine as well as lateral feeding units.
Even in case of an inline function, there are still
262 feeding positions available as well as space
for several trays.
14
placeALL
®
700
Range of applications
Assembling and dispensing of low and medium volume SMT, up to 14000 components per hour.
Feeding units
Feeding of components from tape, stick, tape stripe, tray and loose components.
Component capability
Chips 0201 up to Fine Pitch 70 × 70 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and
custom parts like connectors, wired THT-LEDs etc.
Axis drive and control
X-Y Axis: Direct-current motors with contactless linear encoders, resolution 1 µm.
Z-Axis : Direct-current motors with encoders, resolution 8 µm.
R-Axis: Direct-current motors with encoders on assembling axis 0.012°.
Economics
Modular system, fast changeover times, intelligent feeder concept, user friendly software.
15

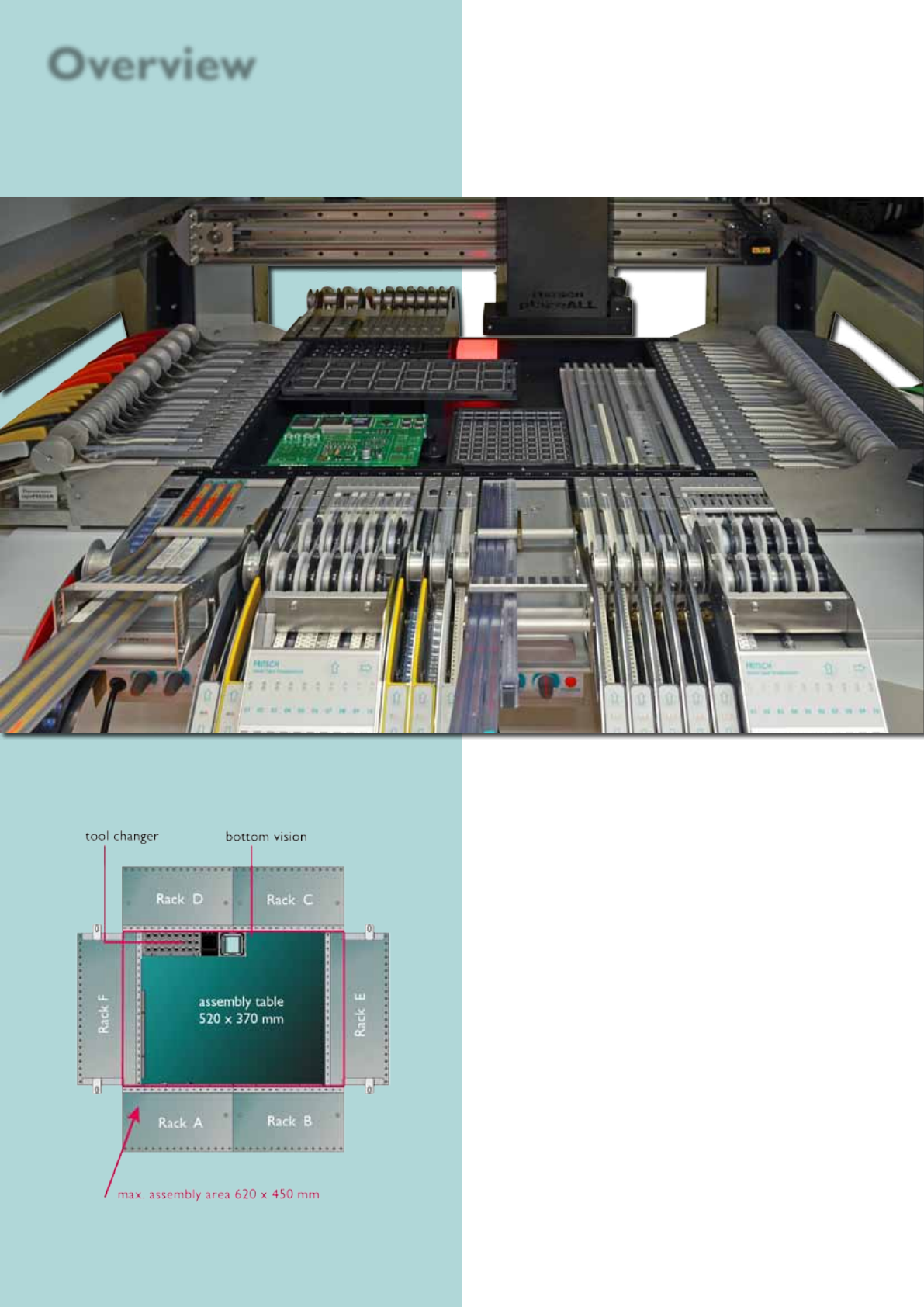

Overview
The placeALL
®
700 is based on the most modern
technic in axis drive and control and up to four
assembling heads the optimum machine for the
exible and precise SMD production of medium
series. It has a modular structure and provides an
assembly quantity of up to 14000 components* per
hour. Up to 208 possible feeder positions and an
intelligent software reduce the changeover times to
a minimum. The solid and torsion-free construction
ensures an accurate handling of components like
Fine-Pitch 0.3 mm, µBGAs and 0201 components. It
is applicable as stand-alone machine or built up to a
full-automatic line for the SMT production.
The placeALL
®
700 offers different options for
dispensing glue or solder pastes. These can be
chosen due to the denition of a job. The available
hardware options and software modules like
PAJobs, PAStorage etc. and feeders are the same as
placeALL
®
510/610.
*with 4 pick & place heads
