Service Work Conveyor Replace the ring ligh t illumination board 6.1.3 Lighting adjustment 36 User Manual SIPLACE S-Feeder Test Station
Service Work Conveyor
6.1.3 Lighting adjustment Replace the ring light illumination board
User Manual SIPLACE S-Feeder Test Station 35

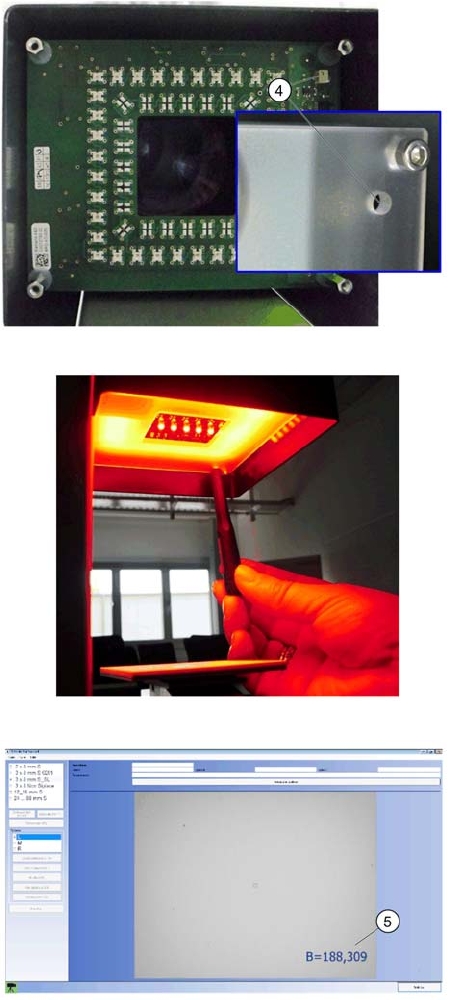

4. Put them on the potentiometer (4) the value B for
illuminance on 190 + -10.
To prevent a short circuit, the screwdriver should
not be conductive!
Depending on the type and strength of the ambient
light, the value can be falsified.
The dark it from the test station for the setting. But
use them to no reflective material!
Please take care on white normal, since it rests
loosely on the calibration part!
Use it a small adjustment screwdriver with a blade
width <1.5 mm and a thickness <0.4 mm.
Come with your fingers when adjusting the image
area of the camera!
5. Check them the value B (5) during the adjust-
ment. If they have 190 + -10 set, remove the screw-
driver and check it again the value.
Perform a machine calibration. Remove the
EDIF.Führen sie abschließend die Kalibrierung der
Kameraposition (Kapitel 3.6) durch. Entfernen sie
dazu das Weissnormal.
Service Work Conveyor
Replace the ring light illumination board 6.1.3 Lighting adjustment
36 User Manual SIPLACE S-Feeder Test Station
