3.3 PCB Requirements (1) Board Size • 356 mm (W) x 457 mm (L) maximum • 50 mm (W) x 80 mm(L) minimum • Thickness 0.5 mm – 4.0 mm Note: Consult Fuji if board backup is required. (2) Board Material • Glass epoxy, composite…
3.2 Board Transport
(1) Direction of Board Flow
• Left to right – Standard
• Right to left – Optional
(2) Board Transport Height
• 900
(+15, –5)
mm Standard
• 950
(+15, –5)
mm Optional
Vibration isolation pads may increase the board transport height by 12 mm.
(3) Board Transport
• Conveyor belt system
• In-conveyor -> main conveyor (XY-table) -> out-conveyor
(4) Maximum Transport Weight
• 1 kg maximum (2 kg with optional roller guided conveyor)
(5) Conveyor Width Adjustment
• The width of the conveyors can be changed individually or jointly using the
adjustment handle and the front rail as a reference.
– 6 – CP-642(E) Specifications
1.0
3. Machine Specifications

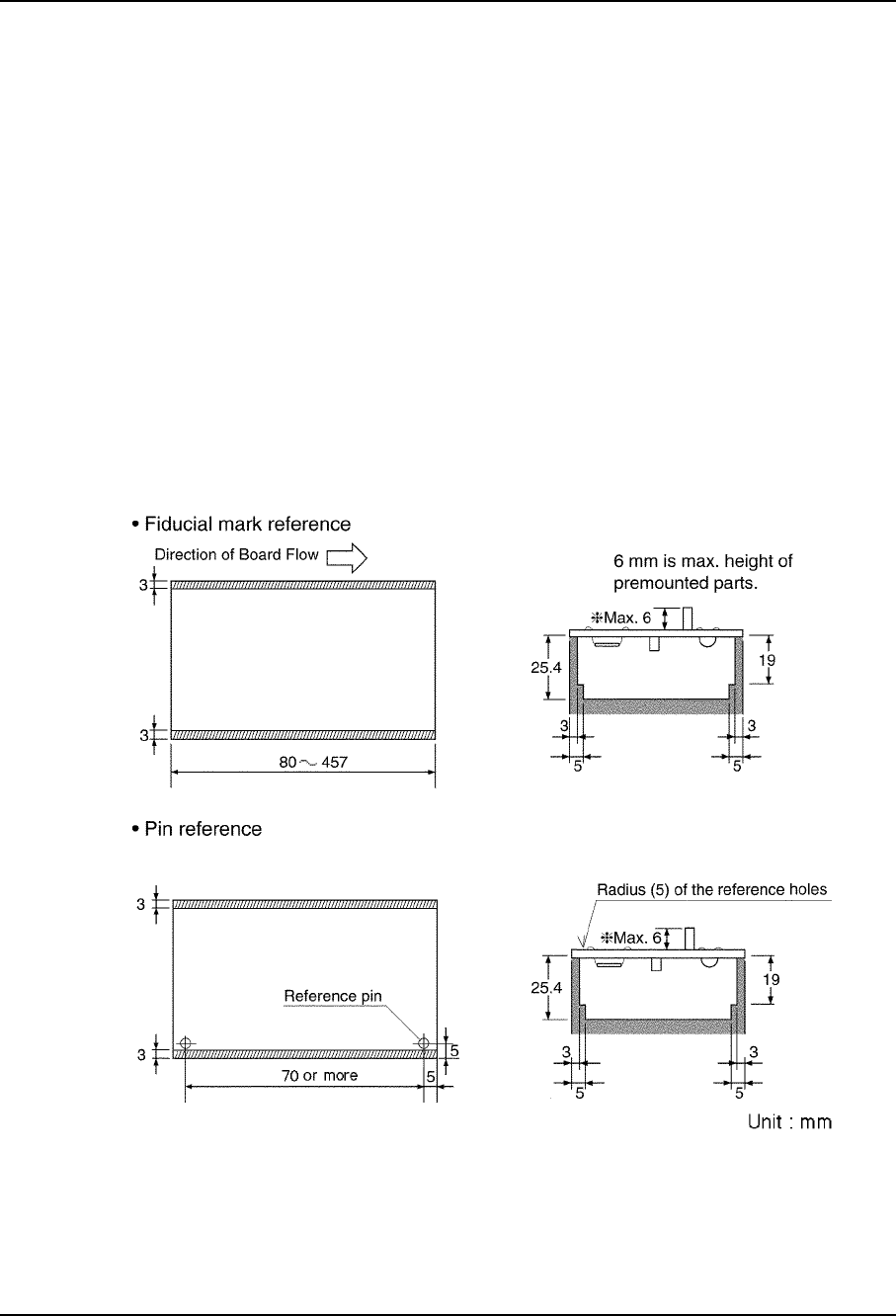

3.3 PCB Requirements
(1) Board Size
• 356 mm (W) x 457 mm (L) maximum
• 50 mm (W) x 80 mm(L) minimum
• Thickness 0.5 mm – 4.0 mm
Note: Consult Fuji if board backup is required.
(2) Board Material
• Glass epoxy, composites, paper phenol, alumina, polyimide, etc.
(3) Board Restrictions
• Warpage: ±1.0 mm maximum
• Height of premounted parts: 6.0 mm maximum
• Height of premounted bottom side parts: 25.4 mm
– 7 – CP-642(E) Specifications
2.0
3. Machine Specifications
3.4 Warranty
• Warranty period 2000 hours or 1 year. Fuji will bear no responsibility for
damage due to acts of nature (fire, flood, earthquakes, etc) or
incorrect operation.
– 8 – CP-642(E) Specifications
