2. Environmental Specifications 2.1 Electrical Power and Air • Voltage: 3-phase 200 VAC ± 10% • Frequency: 50/60 Hz • Power consumption: 10 KVA Notes: (1) Input voltage: Selectable from 200, 210, 220, 230, 380, 400, 415,…

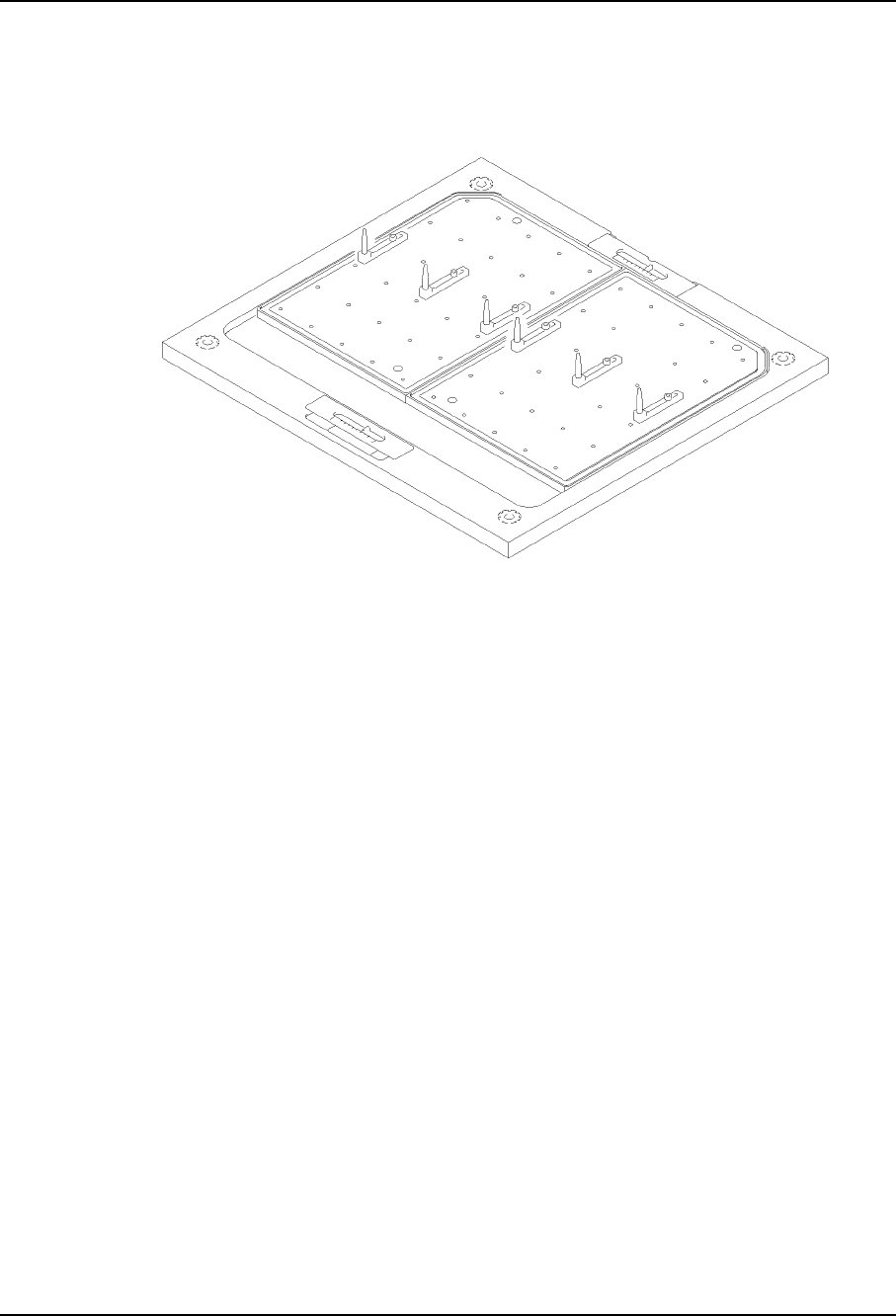

• An expanded backup pin area has eliminated the restrictions on backup positions

that existed on the XY-table on previous models. Also, the CP-642/CP-642(E) easily

meets the requirements to load PC boards of 0.5 mm thickness.

• The new loading system employs servo motors to control the PCB lifter rather than

the air cylinders used on previous models.

This system allows the CP-642(E) to shorten the PCB loading and unloading time

(reduced from 5 to 4 sec) and control acceleration/deceleration for shock-free

placement.

– 2 – CP-642(E) Specifications

2.1

1. Outline

2. Environmental Specifications

2.1 Electrical Power and Air

• Voltage: 3-phase 200 VAC ±10%

• Frequency: 50/60 Hz

• Power consumption: 10 KVA

Notes:

(1) Input voltage: Selectable from 200, 210, 220, 230, 380, 400, 415, 460 and 480 V

(by selecting the transformer taps)

(2) An exclusive power source should be used for the machine in order to avoid problems from

noise, fluctuations in voltage, and high-frequency distortion.

(3) Compressed air: 0.5 MPa (5 kgf/cm

)

(4) Air consumption: 50 Nl/min

2.2 Environmental Conditions

• Ambient temperature : 15 to 35° C

• Ambient humidity : 30 to 80 %

• Protection Structure : Class IP22 equivalent

2.3 Machine Weight

Approximately 6000 kg (excluding the D-axis rear cover)

2.4 Machine Monitor

Either Japanese or English.

– 3 – CP-642(E) Specifications

2.0

2.5 Machine Components

• XY-table

• Board conveyor

• Feeder setting tables

• Nozzles

• Placing heads

• Vision processing system

2.6 Machine Color

Body: Beige

Trim: Reddish brown

– 4 – CP-642(E) Specifications

2.0

2. Environmental Specifications
