SQUEEGEE MODULE

REPLACEMENT PROCEDURES

Chapter Issue 4, Jun 18 Technical Reference Manual 10.13

2. Slacken off the three screws securing the right hand motor to the motor

support plate.

3. Fit the new belt in position.

4. Using a cable tie wrap or similar, provide a loop around the top of the body

of the motor enabling the motor to be pulled using a force meter. Ensure

that the force meter is pulled in the direction which the drive belt is fitted,

figure above refers.

5. Pull the force meter until a tension of 3 to 4kgs is monitored on the meter.

Tighten the three screws whilst the motor is under tension.

Front Squeegee

Drive Belt

To replace a broken front squeegee drive belt carry out the following

procedure:

1. To replace the front squeegee drive belt (left hand stepper motor), the

printhead mechanism must be removed from the print carriage.

Tension in Direction of

Drive Belt Orientation

Right Stepper Motor

Rear Squeegee Motor Tensioning

Force Meter

Motor Securing Screw

Position (3 positions)

Looped Cable Tie

Drive Belt

SQUEEGEE MODULE

REPLACEMENT PROCEDURES

10.14 Technical Reference Manual Chapter Issue 4, Jun 18

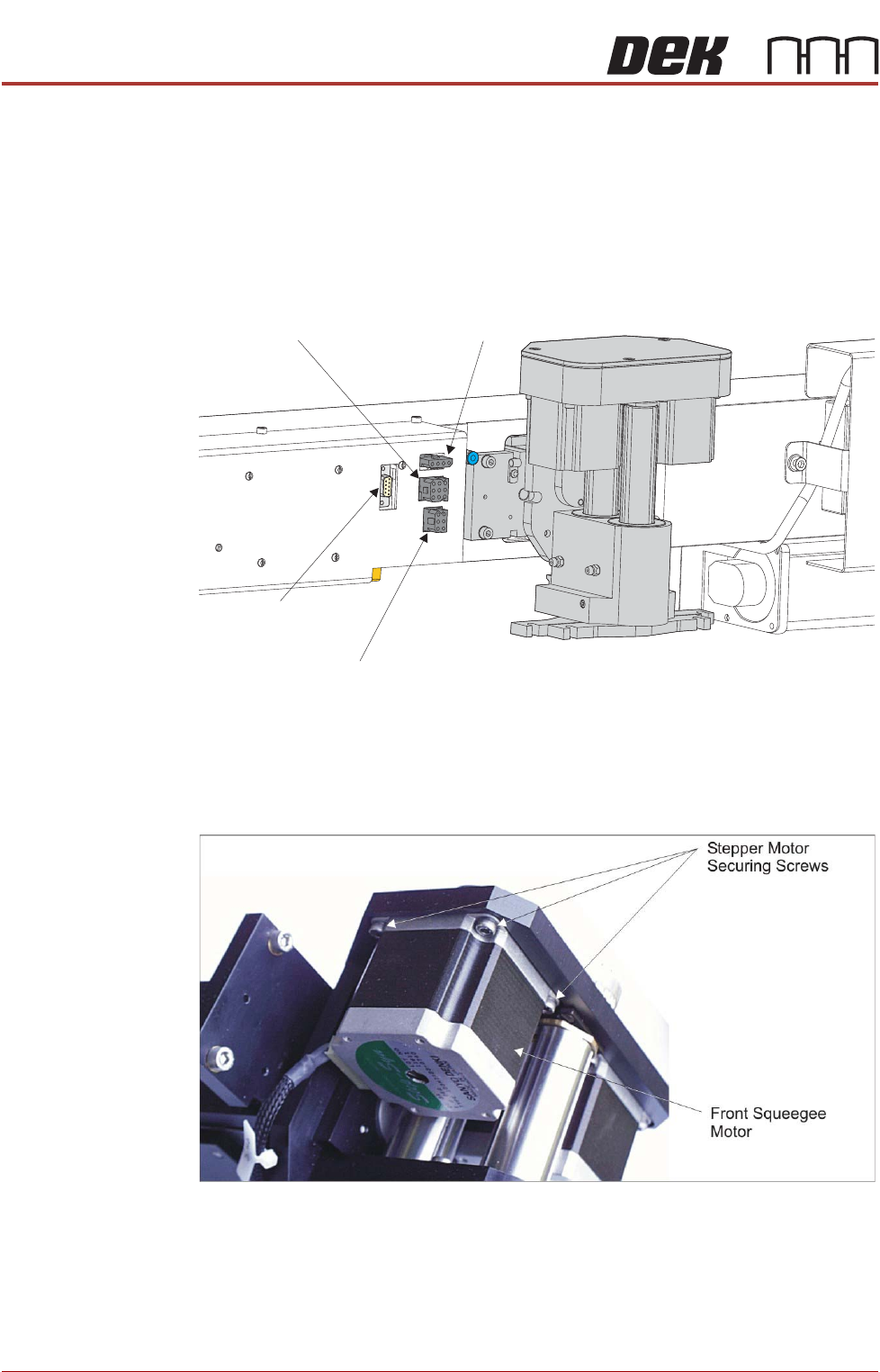

2. Disconnect the following connectors from the print carriage, left hand side:

• Rear Squeegee Motor

• Front Squeegee Motor

• Home Sensors

• Squeegee Pressure Amplifier

3. Remove the printhead mechanism by unscrewing the four screws secur-

ing the unit to the print carriage.

4. Placing the unit on a secure surface, slacken off the three screws securing

the left hand motor to the support plate.

5. Fit the new belt in position.

6. Using a cable tie wrap or similar, provide a loop around the top of the body

of the motor enabling the motor to be pulled using a force meter. Ensure

that the force meter is pulled in the direction which the drive belt is fitted,

Rear Squeegee Motor Tensioning figure example refers.

7. Pull the force meter until a tension of 3 to 4kgs is monitored on the meter.

Rear Squeegee

Motor (9SK17)

Front Squeegee

Motor (9SK16)

Home Sensors

(9SK08)

Squeegee Pressure

Amplifier (N3SK16)

SQUEEGEE MODULE

REPLACEMENT PROCEDURES

Chapter Issue 4, Jun 18 Technical Reference Manual 10.15

8. Tighten the three screws whilst the motor is under tension.

9. On completion re-fit the printhead mechanism to the print carriage refit the

drive belt cover plate and re-connect all leads to the print carriage, left

hand side.

10. Refit the squeegees.

Fitting the

Squeegees

It is usual to fit two trailing edge squeegees and use the machine in the Print/

Print mode.

When fitting a single squeegee (trailing edge or diamond section) to the

machine, it must be fitted to the front squeegee mount only.

The following procedure describes a double trailing edge squeegee

configuration fit to the machine printhead mounting assembly.

1. From the Ready page, select Product Changeover.

2. Select Change Squeegees.

3. The print carriage is driven to the front position.

4. Open the front printhead cover.

5. Fit the rear squeegee to the rear squeegee mount tightening the thumb-

screws finger tight.

NOTE

The locking thumbscrews on the rear squeegee are positioned wider apart

than those fitted to the front squeegee and the keyway slot is positioned on the

left hand side of the rear squeegee.

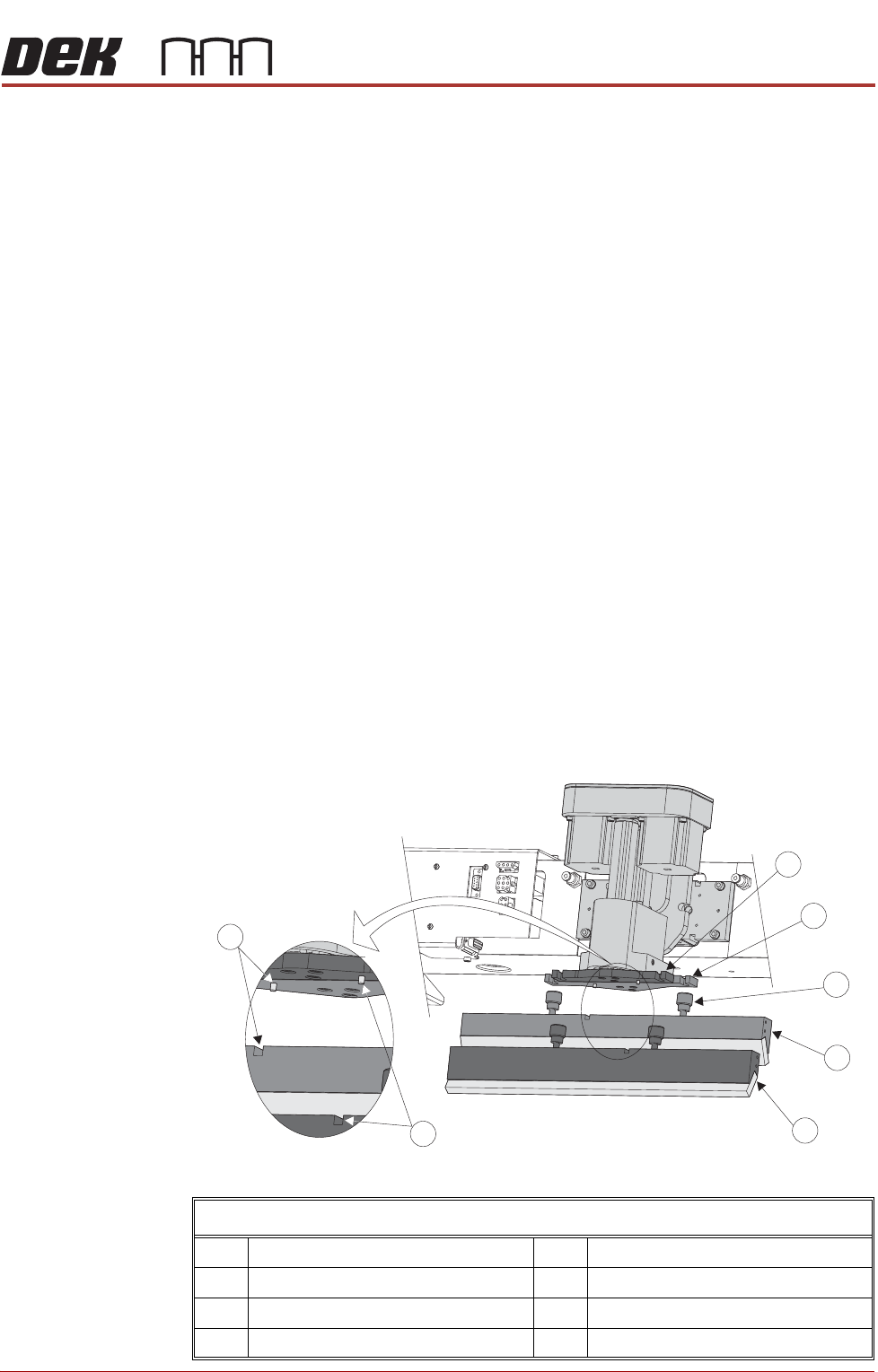

Fitting the Squeegee Blades

1 Front Squeegee Mount 5 Front Squeegee

2 Rear Squeegee Mount 6 Front Squeegee Key and Keyway Slot

3 Locking Thumbscrew (in 4 positions) 7 Rear Squeegee Key and Keyway Slot

4 Rear Squeegee

Fitting Squeegees
