SQUEEGEE MODULE
REPLACEMENT PROCEDURES
10.8 Technical Reference Manual Chapter Issue 4, Jun 18
14. Disconnect both curly air lines from the self-seal pneumatic connectors sit-
uated either side of the ProFlow printhead mechanism.
15. Disconnect the three ProFlow mechanism connectors from the print car-
riage, left hand side:
• ProFlow Motor
• Home Sensor
• ProFlow Paste Level Sensor

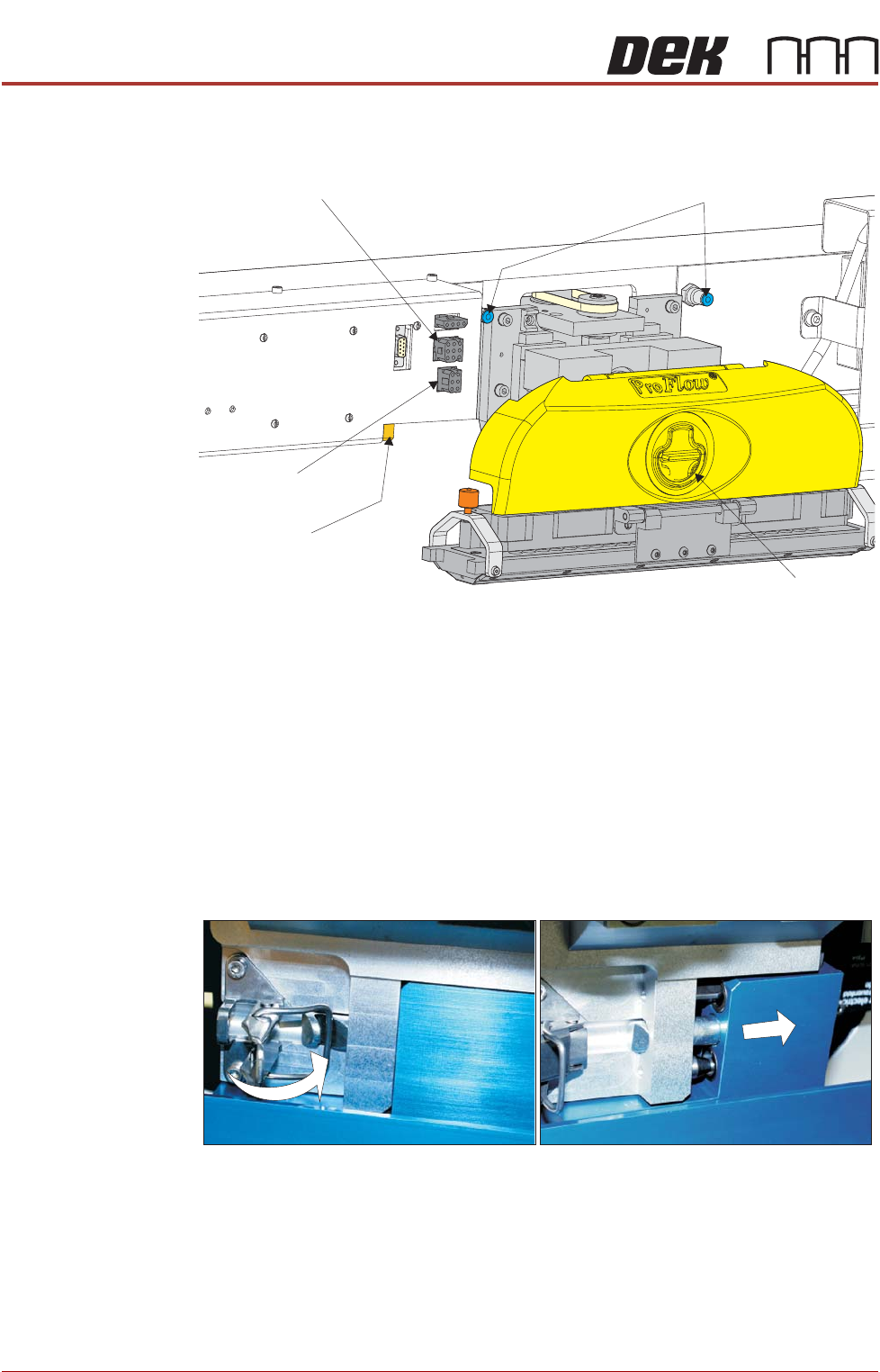

16. Manually raise the ProFlow pressure mechanism by pulling the latch on
the front of the unit and lifting the mechanism to the fixed raised position.
17. Open the locking clip, securing the transfer head to the pressure mecha-
nism and carefully slide the transfer head out and away from the pressure
mechanism as indicated in the graphic below.
Pneumatic Connectors
Latch
ProFlow Motor
(9SK17)
Home Sensor
(9SK08)
ProFlow Paste Level
Sensor (9PL62)
SQUEEGEE MODULE
REPLACEMENT PROCEDURES
Chapter Issue 4, Jun 18 Technical Reference Manual 10.9
18. Release the pressure mechanism from the printhead mechanism by
unscrewing the two securing bolts, using a 5mm Allen key.
Securing Bolts
SQUEEGEE MODULE
REPLACEMENT PROCEDURES
10.10 Technical Reference Manual Chapter Issue 4, Jun 18
19. Loosen the four captive screws securing the ProFlow printhead mecha-
nism to the print carriage using a 4mm Allen key. Carefully remove the
mechanism from the print carriage.
Fitting Squeegee
Drip Tray
The following procedure details how to fit the squeegee drip tray to the
machine:
1. Slide the slot in the drip tray onto the bearing on the drip tray guide shaft.
2. Secure the drip tray to the actuator piston using the thumbscrew.
3. Open the speed control valves on the drip tray actuator.
Captive Screw (in 4 positions)
Fitting the Squeegee Drip Tray
1 Squeegee Drip Tray Thumbscrew 3 Squeegee Drip Tray
2 Speed Control Valves (in 2 positions) 4 Drip Tray Guide Shaft
