SM-Series SME DB Tape Feeder User's Manual
2.1.2. Fixing the Tape Reel
Fix the tape reel as indicated in the figure paying attention to the winding direction.
In the case of the tape feeder, after inserting the reel into the reel post, insert it into the
groove and secure it.

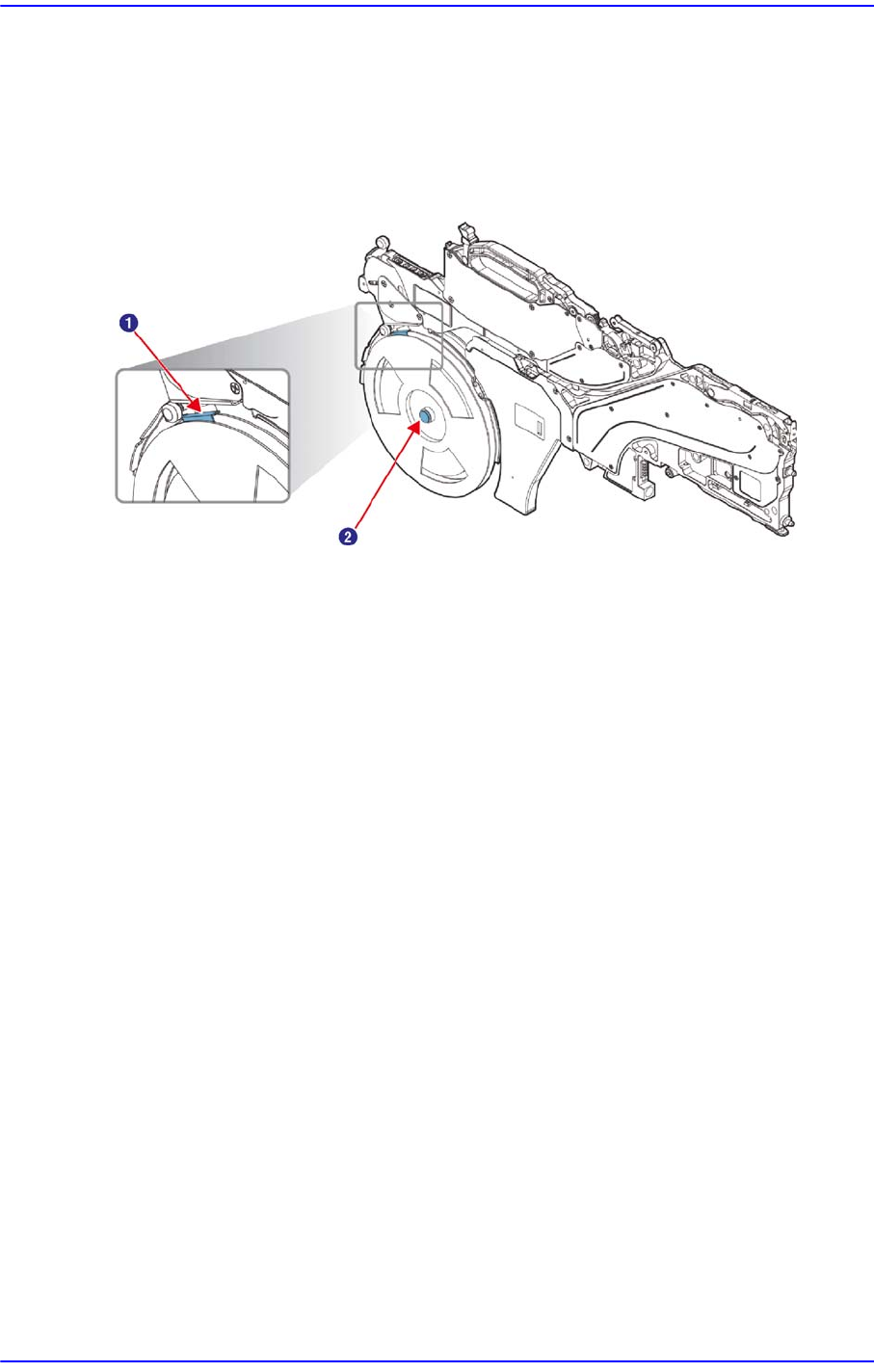

Figure2.2 Locking the tape reel of the 8mm/W4P1 feeder
1: Reel Break
2: Reel Post
2-3
Operation of the Feeder
2.1.3. Installing the component tape and Exit of the carrier tape
Pass the tape through groove A, B, C as shown in the figure below.
Figure2.3 Installing path of the tape
The tape consists of two parts, the upper cover tape and the carrier tape.
Figure2.4 Composition of the tape
1: Upper cover tape
2: Carrier tape
After passing the upper tape and transportation tape between the tape guide slot and main
frame as shown in the figure, strip off about 30cm of the upper cover tape from the end,
Strip off about 35cm of the upper cover tape from the end, and pass it through the tape slit
as shown in the figure. Pass the carrier tape through groove D.
Caution When the distance from the end of the feeding tape to the
pickup position is short, the tape may get caught. Therefore,
ensure that the distance is sufficiently long before use.
2-4
SM-Series SME DB Tape Feeder User's Manual
Figure2.5 Installing the upper cover tape of the feeder( Install the tape through the rear slit )
Figure2.6 Installing the upper cover tape of the feeder ( Install the tape through the front slit )
The transfer tape that has passed ‘D’comes out of the feeder downward as shown in the
following figure.
Caution When a tape reel keeping the parts that generate static
electricity is installed in the tape feeder or when parts are
attached to the upper cover tape, installing the tape reel in
the tape feeder by passing the upper cover tape through the
rear slit of the tape guide may cause damage to parts. Pass
the upper cover tape through the front slit of the tape guide
without fail and install the tape reel in the tape feeder.
