2-5 Operation of the Feeder Figure2.7 Exit of the carri er tape of the 8mm/W4P1 tape feeder Caution In the case of 0402 pa rts, the tape must be installed in th e feeder through the front slit. When installing the tape f…
2-4
SM-Series SME DB Tape Feeder User's Manual
Figure2.5 Installing the upper cover tape of the feeder( Install the tape through the rear slit )
Figure2.6 Installing the upper cover tape of the feeder ( Install the tape through the front slit )
The transfer tape that has passed ‘D’comes out of the feeder downward as shown in the
following figure.
Caution When a tape reel keeping the parts that generate static
electricity is installed in the tape feeder or when parts are
attached to the upper cover tape, installing the tape reel in
the tape feeder by passing the upper cover tape through the
rear slit of the tape guide may cause damage to parts. Pass
the upper cover tape through the front slit of the tape guide
without fail and install the tape reel in the tape feeder.
2-5
Operation of the Feeder
Figure2.7 Exit of the carrier tape of the 8mm/W4P1
tape feeder
Caution In the case of 0402 parts, the tape must be installed in the
feeder through the front slit.
When installing the tape for 0603 parts through the front slit,
use parts that are free of static electricity.
If a part has static electricity, it may cause a pickup error
due to static electricity during its supply.
2-6
SM-Series SME DB Tape Feeder User's Manual
2.1.4. Locking
Move the tape guide down after having sprockets mesh with the transfer slots of the carrier
tape and check that the carrier tape has been properly meshed with the sprockets, with the
tape guide contacting the carrier tape.
Caution Before lowering the tape guide, check whether a chip or
foreign material exists between the tape guide and main
body.
After checking whether sprockets mesh with the transfer
slots of the carrier tape, check whether the carrier tape is
transferred properly.
Ensure that the tape guide and the locker are properly locked.

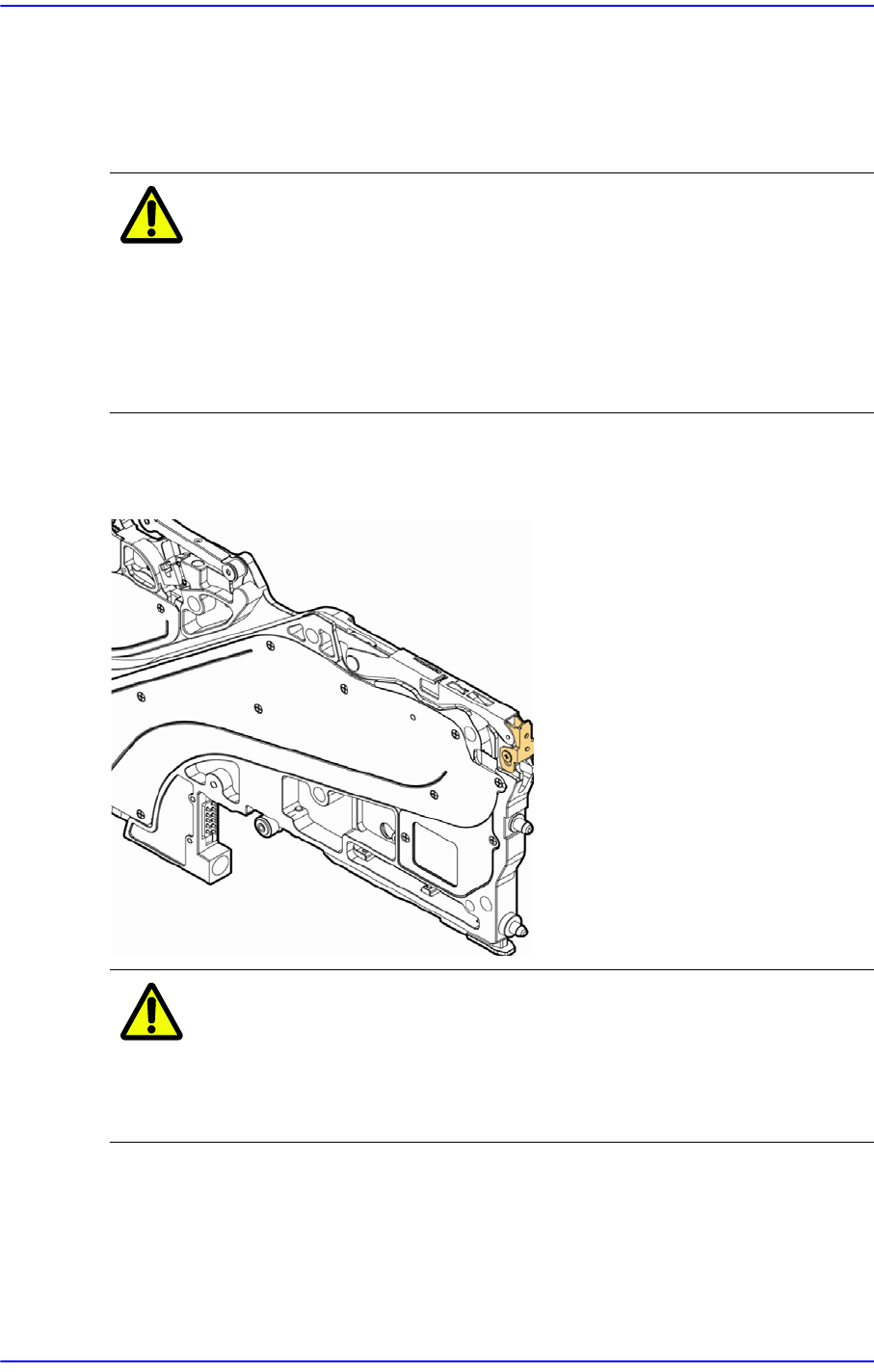

Figure2.8 Checking the locking state of the tape guide and the locker(8mm/W4P1 feeder)
Caution If the tape guide and locker are not firmly secured, tape may
not be supplied or may collide with the main frame.
Therefore, be sure to check that the tape guide is secured
properly.
