3-5
Maintenance
3.2. Maintenance of tape feeder
Caution Perform the maintenance of the tape feeder at a clean and
safe place.
Manipulating the tape feeder by applying excessive force
may damage it. Do not manipulate the tape feeder by
applying excessive force.
Ensure that the components of the tape feeder will not be
lost and missing during maintenance and exercise care so
that fingers are not jammed in the feeder during
maintenance.
Table3.1 Checklist
Division
Moving section or
its state
Section to be checked
Periodic
inspection
Common Tape guide Check whether the tape guide
and scraper are bent and
whether it operates properly.
Day
Sprocket Remove foreign materials on the
loading sprockets.
Day
Drain Gear Drain Gear / Roller Day
Feeder base Removing foreign materials on
the feeder base
Day
Etc Abnormal noise/ dust, etc. Day
Vinyl Box Remove foreign materials in the
vinyl box
1 Months
Etc Check the location flange. 1 Months
Power Supply Status Check the status of wear of the
Probe Pin.
1 Months
Check areas subject
to friction
Lubrication of areas subject to
friction
6 Months
3-6
SM-Series SME DB Tape Feeder User's Manual

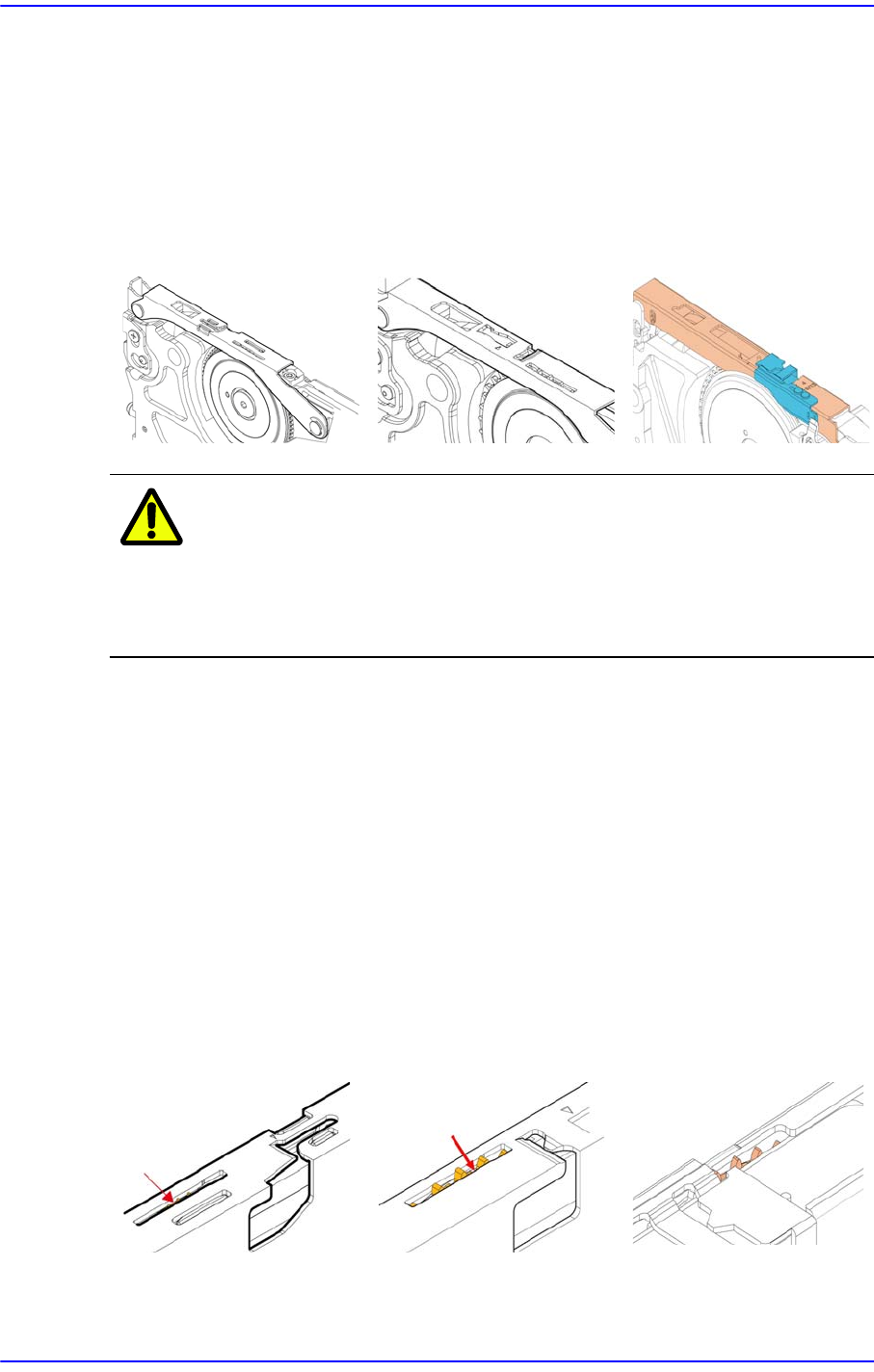

3.2.1. Tape guide and vinyl moving cover
If foreign materials such as chips become jammed between the main frame surface and the
tape guide surface, remove them.
Figure3.5 Removing foreign materials from the feeder’s vinyl moving cover
Caution Exercise care so that the sprocket and tape guide are not
contaminated with grease.
Ensure the area near the part pickup position is always clean and
free of foreign materials.
3.2.2. Removal of foreign matter on the sprocket areas
When supplying parts, if a part broken out from the tape due to feeding error and pickup
error is jammed between sprockets, a pitch error or defective part supply occurs. When
changing a tape, always check this and if foreign material is jammed, remove it.
Particularly, in the case of the feeder feeding a micro part such as 0603 chip, it is not easy
checking the corresponding part with the naked eye. Therefore, check carefully for any
foreign material on .the sprockets.
Figure3.6 Removal of foreign matter on the SME W4P1, 8mm, 12~88mm feeder sprocket areas
(a) W4P1 (b) 8mm (c) 12~88mm
(a) W4P1 (b) 8mm (c) 12~88mm
3-7
Maintenance
3.2.3. Drain Gear
When the drain gear does not work properly, a pickup error may occur since the vinyl tape
of the tape is not peeled. For the SME 8mm/W4P1 tape feeder, unscrew the bolts of the
drain cover and for the SME12~88mm tape feeder, unscrew the bolts of the vinyl box and
remove the vinyl box and remove foreign materials on the drain gear.
Figure3.7 SME 8mm/W4P1 feeder
1: Drain Gear Cover Bolt
Figure3.8 SME 12~88mm feeder
1: Vinyl Box Bolt
