2-14

SM-Series SME DB Tape Feeder User's Manual

2.2.4.1. Adjusting Vinyl Guide Position

It is possible to set the vinyl guide depending on the pocket size of the tape to be used.

Move the (2) vinyl guide while pressing the locker by hand and set the (4)vinyl guide

home of the (1) vinyl guide locker. Then release the force that presses the vinyl guide

locker to secure the vinyl guide.

Note Referring to the (3) pitch indicated on the tape guide, move the vinyl

guide to set the pitch.

Figure2.17 Adjusting Vinyl Guide Position

1: Vinyl Guide

2: Vinyl Guide Locker

3: Pitch

4: Vinyl Guide Groove

2-15

Operation of the Feeder

2.2.5. Fixing the Vinyl Tape

Secure the vinyl tape that passed through the tape guide to the drain gear.

Caution When securing the vinyl tape to the drain gear, exercise

care so that the vinyl tape is not twisted.

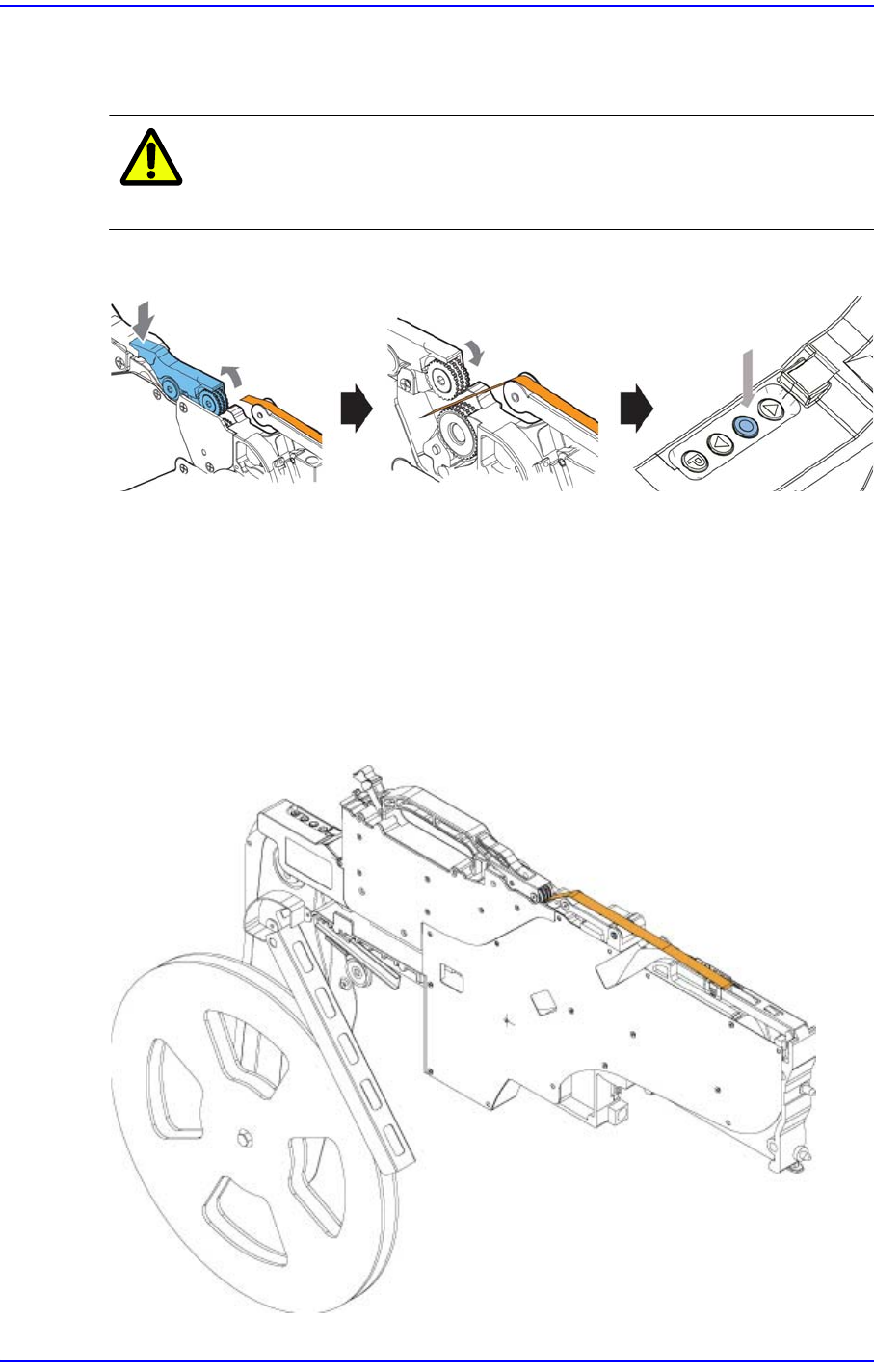

Figure2.18 Secure the vinyl tape of the 12~88mm tape feeder

1) After placing the vinyl tape discharged from the vinyl guide slit over the drain

tensioner, press the drain handle to create a gap between the drain handle and drain

gear.

2) Insert the vinyl tape through the gap between the drain handle and drain gear.

3) Release the force pressing the drain handle to secure the vinyl t

ape and check that the

vinyl tape on the tensioner is not twisted. Then pressing the home button will stop the

vinyl tape discharge motor after pulling the vinyl tape until certain tension is formed

on the vinyl tape by driving the vinyl tape discharge motor.

2-16

SM-Series SME DB Tape Feeder User's Manual

2.2.6. Part pick-up point

A line is indicated on the tape guide as shown in the following figure for the purpose of

using to easily perform a visual check whether the pickup point of the supplied part is

correct visually if a part pickup error occurs.
