2-16
SM-Series SME DB Tape Feeder User's Manual

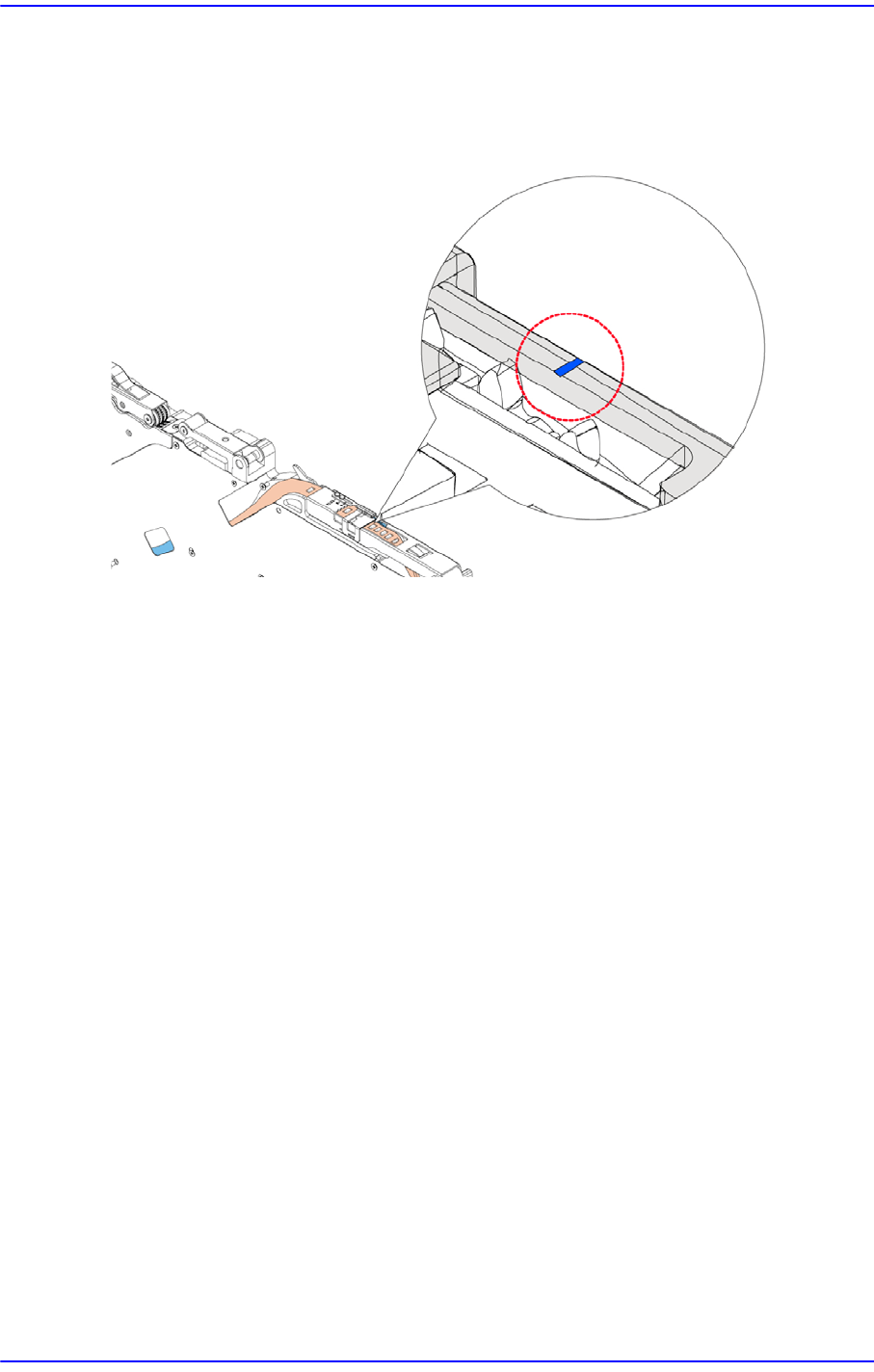

2.2.6. Part pick-up point
A line is indicated on the tape guide as shown in the following figure for the purpose of
using to easily perform a visual check whether the pickup point of the supplied part is
correct visually if a part pickup error occurs.
2-17
Operation of the Feeder
2.3. Feeder Installation
2.3.1. Cautions before installing the feeder
Before installing a tape feeder on the feeder base, check the following:
Warning When installing the tape feeder, check whether the machine
is in the 'IDLE' state. Otherwise, the user may be seriously
injured.
Caution Since the tape feeder is heavy, transport it holding its handle and
installation guide with both hands.
When installing a tape feeder on the feeder base, exercise care so
that the items of clothing do not become jammed.
Ensure that foreign materials do not exist on the location flange
and Prob Pin.
In the case of the SME 12~88mm feeder, it is recommended that
more than two persons transport it.
2-18
SM-Series SME DB Tape Feeder User's Manual
2.3.2. Feeder installation procedure
Each slot of the feeder base has its own slot number. Before installing the tape feeder,
check the number of the slot in which the feeder is to be installed.
Install the tape feeder on the feeder base in the following manner:

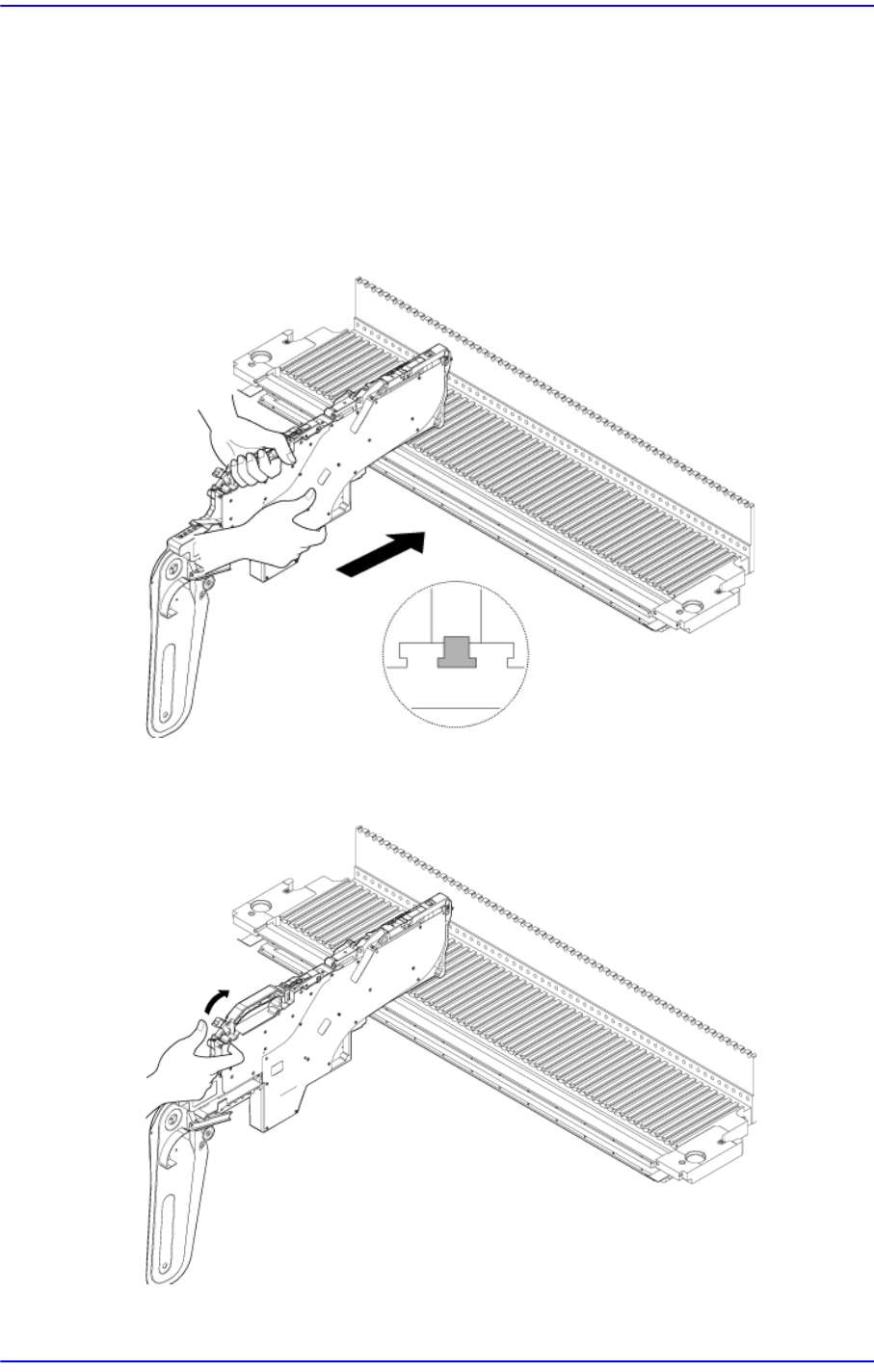

1) Holding the tape feeder as shown in the following figure, push the tape feeder in
slowly until the install guide of the tape feeder comes into contact with the vertical
plate of the feeder base:
2) Secure the tape feeder to the feeder base completely by pushing the clamp lever of the
tape feeder forward as shown in the following figure:
