4.2.5
设定背光
在设定的时间内不触摸画面时，背光灯自动灭灯。
•

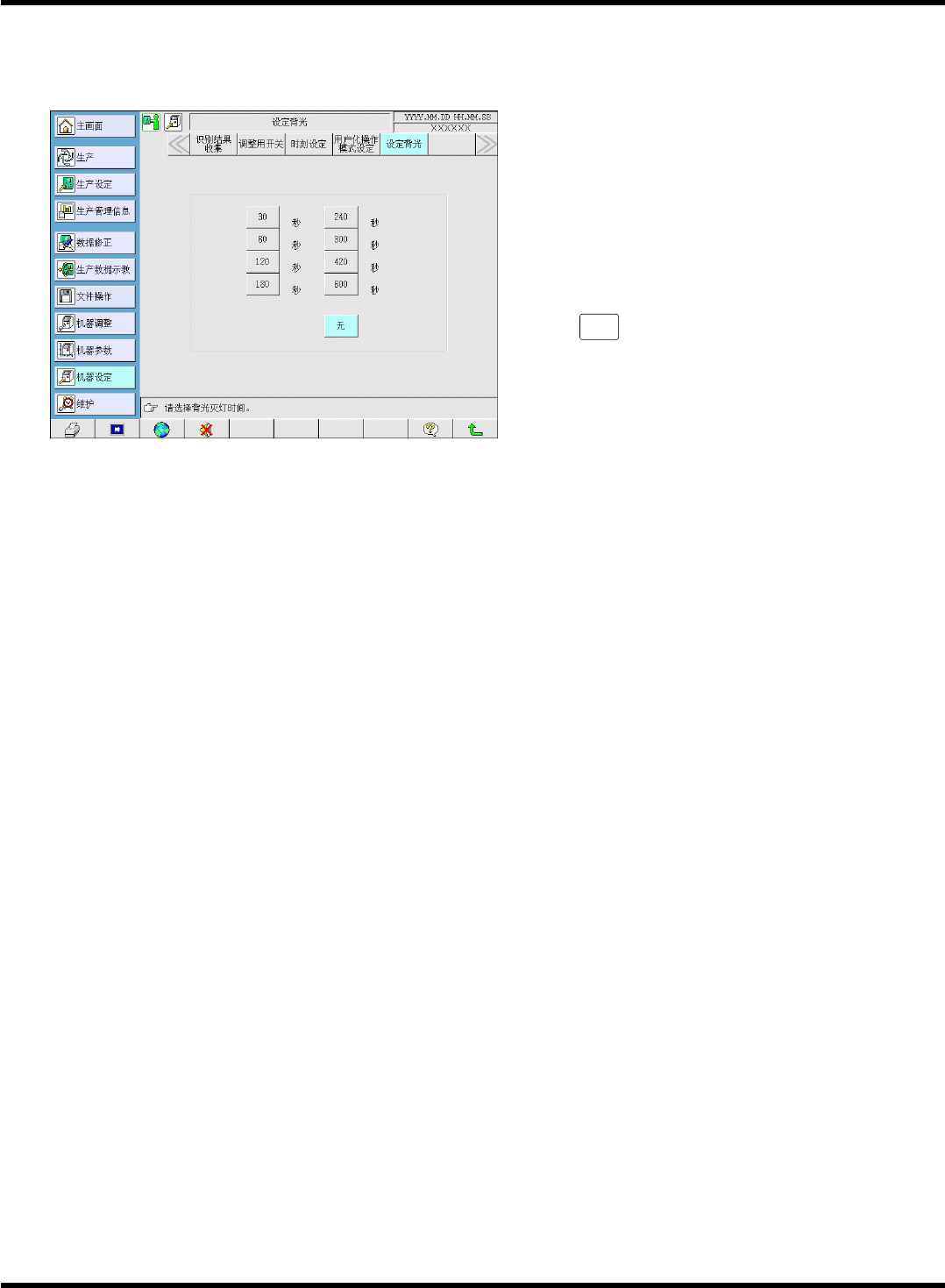

在背光灯设定画面上，请按表示到背光灭灯时
间为止的秒数按钮，设定灭灯时间。
另外，不使用背光灯灭灯功能时，按
[
无
]
。
∗
背光灭灯时间是在背光灯设定画面退出时设
定。
如果只按秒数按钮，则不能设定。
∗
要使灭灯的背光灯再次亮灯时，按操作面板的
LIGHT ON
。
EJP1A-Ma-0021
EJP1A-C-RMA04-A01-00
SP18P-L
参考手册
4.2
机器设定
Page 4-20
=
备忘录
=
EJP1A-C-RMA04-A01-00
SP18P-L
参考手册
Page 1
