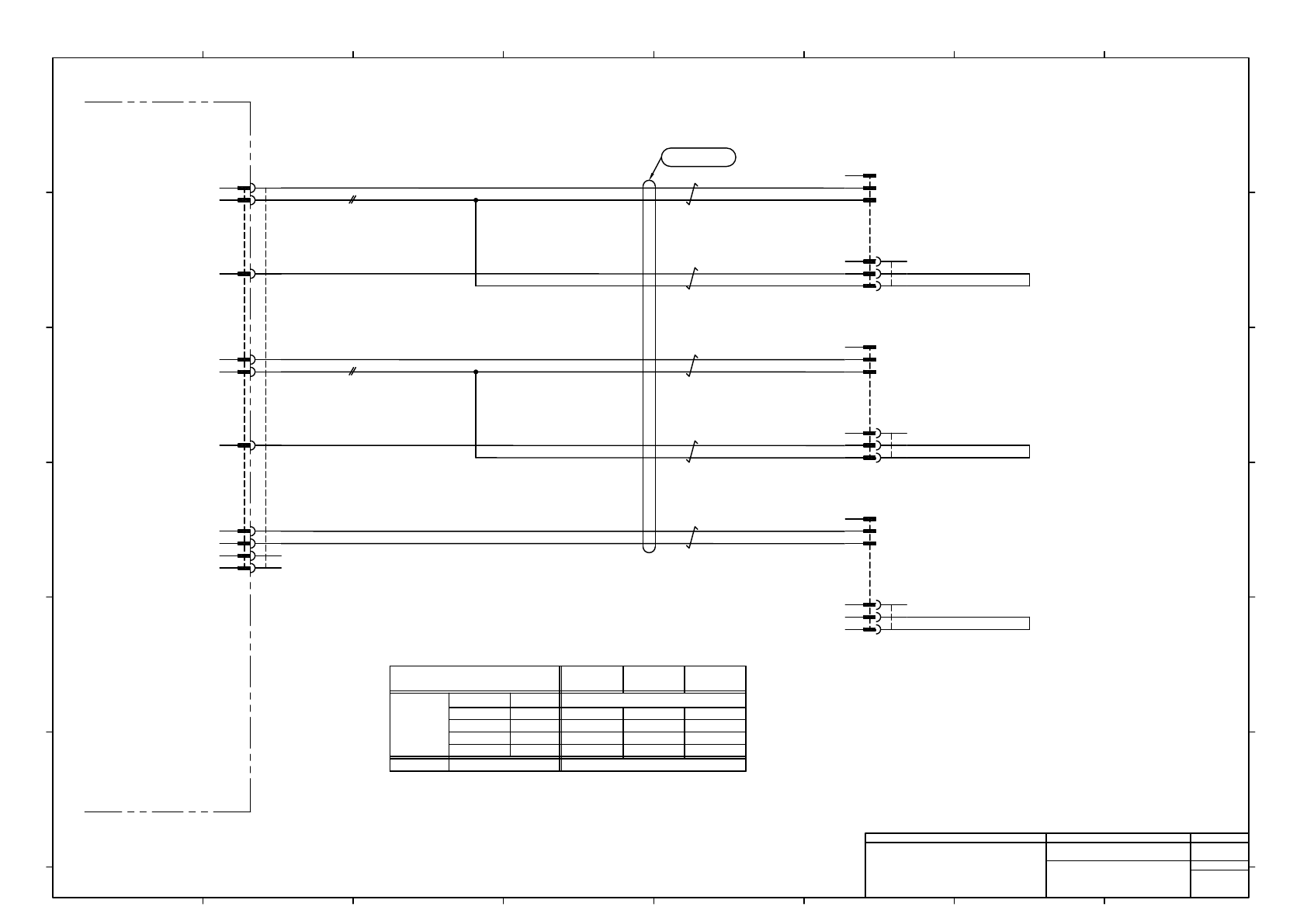

3. CONTROL BOX DIA G R A M OPTI ON コントロール BOX 配線図オプショ ン 3-1 TRA Y FEEDER BOX トレイフィーダーBOX EJM 1EB-10-301- 00
MTKC003514AC
MOLEX
1B1223R
5557-10R-210
7
3
8
6
2
4
5
1
MOLEX
1B1223P
5559-10P-210
7
3
8
6
2
4
5
1
Transfer Specification (Flow Direction)
Open :Standard Flow
Short :Reverse Flow
Transfer Specification Bit1
Transfer Specification Bit0
Transfer Specification Bit2
IN223
G24
IN224
IN225
G24
IN226
IN227
G24
UL#24 80/300-0.2mm2 BU
UL#24 80/300-0.2mm2 BU
UL#24 80/300-0.2mm2 BU
BN/WH
BN
YE/WH
YE
GN/WH
GN
BK/WH
BK
RD/WH
RD
2464C(BPF)VVP AWG#24×5P-B
Sumitomo 3M
B1227P
37306-3163-0M0 FL
B3
B2
B1
A3
A2
A1
Sumitomo 3M
37103-3163-000FL
3
2
1
Sumitomo 3M
B1225P
37306-3163-0M0 FL
B3
B2
B1
A3
A2
A1
Sumitomo 3M
37103-3163-000FL
3
2
1
Sumitomo 3M
B1223P
37306-3163-0M0 FL
B3
B2
B1
A3
A2
A1
Sumitomo 3M
37103-3163-000FL
3
2
1
Note1)
Note1) Connector pin arrangement is not sequential.
MTKA005506**：
Main Body Wiring：NPM-TT2
Conveyor Type
Transfer
Specification
Flow Direction IN223
Bit0
Bit1
Bit2
Bit3
IN224
IN225
IN226
IN227
Spare Connector
Spare Input
Conveyor None
TT2 PC Dual
Conveyor
Standard Flow：0 Reverse Flow：1
※Spare input for flow direction(IN223) use only.
※）About transfer specification. （0：Open , 1：Short）
Standard Flow：1 Reverse Flow：0
0
0
0
1
0
0
0
1
0
0
1
TT2 M Dual
Conveyor
1
Spare Input
Transfer Specification Bit3
10
9
10
9
2464-1061/ⅡA(PF) LF 5P×24AWG
2
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1
2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.
Dual Conveyor Wiring:NPM-TT2
(Transfer Specification Setting)
MTKA005518+015AC
P015
3.
CONTROL BOX DIAGRAM OPTION
コントロール BOX 配線図オプション
3-1 TRAY FEEDER BOX
トレイフィーダーBOX
EJM1EB-10-301-00
