2 Machine Basic Overview
2.4 Machine Configuration
Technical Training FSE SIPLACE TX-Series 01/2018 19
2.4 Machine Configuration
TX 1 Machine Configuration
One gantry with 1 head type:
●
CPP Head – camera type 30 and station-
ary camera type 33 on location 1.
●
C&P20 P Head camera type 23 or 41
●
Twin Head stationary camera type 33 or
25
●
JTF-ML (only Location1)
●
Reject Tray (only Location1)
Table position:
●
Location 1: Outer
●
Location 2: Inner
Gantry upgrade to TX2 possible
Feeder Count With C&P20 P With CPP With Twin Head
Location 1 38 40 40*
Location 1 with JTF ML - 28 28
Location 2 38 40 40*
TX 2 Machine Configuration
Two gantries with same or different head
types possible:
●
C&P20 P / C&P20 P camera type 23 or 41
●
TH stationary camera type 25 or 33
/ CPP camera type 30
●
CPP / CPP camera type 30
●
CPP** / CPP** camera type 30 and sta-
tionary camera type 33 on location 1
●
JTF-ML (only Location1)
●
Reject Tray (only Location1)
Table Position:
●
Location 1: Outer
●
Location 2: Inner
Feeder Count With C&P20 P With CPP With Twin Head
Location 1 38 40 40*
Location 1 with JTF ML - 28 28
Location 2 38 40 Not Applicable
*The right segment cannot reach 3 tracks on the left side of the table; the left segment cannot
reach 3 tracks on the right side of the table.
**The CPP Head has a low and a high installation position (with low position a stationary compo-
nent camera is not possible).
2 Machine Basic Overview
2.4 Machine Configuration
20 Technical Training FSE SIPLACE TX-Series 01/2018
TX 2i Machine Configuration
Two gantries with same head types:
●
C&P20 P / C&P20 P camera type 23 or 41
●
CPP / CPP camera type 30
●
CPP_L / C&P20 P camera type 30 / 23 or
41
Table Position:
●
Location 1: Inner
●
Location 2: Inner
Other:
●
No stationary camera
●
No Tray units (JTF)
Feeder Count With C&P20 P With CPP
Location 1 38 40
Location 2 38 40
TX 2 micron 20/25 µm Machine Configuration
Two gantries with same or different head
types possible:
●
C&P20 M2 / C&P20 M2 camera type 41
●
CPP M_H_L / CPP M_H_L camera type
45
●
X-fiducial bar
●
No stationary cameras
●
JTF-ML on Loc.1
Note:
When JTF is used the CPP head must be
mounted in the high position.
Table Position:
EOL application
●
Location 1: Outer
●
Location 2: Inner
Feeder Count With C&P20 M2 With CPP M CPP M with JTF_ML
Location 1 38 40 28
Location 2 38 40 40
TX 2i micron 20/25 µm Machine Configuration
Two gantries with same head types:
●
C&P20 M2 / C&P20 M2 camera type 41
●
CPP M_L / CPP M_L camera type 45
●
X-fiducial bar
●
No stationary cameras
Table Position:
Speed application
●
Location 1: Inner
●
Location 2: Inner
2 Machine Basic Overview
2.5 Special Features
Technical Training FSE SIPLACE TX-Series 01/2018 21
Feeder Count With C&P20 M2 With CPP M
Location 1 38 40
Location 2 38 40

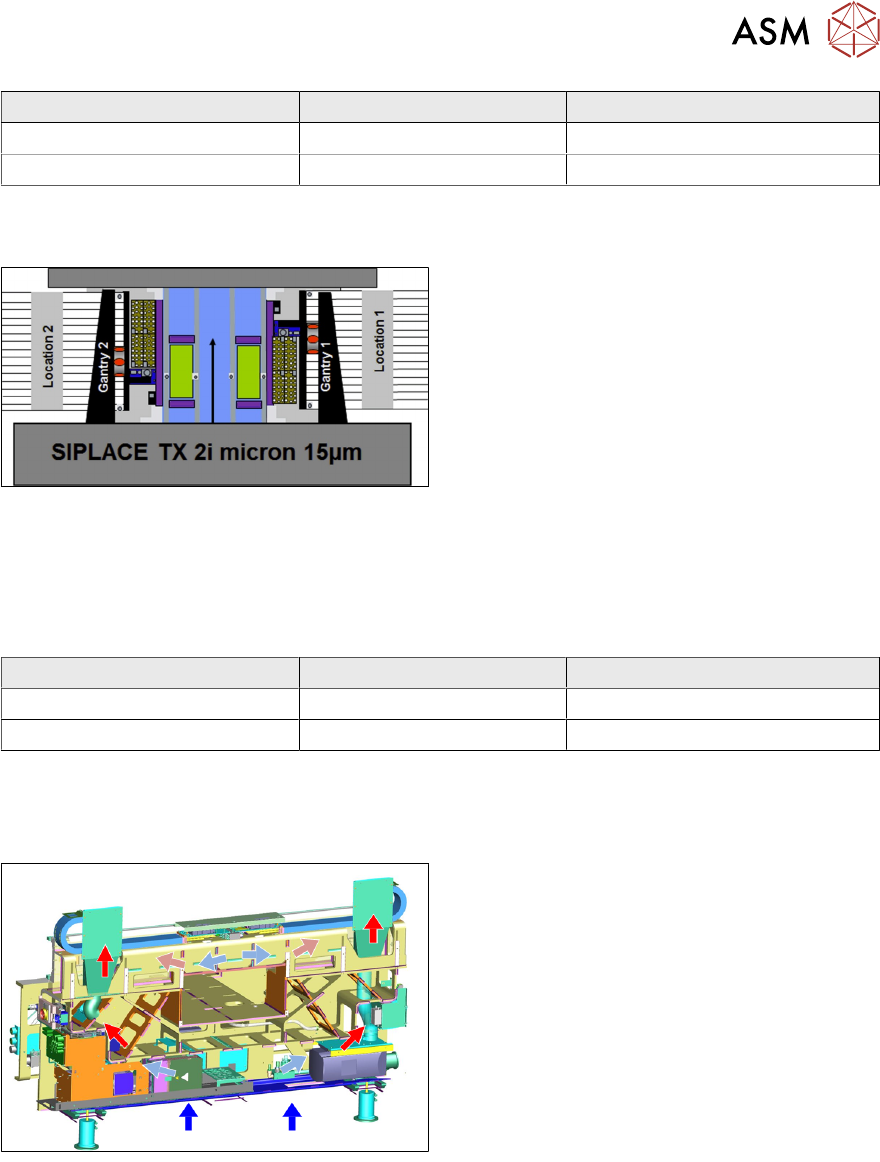

TX 2i micron 15 µm Machine Configuration
Two gantries with same or different head
types possible:
●
C&P20 M2 / C&P20 M2 camera type 41
●
CPP M_L / CPP M_L camera type 45
●
Stiffened lifting table
●
Basic pack vacuumtooling and vacuumtool
with Y-fiducial bar
●
X-fiducial bar
●
No stationary cameras
Table Position:
Speed application
●
Location 1: Inner
●
Location 2: Inner
Feeder Count With C&P20 M2 With CPP M
Location 1 38 40
Location 2 38 40
2.5 Special Features
SIPLACE TX Thermal Management
Process exhaust air:
●
Warm air separated from processing area
●
Outlet of exhaust air in centralized position
●
Fans status monitored by software
TX micron Special Features
●
The TX micron machines will be equipped with two X fiducial bars parallel to the conveyor
close outside of the conveyor rails on the standard conveyor. On each location one specific
calibration jig holder and a separate zero point fiducial.
●
TX micron 15µm with the option “Basic pack vacuum tooling” and the license for 15µm / 3s
will be deliever with stiftness lifting table.
