SIPLACE Recovery Installation on Celsius W380 10/2011 Edition
After success, you will see the following screen.
Figure 4-3: After Installation – Initial Screen
► Click the Next button to continue.
Figure 4-4: Language and region
18
SIPLACE Recovery Installation on Celsius W380 10/2011 Edition
► Select the appropriate region.
► Select the appropriate language.
► Select the appropriate keyboard layout. For SIPLACE Line Computers, the default is US.
► Click the Next button to continue.

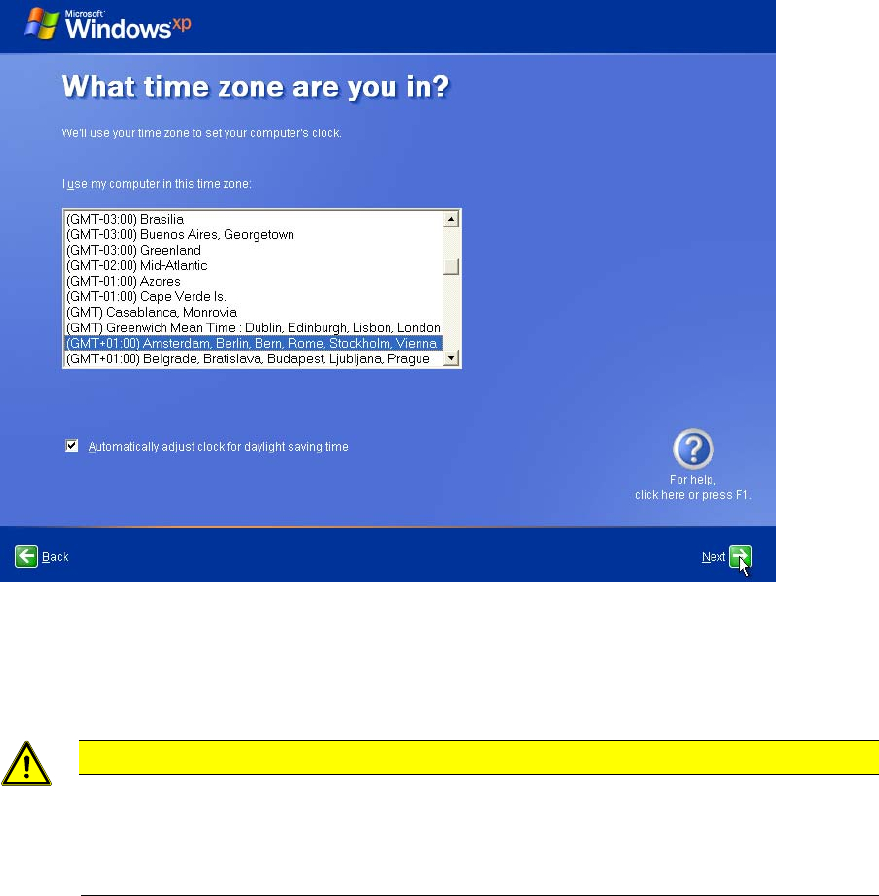

Figure 4-5: Time Zone Settings
► Choose the appropriate time zone.
► Click the Next button to continue.
CAUTION
Server and Client must be uniform
For proper Windows authentication, date and time of all involved computers must not
differ too much! Additionally, some SIPLACE products like OIS require the time zone to
be identical on all computers!
19
SIPLACE Recovery Installation on Celsius W380 10/2011 Edition

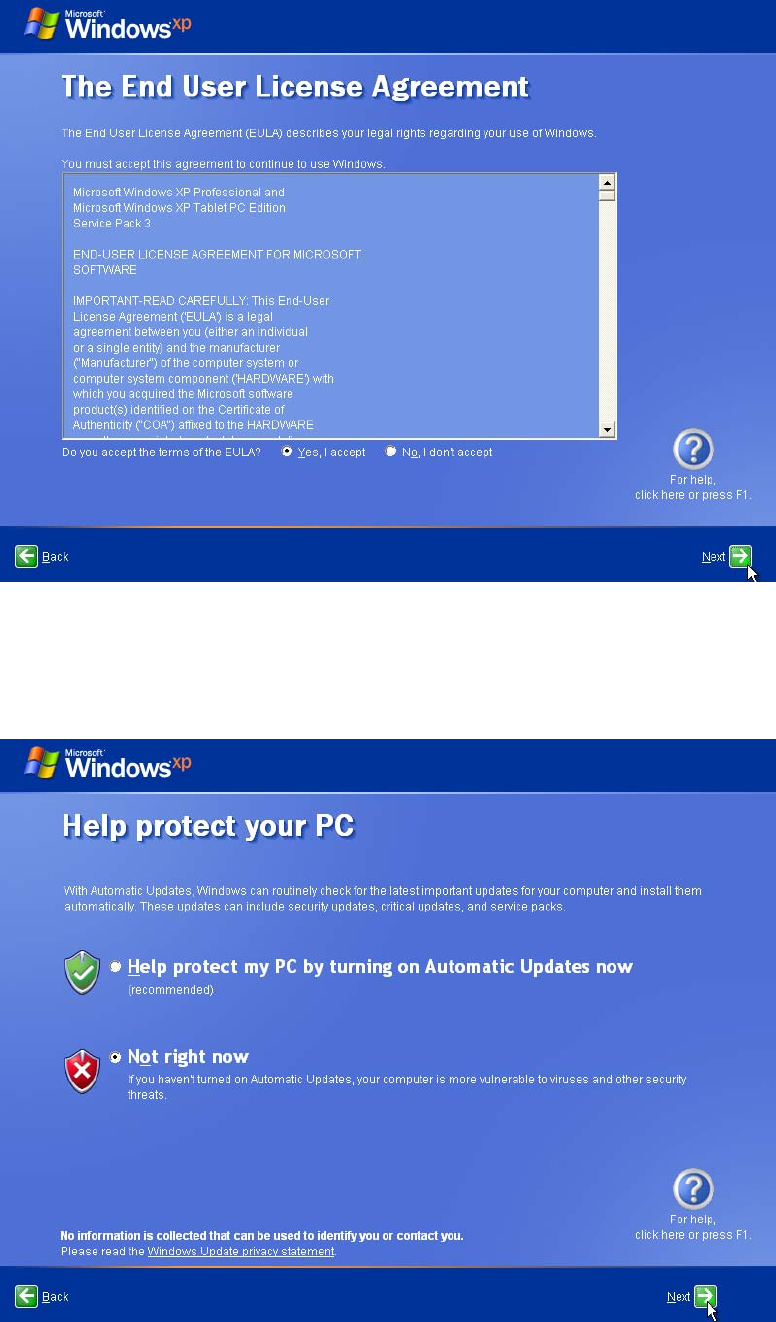

Figure 4-6: License Agreement
► After reading the license agreement, click the radio button besides Yes, I accept to accept the
license
► Click the Next button to continue.
Figure 4-7: Windows Update Settings
► Since we don’t use the automatic update feature in our SIPLACE workgroup environment,
select the Not right now option and click the Next button.
20
