SIPLACE Recovery Installation on Celsius W380 10/2011 Edition
NOTICE
Ensure that the Computer is booted from DVD
If you don’t see this screen, it might happen that you accidentally booted from hard disk!
Don’t mix up any welcome message from already installed Operating Systems with the
SIPLACE Recovery Installation!
Figure 3-2: Existing Data deleted Warning
► After you’ve ensured all necessary data being backed up, click the Yes button to start the
Operating System Recovery.
The installation procedure may take 20 minutes or more.
8
SIPLACE Recovery Installation on Celsius W380 10/2011 Edition

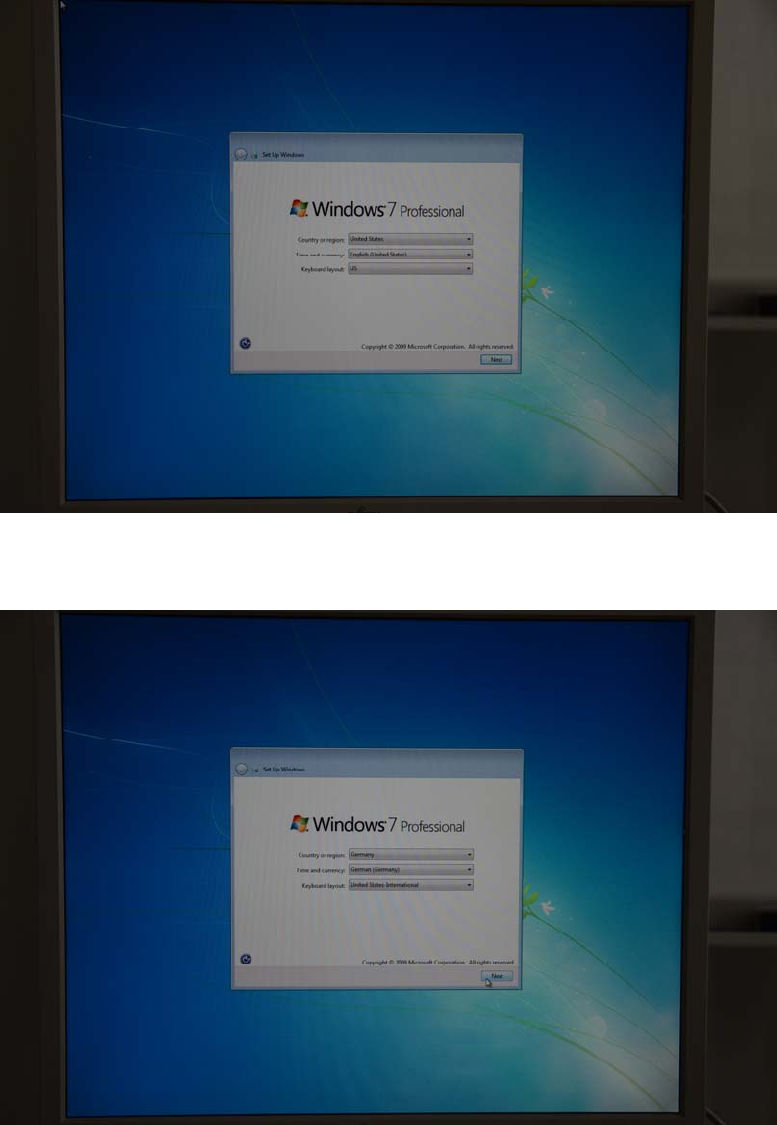

After success, you will see the following screen.
Figure 3-3: After Installation – Initial Screen
Figure 3-4: Language and region
► Select the appropriate country or region.
► Select the appropriate time und currency format.
► Select the appropriate keyboard layout. For SIPLACE Line Computers, the default is US.
► Click the Next button to continue.
9
SIPLACE Recovery Installation on Celsius W380 10/2011 Edition
Figure 3-5: Account- and Computername
► Enter the account name SIPLACEAdmin.
► Enter the name for the computer.
► Click the Next button to continue.
NOTICE
Ensure valid Computer Name
Please choose the computer name carefully. Some products, like SQL Server strongly
depend on the computer name and may stop working when you change it afterwards!
Figure 3-6: Password for specified account
► Enter the password for the SIPLACEAdmin account as specified in the technical information
TI2008-04V08.
10
