SIPLACE Recovery Installation on Celsius W380 10/2011 Edition

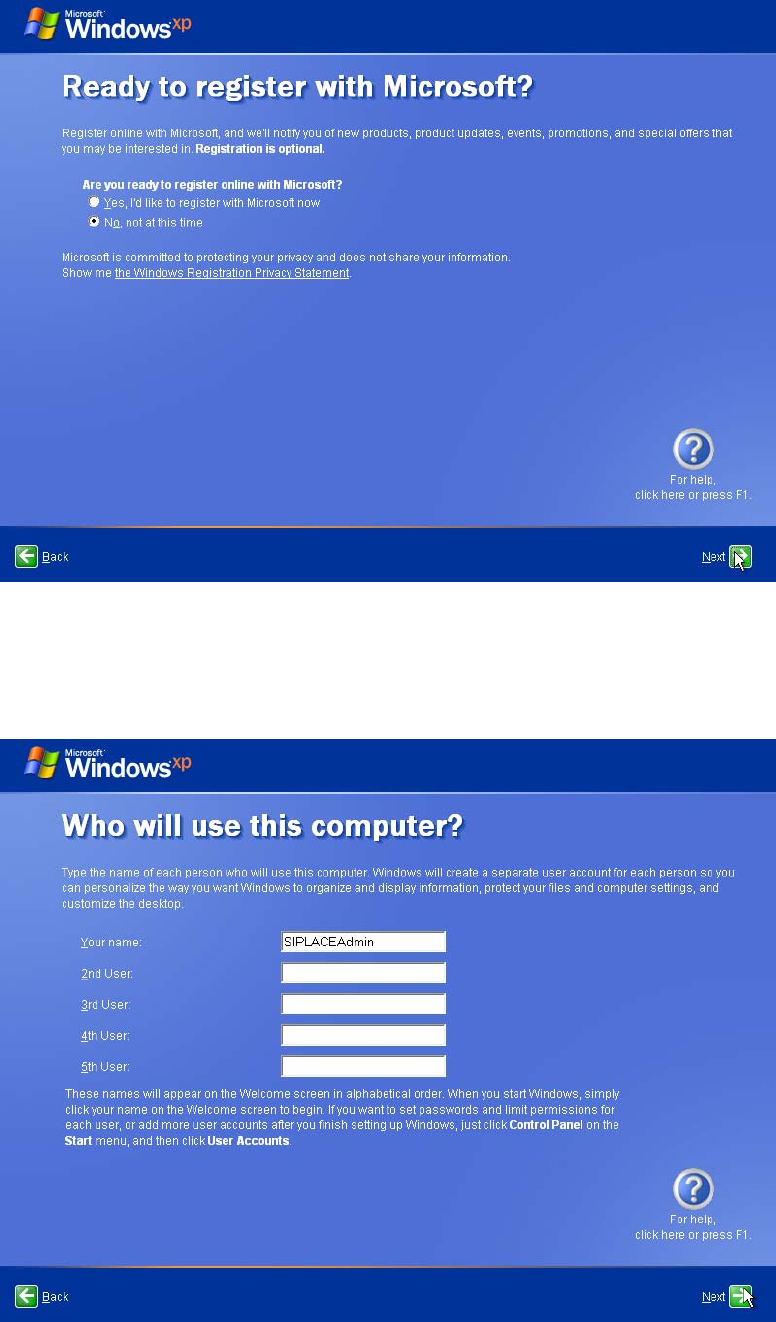

Figure 4-15: Register screen

► Since we don’t have an Internet connection, we select No, not at this time and click the Next

button.

Figure 4-16: Account specification

► Enter the SIPLACEAdmin account.

► Click the Next button to continue.

SIPLACE Recovery Installation on Celsius W380 10/2011 Edition

CAUTION

Account with empty Password created

Since Windows XP Setup doesn’t allow setting a password for the given account(s), you

have to set it manually after installation! This is described in the documentation

“Required Steps before using Support Media”, item no. 00197185-xx.

Figure 4-17: Finish dialog

► Click Finish to finalize Windows Setup.

Windows will continue with preparation and reboot.

SIPLACE Recovery Installation on Celsius W380 10/2011 Edition

After a while, a message similar to the following picture will be shown.

Figure 4-18: SIPLACE Network Configuration screen

► Verify and enter the correct IP configuration for your SIPLACE LAN connected network card

(Connection to SR)

► Click the OK button.

After a while the system will initiate a reboot and log you in automatically. You’ve completed the

main steps for installation.

CAUTION

Before you continue

Before you continue preparing the system with Support Media, ensure that you check the

configuration as described in the document “Required Steps before using Support

Media”, item no. 00197185-xx.
