Programmer's Manual | 9

2.2. Sub-Menu

Thesub‐menusofSPCPlus™arelocatedattheverybottomofthemainmenu;theyareunderthe

mainmenu.Thesub‐menucategoriesvarypermainmenu.

Note: Homein the main menuhasmost ofthe sub‐menus;the sub‐menu inChapter 5 ofthis manual

generallymeansthesub‐menuunderHome.

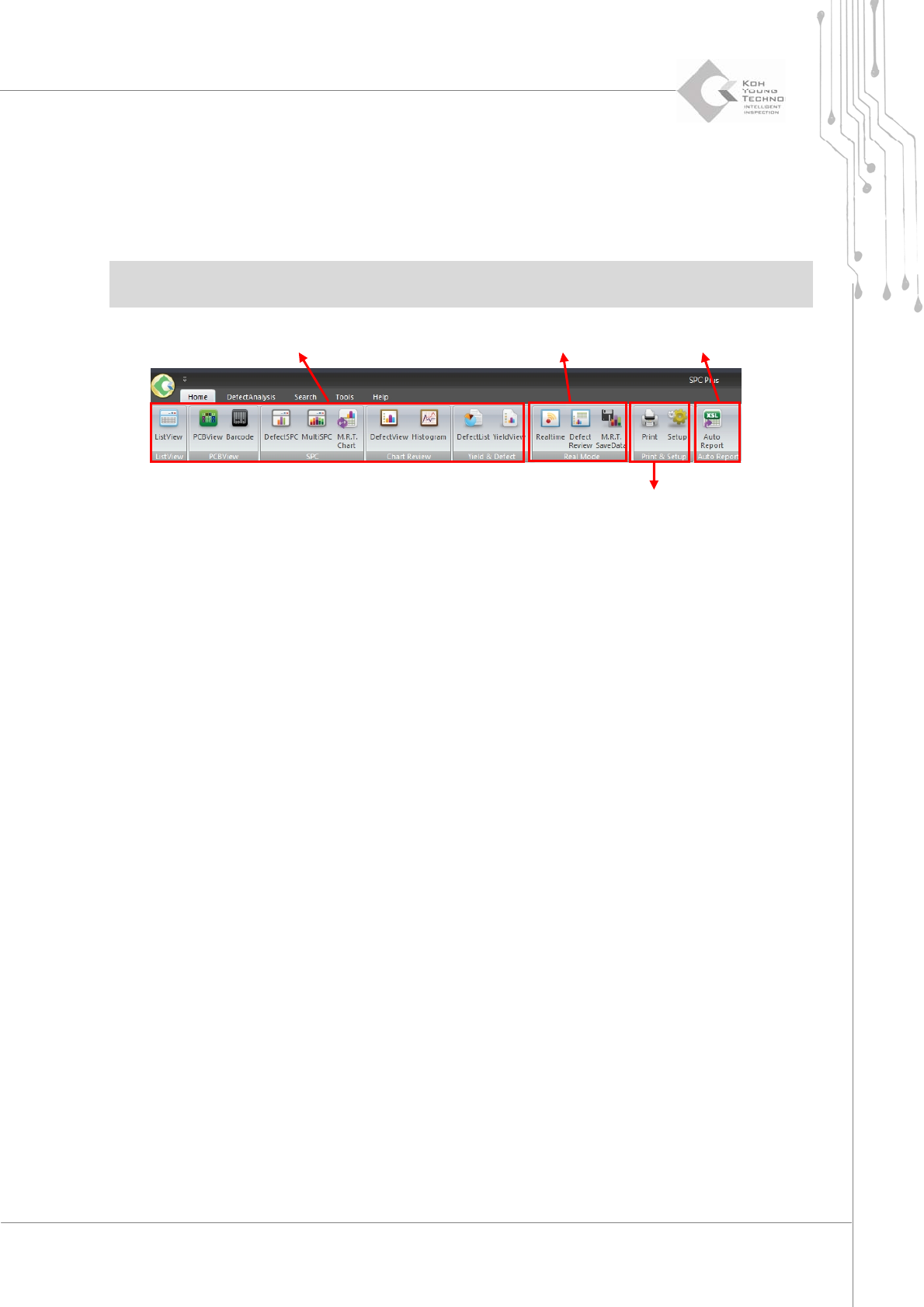

Figure 2-3. Sub-Menus Under the Home Menu

Thefigureaboveisagroupofsub‐menusaccordingtotheircharacteristics .Thesub‐menusofSPC

Plus

™

arecategorizedintothefollowing4types :

 Statistics‐relatedmenu:Menuforcalculatingstatist icsordisplayingonthemainscreen

 Real‐tim equerymenu:Menuforcheckingtheworkingequipmentstatusinrealtime

 Setuptool:ToolprovidingsetupsrelatedtoSPCPlus™andprintingfunction



Auto Report: Menu for conv erting and printing  or saving the inspection results by

connectingtoExcel®2007

2.2.1. STATISTICS-RELATED MENU

Thestatistics‐relatedmenuhasthefollowing10viewmenus:

 ListV iew

 PCBV iew

 Barcode

 DefectSPC

 Multi‐SPC

 MRTChart

Statistics-related

Real-time Execution Menu

Auto Report

Setup tool

Programmer's Manual | 10

 DefectView

 Histogram

 DefectList

 YieldView

Note:See3.SPCPlus™FunctionsinChapte r5formoredet ails.

Note: PCBView, DefectView, DefectSPC, Multi‐SPC, and Histogram must assign the statistical range in

ListViewtousethem.

Note:MRTChartcanbeusedonlybyhavingdatasavedin MRTSaveData.

2.2.2. REAL-TIME QUERY MENU

Thereal‐timequerymenuhas thefollowing3viewmenus:

 Realtime

 DefectReview

 MRTSav eData

Category Description

Real time

Queries the current processing inspection status in real time

DefectReview

Queries defect PCB information in buffer

MRT SaveData

Saves data shown in Multi-Real Time

2.2.3. SETUP TOOL

Thesetuptoolhas thefollowing2viewmenus:

 Print

 Setup

Category Description

Outputs the current screen to a printer

Setup

Sets up an SPC Plus™™ work environment

Programmer's Manual | 11

2.2.4. AUTO REPORT

AutoReporthasoneviewmenu.

Category Description

Auto Report

Converts and prints the inspection results by condition in Excel

2007 format

Note:Thismenumust beusedwithExcel

2007.Itisnotcompatiblewithotherversions.

2.3. Main Screen

The main screen of SPCPlus™ displays different screens per view menu; it is selected from the

sub‐menu.

Note:SeeSection3.SPCPlus™ FunctionsinChapter5fordetailsontheviewmenu.

Figure 2-4. Main Screen
