Programmer's Manual | 26

3.6. MRT Chart (Multi-Real-Time Chart)

MRTChartis thefunction of querying the valuesdisplayedonthe Multi‐Real‐TimeChartwithout

limitationbyloadingthesaveddata.

3.6.1. TWO MODES

MRTCharthasthefollowingtwomodes:

 One‐ChartMode

 Six‐ChartMode

Note:Thedescriptionsin thismanualarebasedontheOne‐Chartmode.

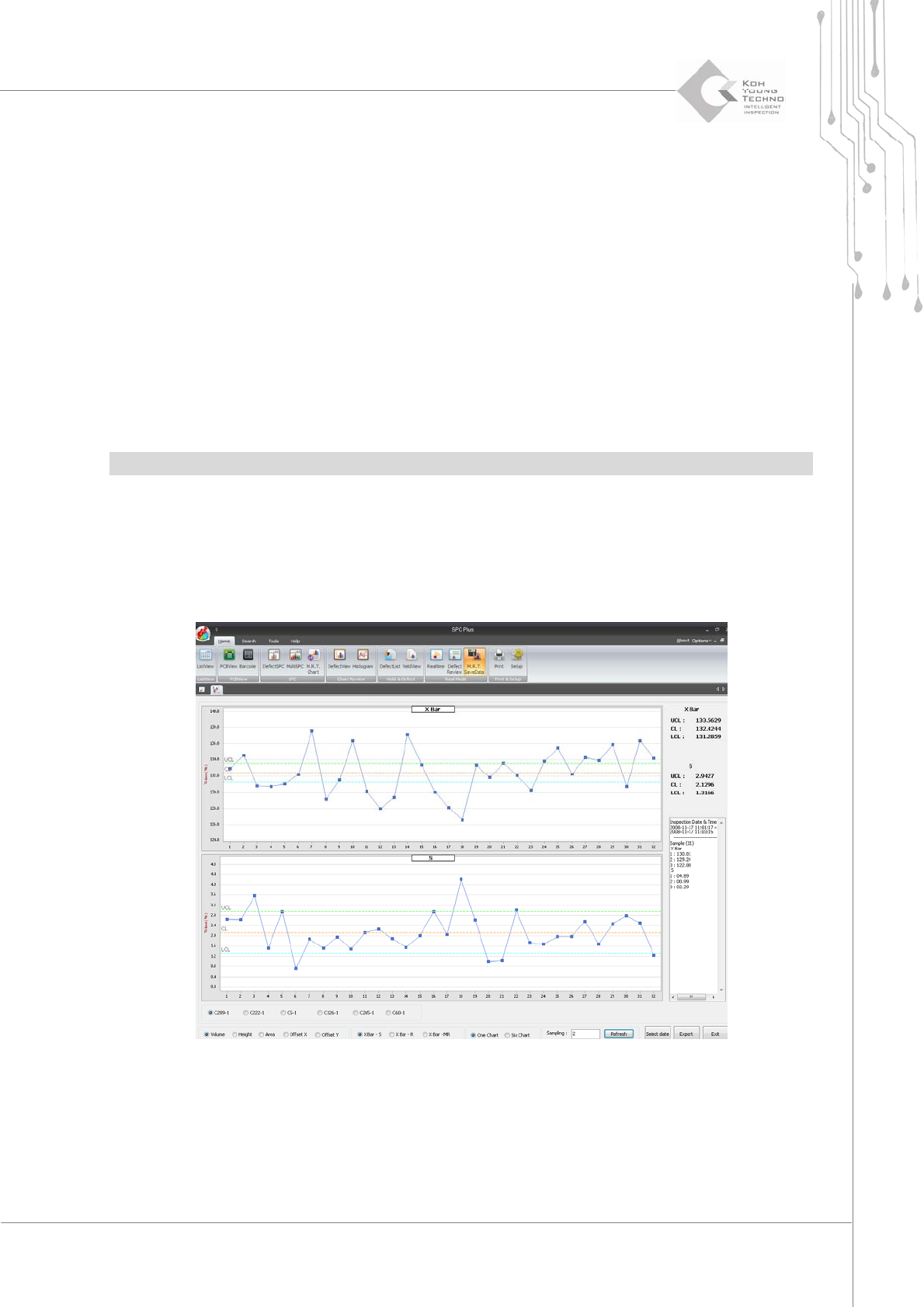

3.6.1.1. One-Chart Mode

This mode is used when datum from 6-chart data is zoomed in and queried on the main screen.

Select One Chart from the selection window at the bottom of the MRT Chart screen.

Figure 3-10. Multi-SPC – One-Chart Mode

Programmer's Manual | 27

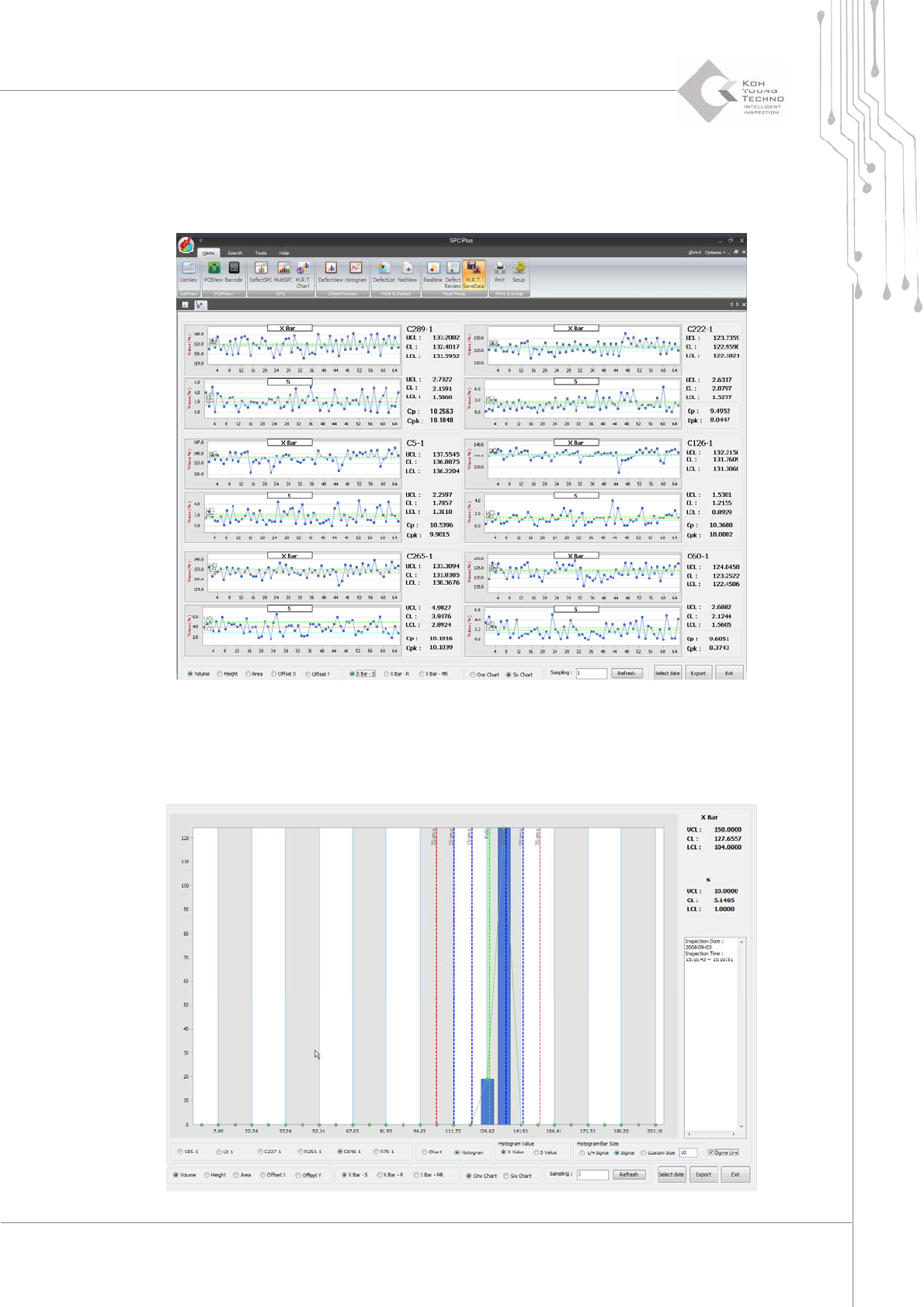

3.6.1.2. Six-Chart Mode

Thismodeisusedforqueryingtheentiredataof6chartsonthemainscreen.SelectSixChartfrom

theselectionwindowatthebottomoftheMRTChartscreen.

Figure 3-11. Multi-SPC – Six-Chart Mode

3.6.2. ADDING X VALUE & S VALUE HISTOGRAM

Programmer's Manual | 28

Category Description

Chart/Histogram Selects viewing either in chart or histogram

Histogram Value

From the X Value and S Value, selects a corresponding category

 X Value: Volume, Area, and Height value

 S Value: Standard deviation

Histogram Bar Size Selects the range of histogram

List Export Saves the currently displayed chart values in file format

ToaddanXVALUEoranSVALUEHistogram,proceedwiththefollowing:

1. Select Histogram from the selection window at the bottom of MRT Chart screen.

2. From X Value and S Value, select the desired category.
