 Yieldchart:Displaystheyieldrateofthelast24hours

 Processcapabilityindexchart:Displaystheprocesscapabilityindexbysettingtherecently

inspected100PCBwith10astheunit

3.12.2. REAL-TIME 3D

Real‐tim e3DistheReal‐timescreenmodefocusedonobtainingthelastPCBinspectionresultsin

realtime.

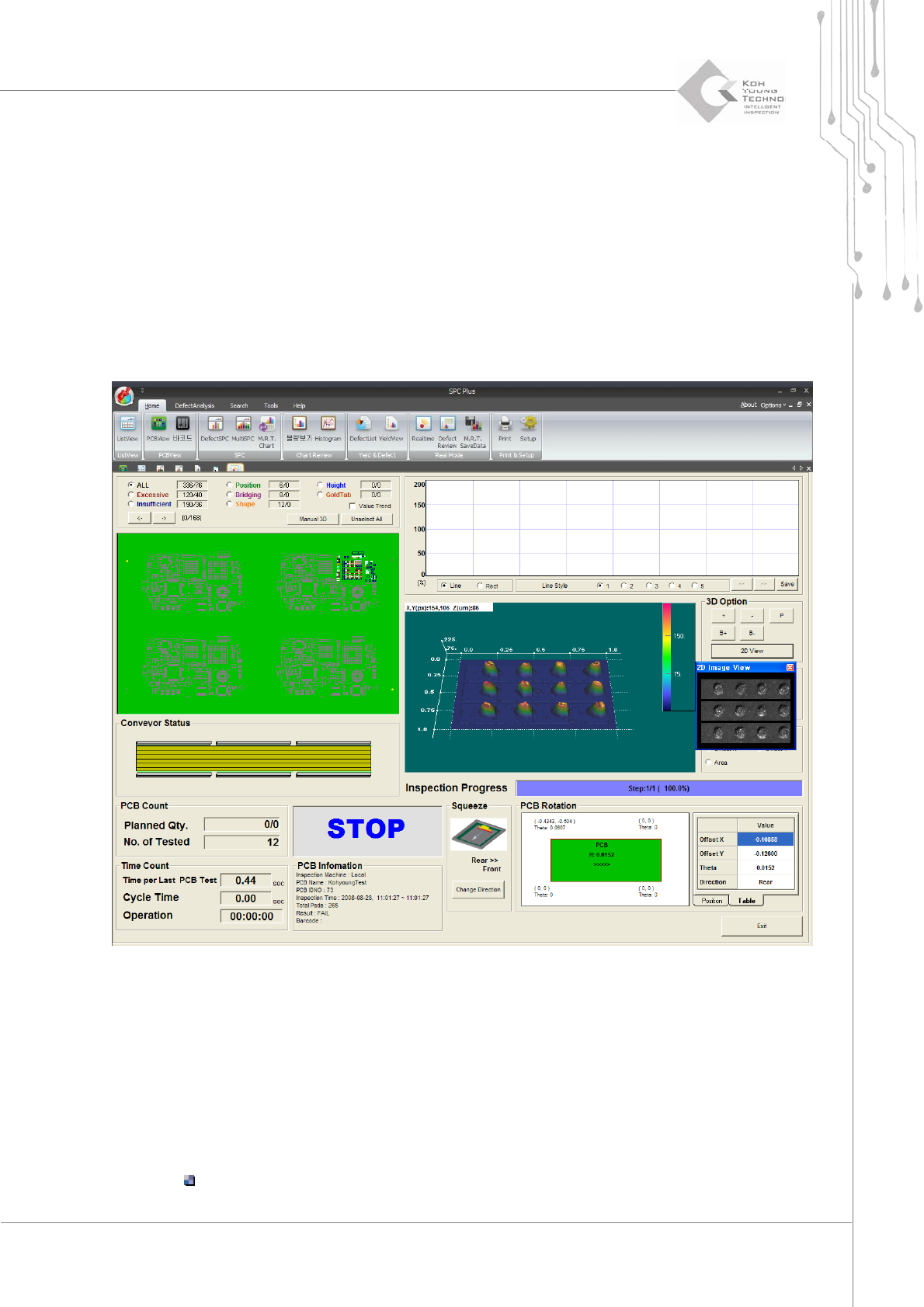

Figure 3-19. Real time (2) – Real-Time 3D

Forthedetailsof Real‐time3D,seethefollowing:

 LastPCBinspectionresult:Displays thelast inspection‐completedPCBinspectionresults

fromtheequipment

 3DView:SelectsapartfromPCBtodisplayin3Dbytotalingtheinspectionresultsofthe

correspondingpartduringeachinspection

Thefigureaboveshowstheorange‐coloredpartofPCBon3Dscreen.

Programmer's Manual | 42

 RotationCheck:DisplaysalevelofthebendfortherecentlyinspectedPCB

Selectingasideratiotoagreatvaluewillzoomintherotationtosearch.

Note:Whenthe3DCapturewindow onSPCPlus™isatLocal,thesearching speedmightdecrease.

3.12.3. MULTI- REAL TIME

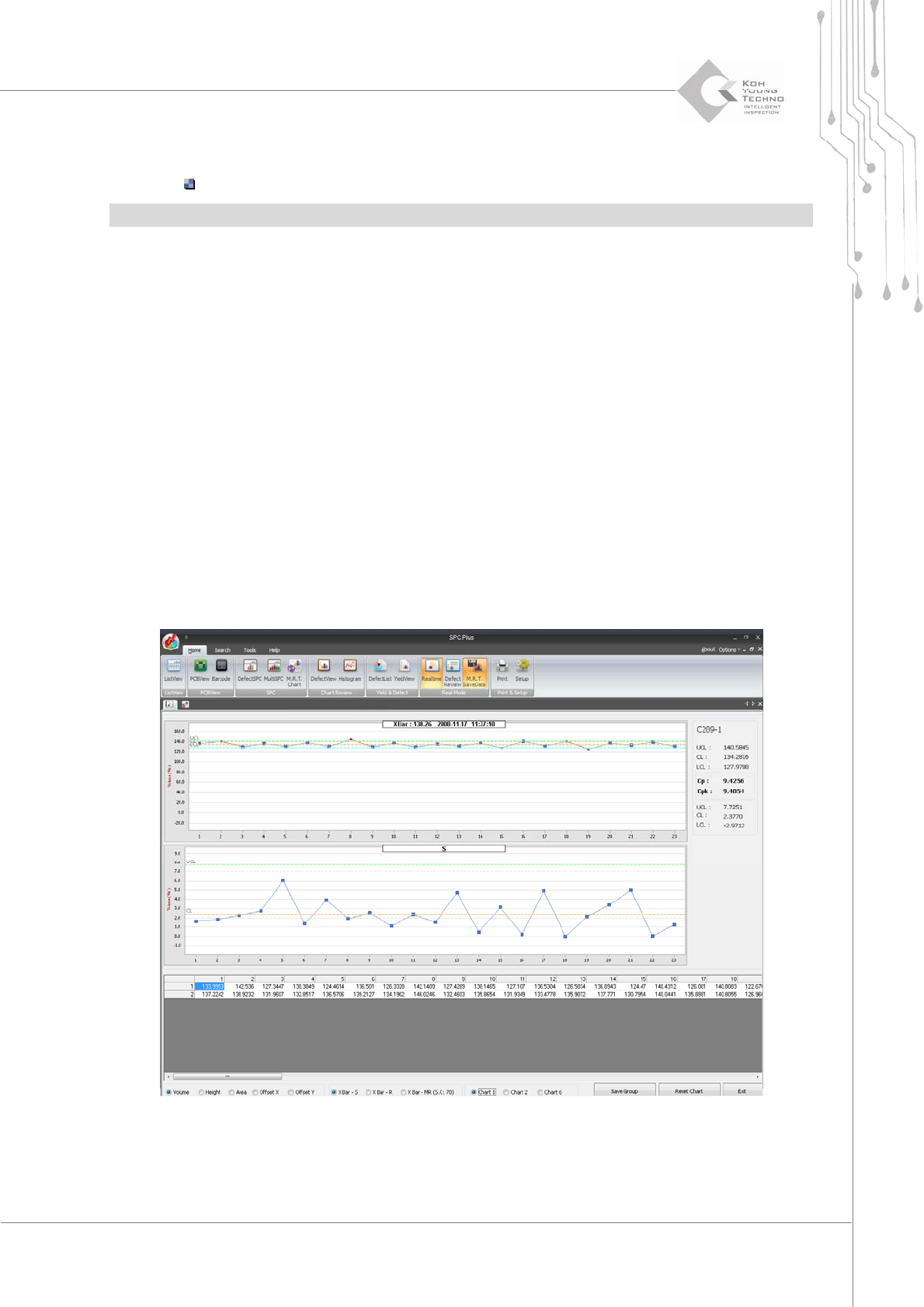

Multi‐ Real Time is the Real‐timescreen mode focused on using the warning function (alarming

function) for the abnormal valueofprogressmanagement via a meterchart(X Bar‐S, X Bar‐R,X

Bar‐MR,etc.)byconfiguring6groupsorcomponentsfromthe lastPCBinspectionresultsin

real

time.

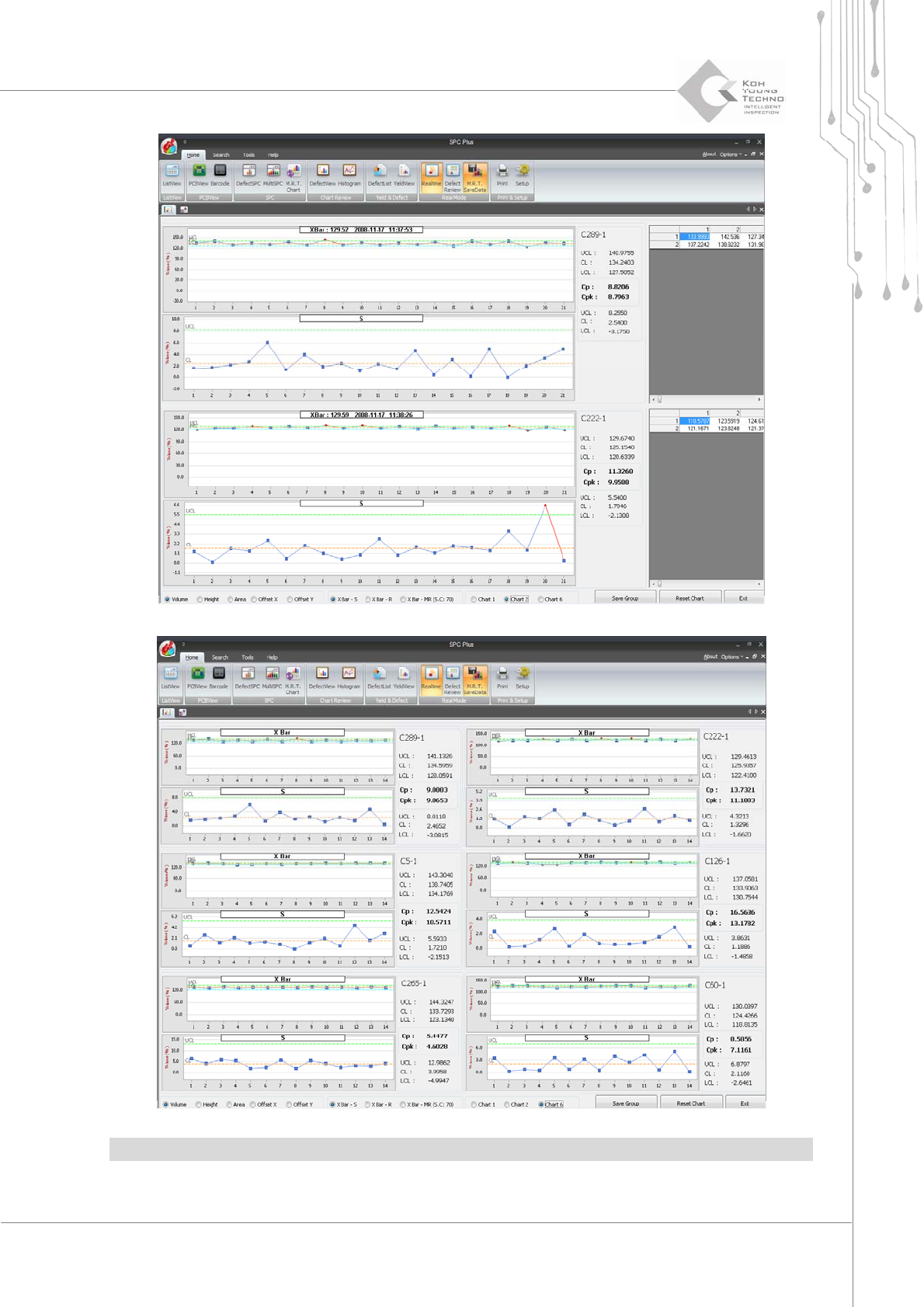

Thereare3typesofcharts:

 Enlargeonech ar t .

 Enlargetwocharts.

 View6chartsatonce.

Settingthealarmingdeterminestheprogressstatus.

Programmer's Manual | 43

Note:FordetailsonhowtouseMulti‐RealTime,seeSe ction3.11SetupofChapter5.
