Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
NOTICE
Unexpected timeout messages
In some cases, the next page of the Installation Manager is not displayed fast enough
and the following message appears.

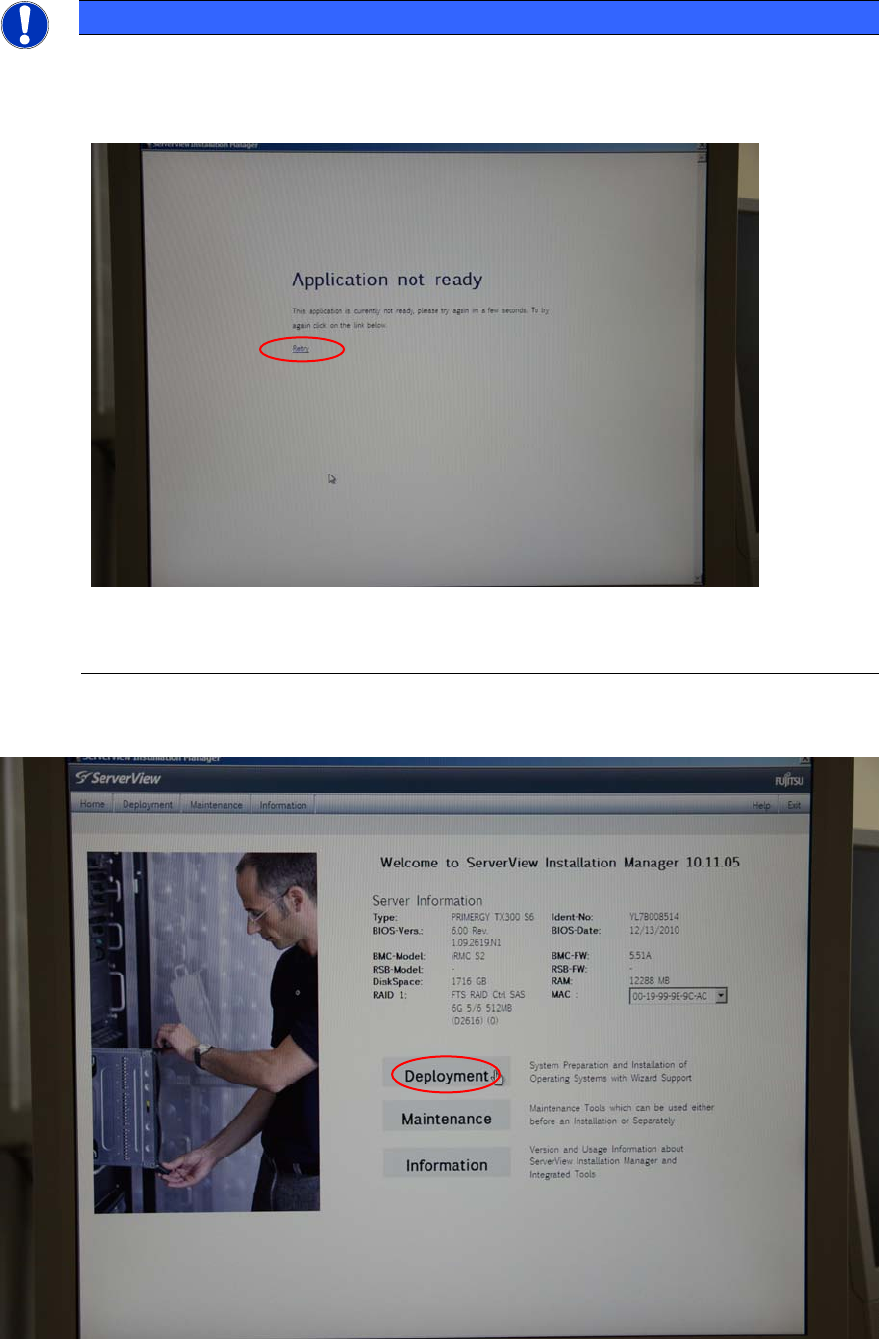

Figure 3-5: Unexpected Application not ready message
► If this happens, click on Retry to load the next page.
After initialization, the Installation Manager main screen will be displayed.
Figure 3-6: Installation Manager main screen
► Select the Deployment option by clicking on it.
13
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
The deployment process selection screen appears.

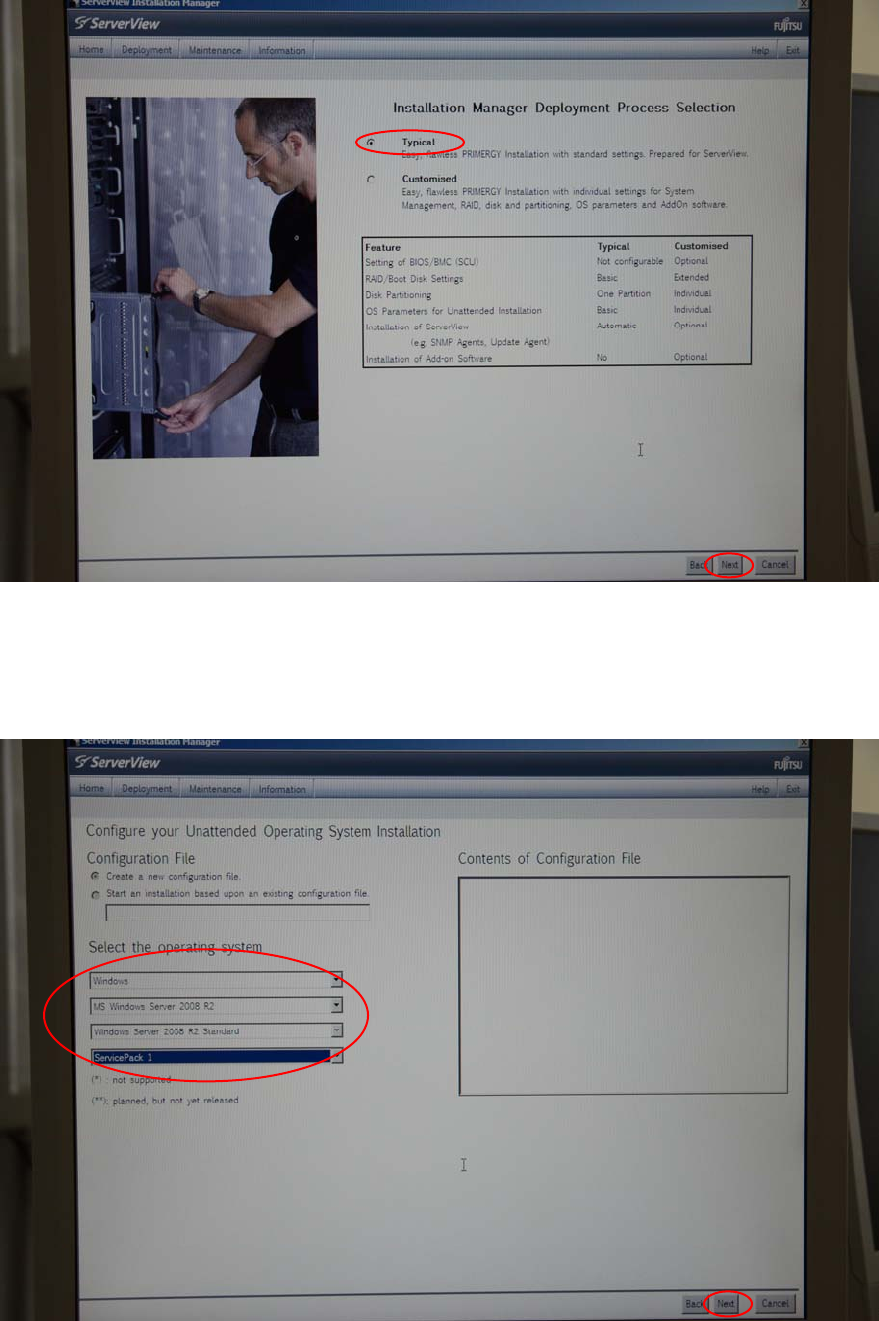

Figure 3-7: Deployment Process Selection screen
► Ensure that the radio button besides Typical is selected and click the Next button at the bottom
of the screen.
The Configure your Unattended Operating System Installation screen appears.
Figure 3-8: Unattended Operating System Installation Configuration screen with Windows Server 2008 R2 SP 1 selected
14
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
► In each of the dropdown boxes, select Windows, MS Windows Server 2008 R2, Windows
Server 2008 R2 Standard, Service Pack 1 as displayed in the figure above.
► Click the Next button at the bottom of the screen.
The Configuration of Disks and RAID Controllers screen appears.

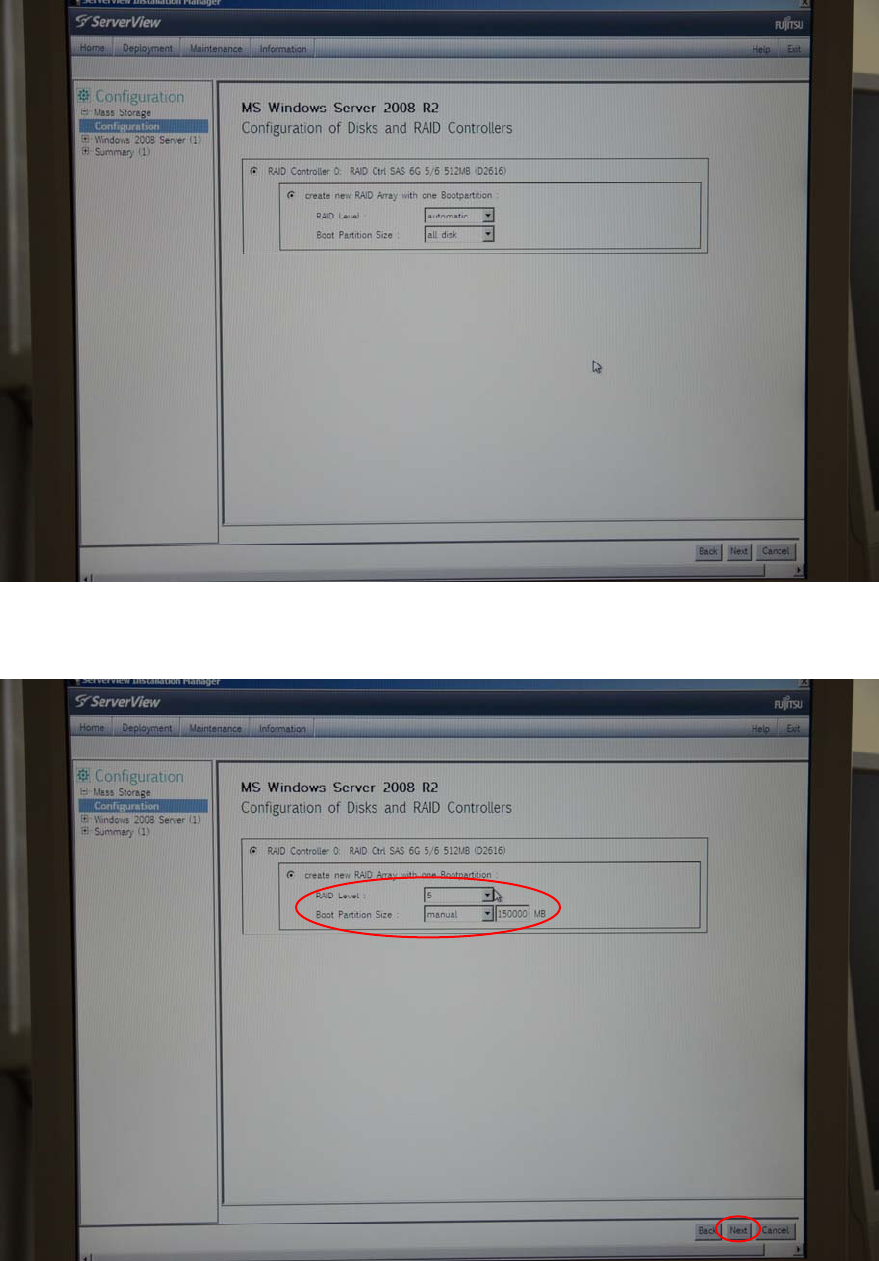

Figure 3-9: Configuration of Disks and RAID Controllers screen with default options
► Modify the default settings as displayed in the following figure.
Figure 3-10: Configuration of Disks and RAID Controllers screen with custom options
