Installing Primergy TX300S6 with Wind ows Server 2 008R2 SP 1 07/2011 Edition 4.3 Adding a second partition In most cases, a second partition is app ropriate. Figure 4-12: Starting Computer Manage ment ► Click on Start .…
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
Figure 4-9: Server Manager – Changing DVD drive letter
► On the left side, select Storage – Disk Management.
► Right-click on the DVD drive in the lower middle of the window and select Change Drive Letter
and Paths….
Figure 4-10: Changing DVD drive letter to Y
► In the appearing window, click the Change… button.
► Select the drive letter Y from the dropdown menu and click the OK button.
A warning message will appear.
Figure 4-11: Disk Management warning
► Accept the warning message by clicking the Yes button.
32
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
4.3 Adding a second partition
In most cases, a second partition is appropriate.
Figure 4-12: Starting Computer Management
► Click on Start.
► Right-click on Computer and select Manage.
The Server Manager opens.
Figure 4-13: Server Manager – Adding a second partition
► On the left side, select Storage – Disk Management.
33
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
► In the middle area besides Disk 0, right-click in the unassigned, empty disk space (the shaded
area) and select New Simple Volume.
The New Simple Volume Wizard opens.

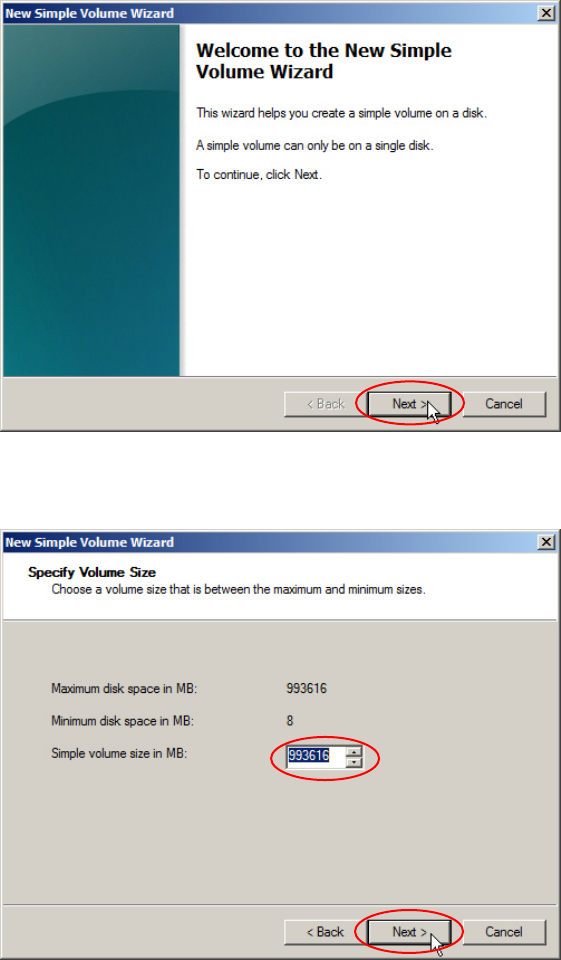

Figure 4-14: New Simple Volume Wizard – Welcome
► Click the Next > button.
Figure 4-15: New Simple Volume Wizard – Specify Volume Size
► Leave the value for the simple volume size (using all remaining space) and click the Next >
button.
34
