Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

► Insert the Windows Server 2008 R2 SP 1 operating system DVD into the DVD drive again and

click the OK button.

The Installation Manager starts the Windows installation.

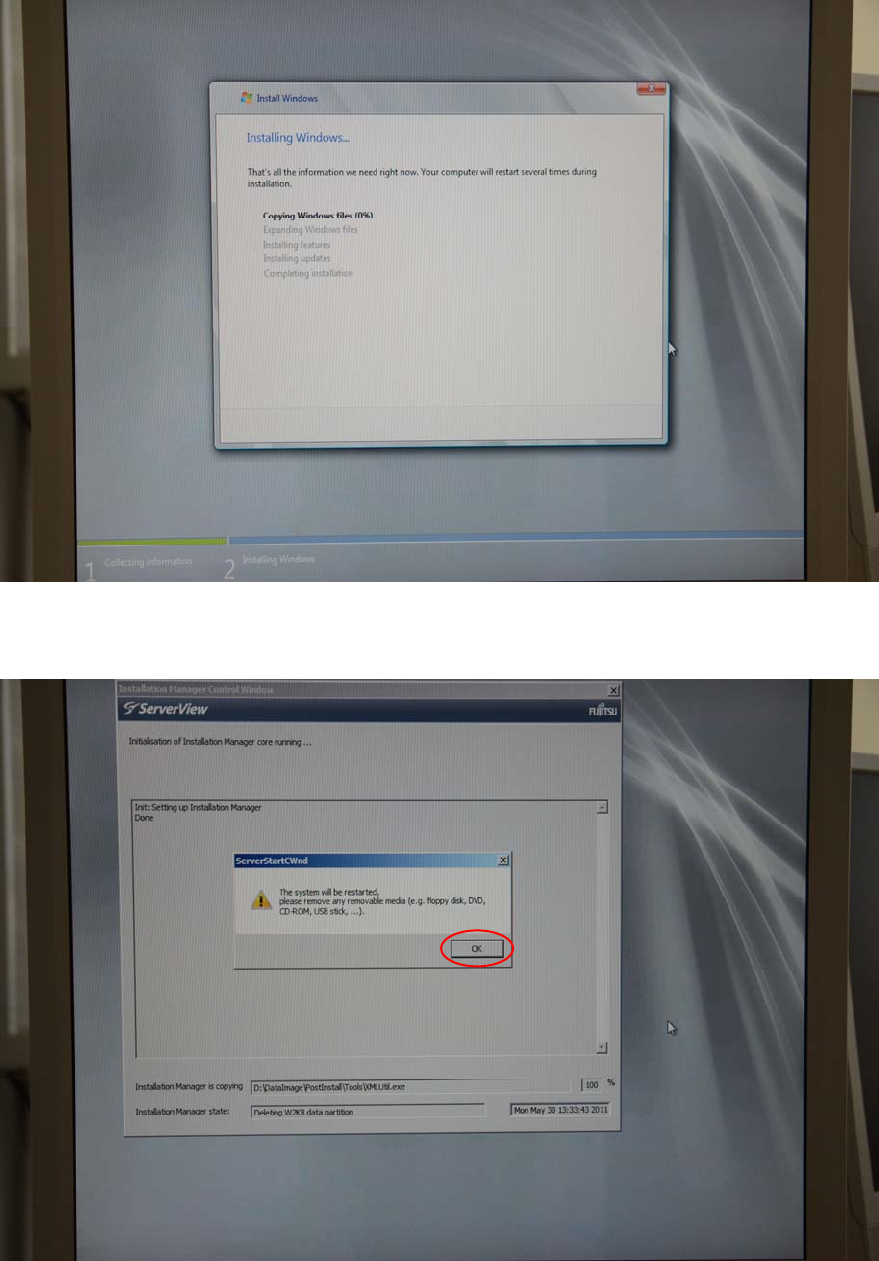

Figure 3-24: Installation Manager starting Windows Installation

After a while, the Installation Manager prompts you to remove the DVD again.

Figure 3-25: Installation Manager prompting to remove the DVD again.

► Remove the DVD from the drive and click the OK button.

Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

The setup will reboot the computer and continue.

► Wait, until the setup is completed. This may take 45 minutes or more.

After the main part of the Windows Setup is completed, the following dialog will appear.

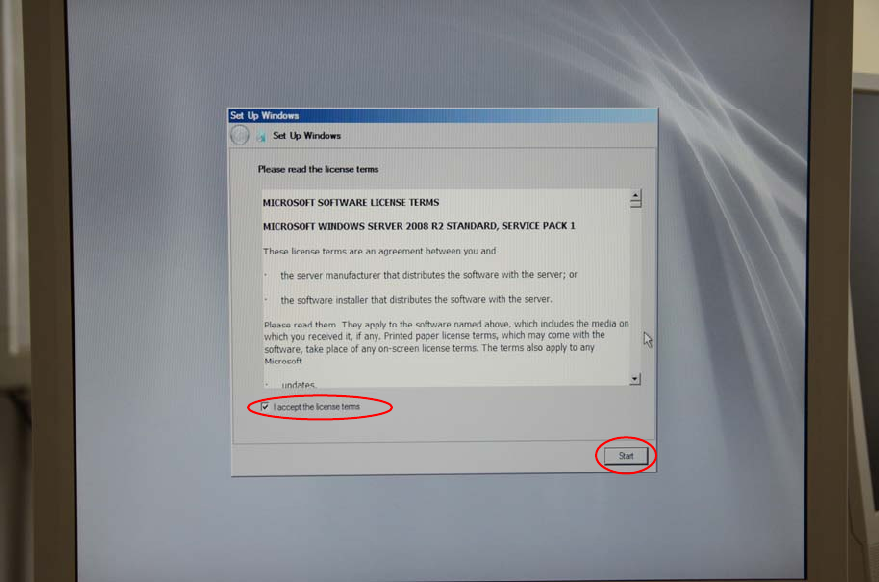

Figure 3-26: Windows Setup waiting to agree the license terms

► Read the license terms and click the checkbox besides I accept the license terms.

► Click the Start button.

► Wait while Windows finalizes.

Thereafter the logon screen will appear.

Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

Figure 3-27: Windows Logon Screen

► Press CTRL + ALT + DEL to log on and log in with the administrator account and the

password you have configured.

After login and some preparation, the following screen will appear.

Figure 3-28: Restart required after some preparation

► Click the Restart system button and wait until the system is restarted.
