Installing Primergy TX300S6 with Wind ows Server 2 008R2 SP 1 07/2011 Edition Figure 4-25: TCP/IP Properti es with gateway re moved ► Remove the wrong du mmy gateway "127.0.0.1" and click the OK button. 39
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

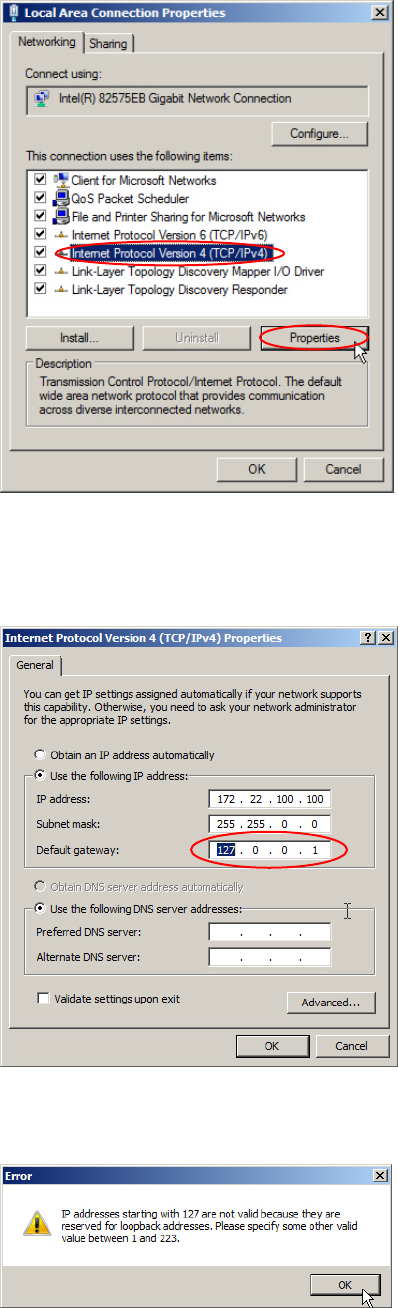

Figure 4-22: Properties of SIPLACE LAN Network Connection
► Click the Internet Protocol Version 4 (TCP/IPv4) text (not the checkbox!) and select Properties.
The TCP/IP Properties appear.
Figure 4-23: TCP/IP Properties with wrong gateway
If you would click OK, Windows checks the default gateway setting and displays an error message:
Figure 4-24: Windows detecting wrong gateway setting
38
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
Figure 4-25: TCP/IP Properties with gateway removed
► Remove the wrong dummy gateway "127.0.0.1" and click the OK button.
39
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
4.5 Further preparation steps
Before applying the Support Media, you must check a couple of settings.
These further preparation steps are described in the document "Required Steps before using
Support Media".
