Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
► In the middle area besides Disk 0, right-click in the unassigned, empty disk space (the shaded
area) and select New Simple Volume.
The New Simple Volume Wizard opens.
Figure 4-14: New Simple Volume Wizard – Welcome
► Click the Next > button.
Figure 4-15: New Simple Volume Wizard – Specify Volume Size
► Leave the value for the simple volume size (using all remaining space) and click the Next >
button.
34
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

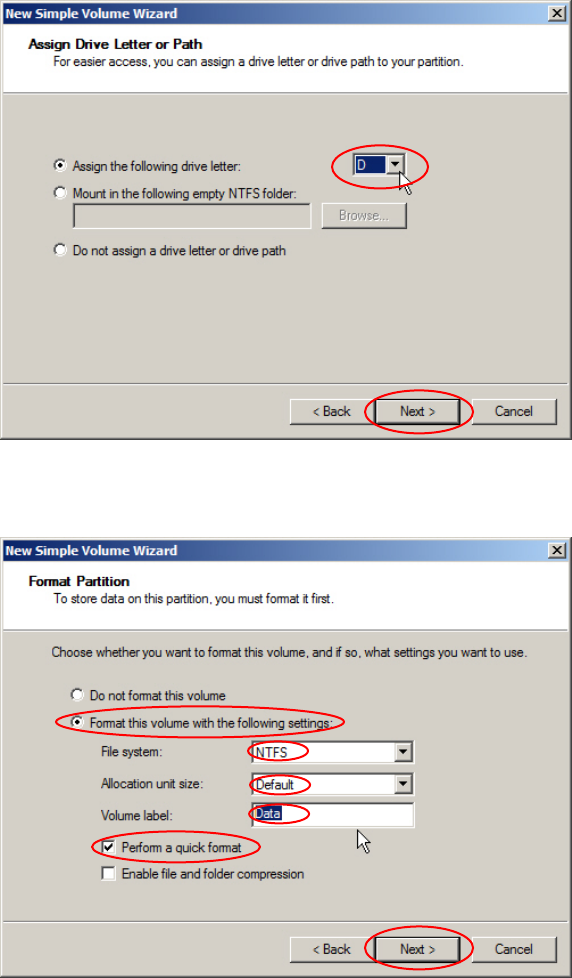

Figure 4-16: New Simple Volume Wizard – Assign Drive Letter or Path
► Ensure that drive D is selected in the dropdown menu and click the Next > button.
Figure 4-17: New Simple Volume Wizard – Format Partition
► Select the radio button besides Format this volume with the following settings:.
► Select NTFS besides File system.
► Leave the default allocation unit size and enter a name for the new volume, e.g. “Data”.
► Select the Perform a quick format checkbox and click the Next > button.
35
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

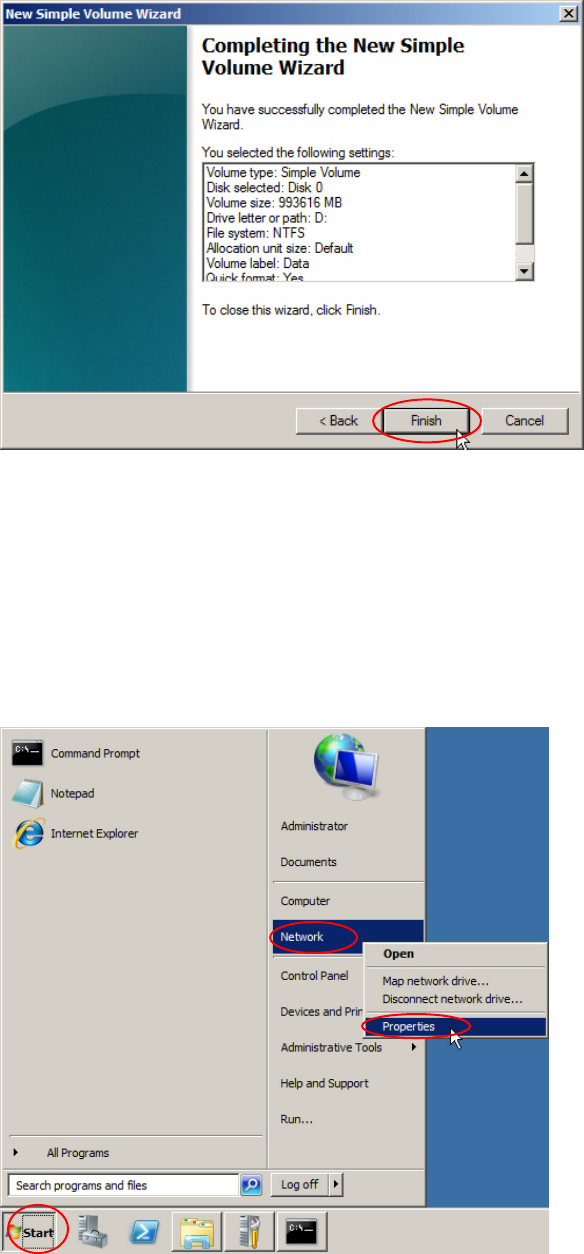

Figure 4-18: New Simple Volume Wizard – Completed
► Click the Finish button to complete the task. Formatting may take a couple of seconds.
4.4 Removing default gateway
As mentioned before, you have to remove the dummy default gateway that was entered during the
Installation Manager guided setup.
Figure 4-19: Opening Network Settings
► Click on Start.
► Right-click on Network and select Properties.
The Network and Sharing Center opens. and Sharing Center opens.
