Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
The screen should look like this:
Figure 2-1: Boot order in BIOS screen with LAN device selected
► With the device selected, press the X key to exclude the device from the boot order.
NOTICE
If you accidentally excluded the wrong device, press X again to include it. After that,
you may have to fix the boot order of the devices. You can do this by pressing + or -
with the appropriate device selected.
7
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
The screen should look like this:

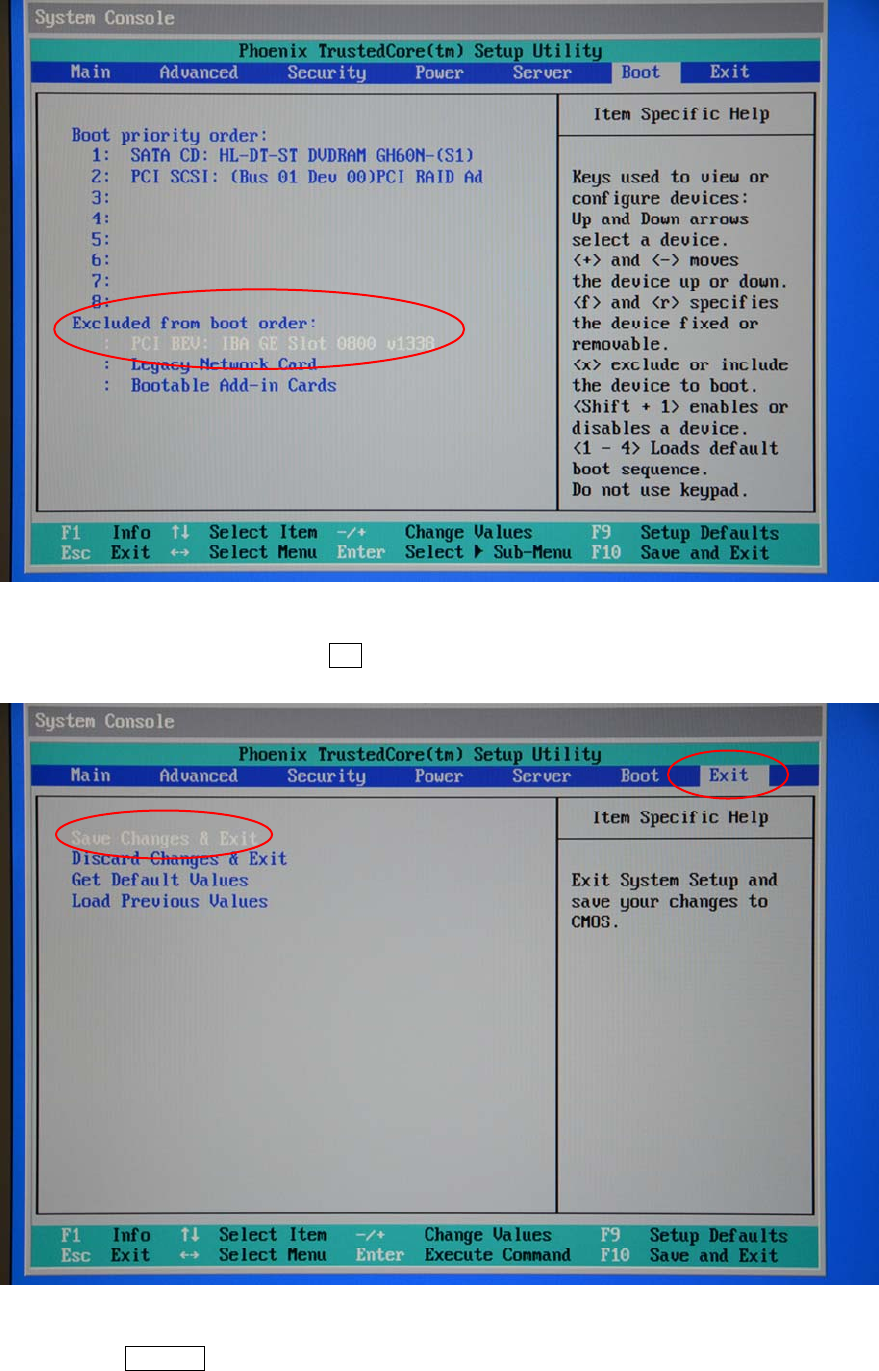

Figure 2-2: Boot order in BIOS screen with LAN device excluded
► After excluding the device, press → once to select the Exit option. Ensure that the first entry
Save Changes & Exit is selected as displayed in the following figure.
Figure 2-3: Exiting BIOS using the “Save Changes & Exit” option
► Press the ENTER key to select the option.
8
Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition
The following confirmation message will be displayed.

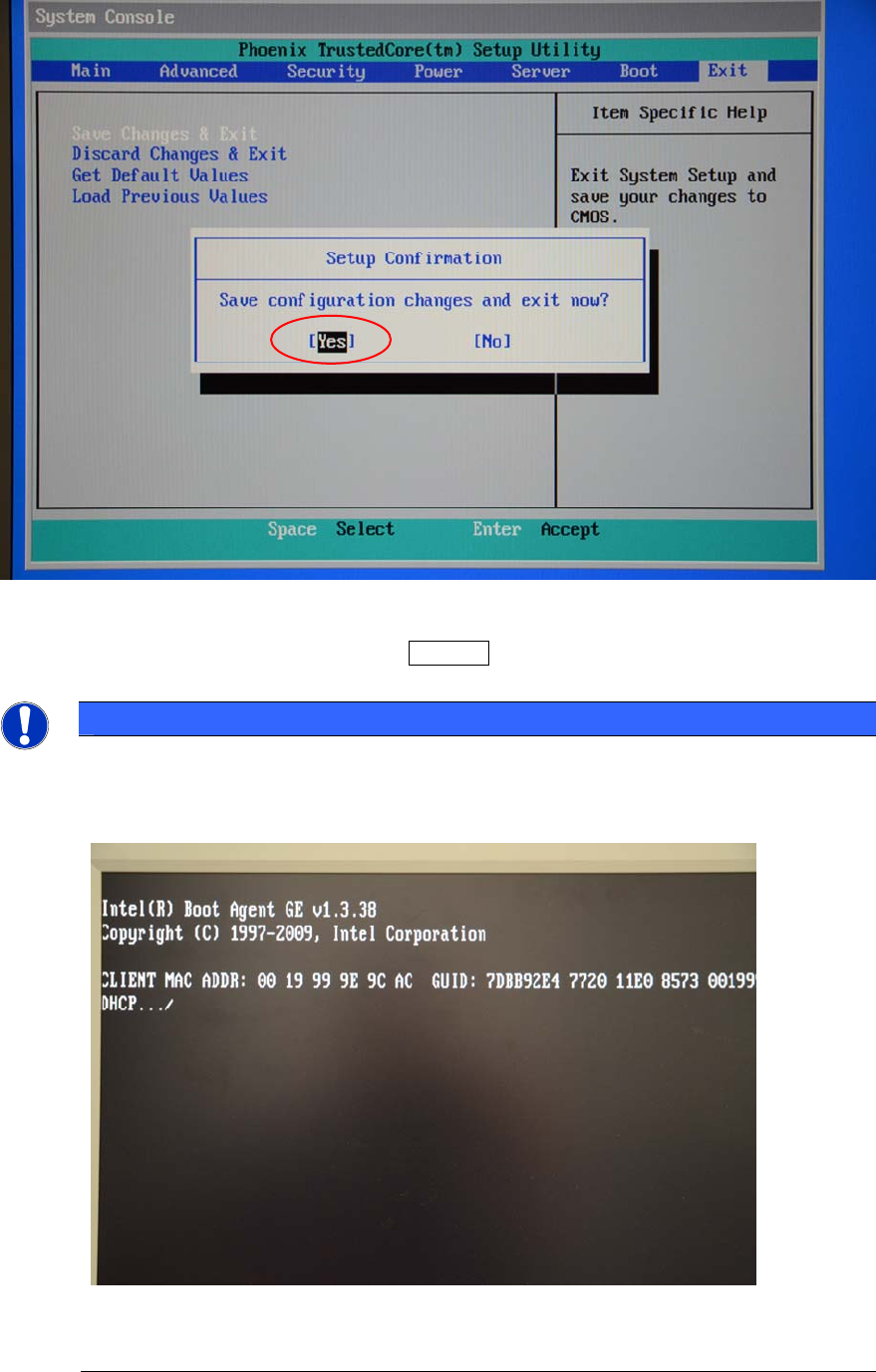

Figure 2-4: Save configuration changes confirmation message
► Ensure that Yes is selected and press the ENTER key to confirm.
Now you have disabled the LAN device from the boot order.
NOTICE
If you don’t remove the LAN device from the boot order
If you don’t remove the LAN device from boot order, every boot of the server takes about
20 seconds more and the following screen is displayed.
Figure 2-5: LAN device waiting for DHCP
