Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

► For RAID level, select "5".

NOTICE

Select/change RAID options carefully

In this manual, RAID level 5 is used for a good compromise between performance and

data security. RAID 5 requires three hard disks at least. In most cases, changing the

RAID level afterwards causes existing data on the involved disks to get lost. So, you

should ensure to select the proper RAID level first before setting up the computer with

important data. For more information on RAID levels, please consult the manual for your

RAID controller or search in internet for RAID documentation.

► For Boot Partition Size, select "manual" and enter the value "150000" MB to reserve about 150

GB for the boot partition (the Windows "C:" drive).

NOTICE

Whole disk with single partition

If you leave the default settings for boot partition size, a single partition containing the

whole disk will be created. After that, you will have to use a partition manager tool if you

want to split the system into more partitions.

► Click the Next button at the bottom of the screen to continue.

The next configuration screen appears.

Figure 3-11: Settings screen with additional options

► Enter a name for the user and organization.

This information will only be used for registration information – no account will be generated.

► Enter the name for the computer as required.

Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

NOTICE

Ensure that the computer name is valid!

Please select the computer name carefully. Some products, like SQL Server strongly

depend on the computer name and may stop working when you change it afterwards!

► Leave the Product ID field blank.

► Enter the password for the administrator. For SIPLACE default installations please see the

technical information TI2008-04V08 that lists all SIPLACE default passwords.

► Select the appropriate time zone.

► Select English for the Regional and Language Options.

► Select the radio button besides autoconfiguration in the Internet Protocol Version 6 field.

► In the Internet Protocol Version 4 field :

► Select no besides DHCP.

► Enter the IP- Address for the SIPLACE LAN connection besides IP-Address.

► Enter the appropriate mask besides Subnet-Mask. In this documentation, "255.255.0.0" is

used.

► In most cases, there is no valid gateway in the SIPLACE LAN, thus leave the Gateway field

blank.

► Click the Next button to continue.

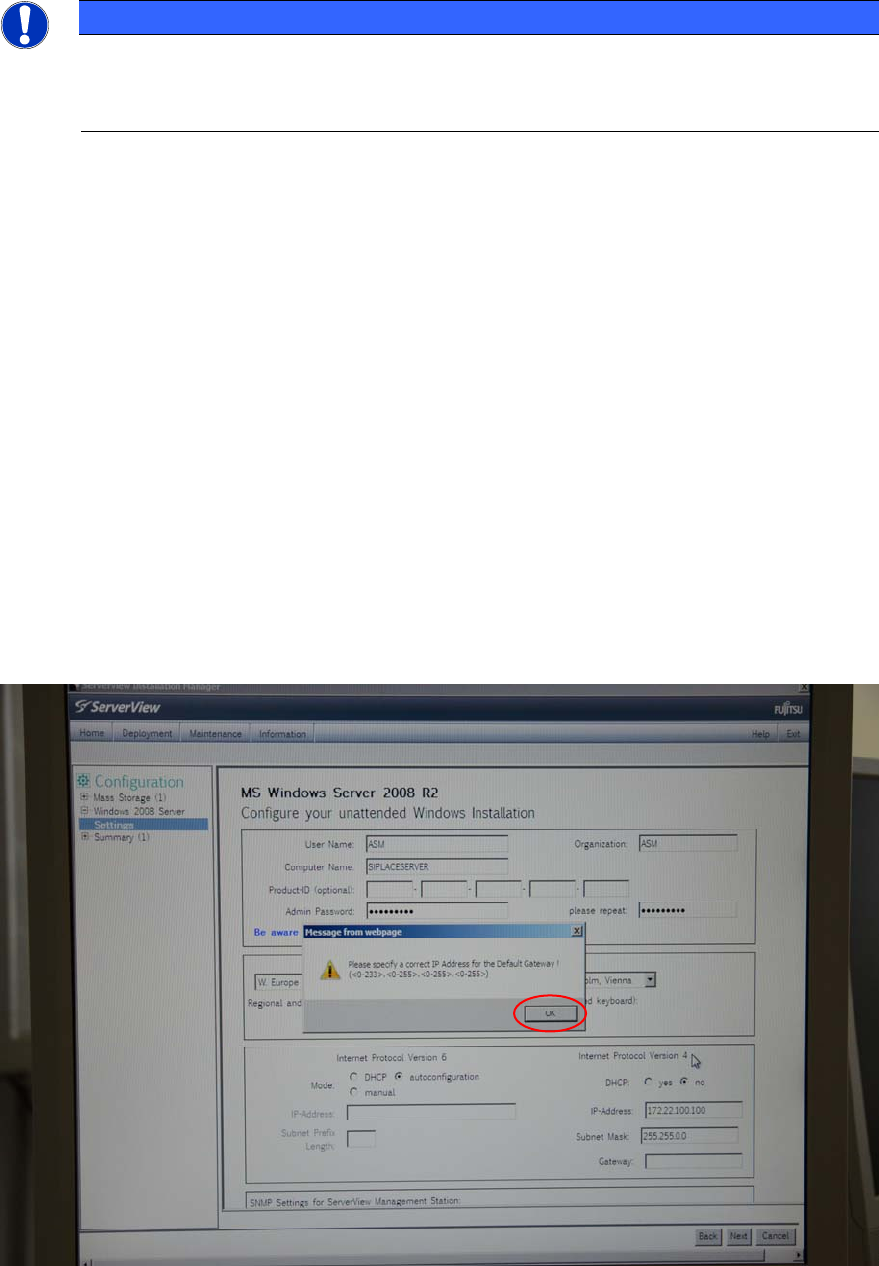

An error message is displayed, prompting you to enter a gateway:

Figure 3-12: Installation Manager prompts to enter a gateway

► Click OK to accept the message.

► For now, enter "127.0.0.1" for the gateway and click the Next button.

Installing Primergy TX300S6 with Windows Server 2008R2 SP 1 07/2011 Edition

Figure 3-13: Dummy- Gateway 127.0.0.1 entered

CAUTION

Wrong default gateway

To proceed with the installation, the value 127.0.0.1 was entered for the default gateway.

Please keep in mind to remove this IP configuration setting after installation, since wrong

default gateway settings cause network routing problems! Additionally, only existing

gateways should be entered.

The next screen displays the summary.
