MACHINE CONTROL CAN BUS 7.38 Technical Reference Manual Chapter Issue 12, Feb 18 N3PL3 N3SK1 N3SK4 Pin No. Signal Pin No. Signal 1N / C 6N / C 2C A N _ L 7C A N _ H 3C A N _ G N D 8N / C 4N / C 9N / C 5N / C 9 Wa y D T y…
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.37
N3PL1
N3PL2
View on Component Side of Board
N3SK16
3
Connector Description I/O
N3SK16 Squeegee Mechanism Input
Pin No. Signal Pin No. Signal
1 24V US 4 0V
2 0V 5 12V
3 24V SW 6 0V
4
1
6 Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
7.38 Technical Reference Manual Chapter Issue 12, Feb 18
N3PL3
N3SK1
N3SK4
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1 Spare Output 3 Spare Output
20V 40V
1
4 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2Paste Roll Low 5N/C
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS

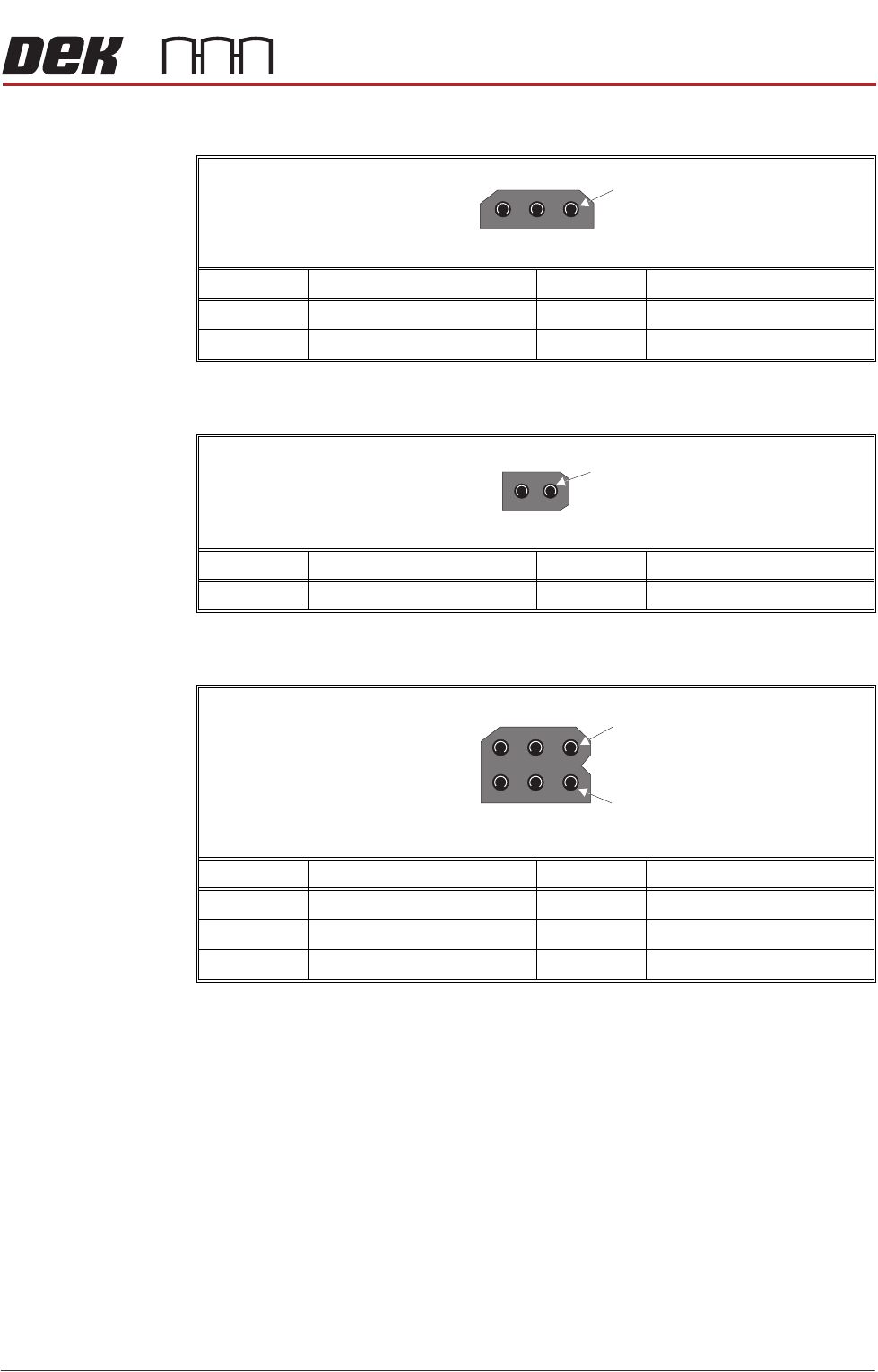

Chapter Issue 12, Feb 18 Technical Reference Manual 7.39
N3SK5
N3SK6
N3SK7
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Position
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Spare Output 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
30V 60V
4
1
6 Way Trident Socket
