SAFETY FEATURES
HIGH VOLTAGE PROTECTION
2.18 Technical Reference Manual Chapter Issue 15, Nov 18
Earth Bonding All external metal surfaces are mechanically and electrically bonded to the
printer’s protected earth point. The bonding wire used is identified by its green
and yellow insulation and is commonly used to earth bond throughout. Care
should be taken when removing these links that when they are replaced they
are secured tightly and cleanly.
Printer Protected Earth Point
1 PSU M37 Module Earth Bond Stud 4 Printer Protective Earth Chassis Stud
2 Earth Busbar 5 Earth Busbar Connected to Printer
Frame
3 Printer Bonding Earth Chassis Stud 6 Printer Earth Connections
Printer Protected Earth Stud and Earth Busbar
Earth Point and Labels - RHS of Printer Chassis
SAFETY FEATURES
HIGH VOLTAGE PROTECTION
Chapter Issue 15, Nov 18 Technical Reference Manual 2.19
Mains Isolator (cover removed) Showing Earth Loom Arrangement
1 Earth Lead to Chassis M5 Stud and TB3
2 Earth Label
3 Earth Lead to Chassis M6 Stud (Protective Earth)
SAFETY FEATURES
HIGH VOLTAGE PROTECTION
2.20 Technical Reference Manual Chapter Issue 15, Nov 18

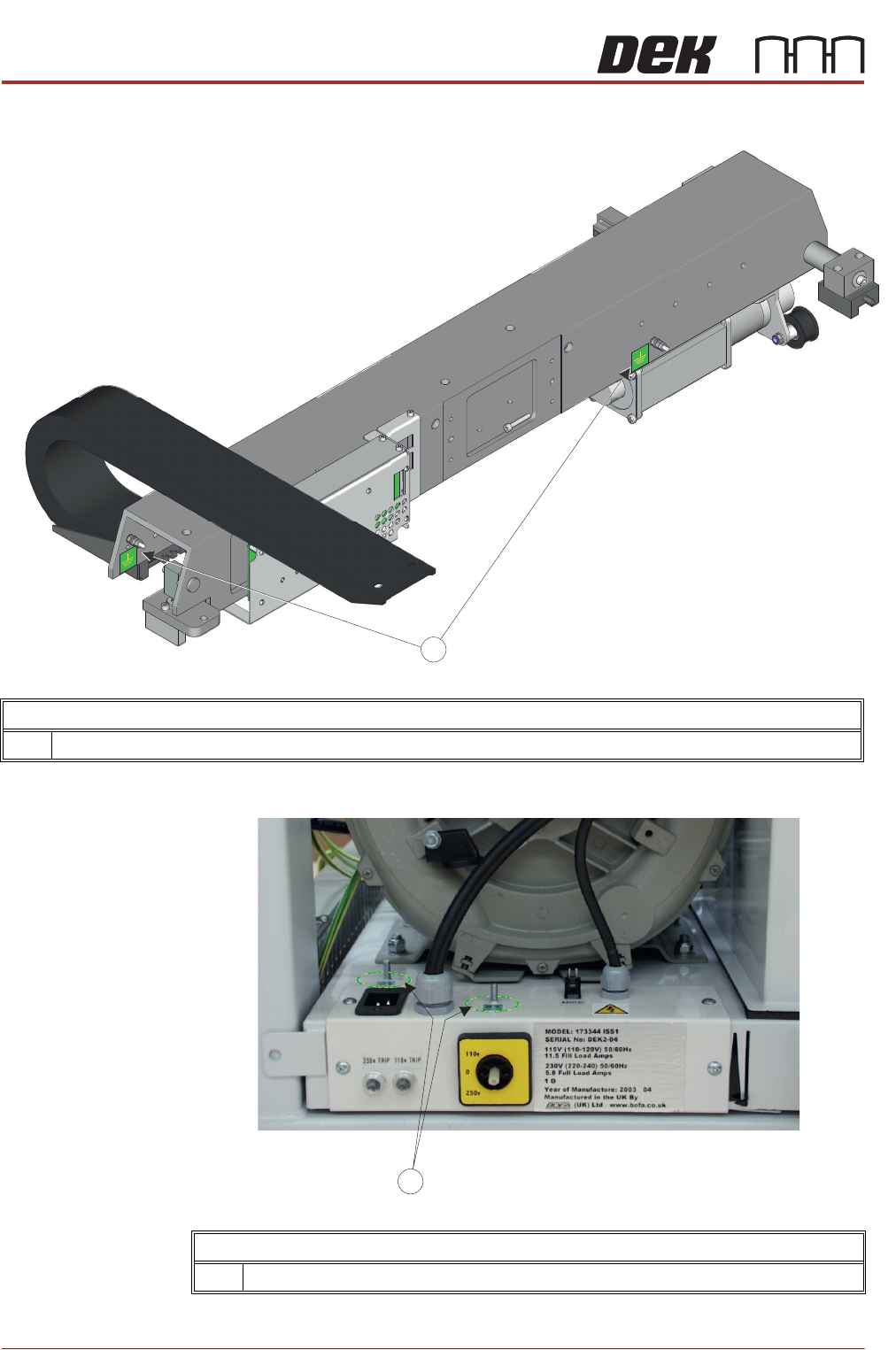

Earth Studs and Labels on the Print Carriage
1 Earth Studs and Labels
Earth Studs and Labels on the Vacuum Pump
1 Earth Studs and Labels
