- - 72. FEEDERBANK COMPONENTS(4) (TYPEXL) 5 7 2 2 2 8 1 0 1 1 1 3 1 4 1 7 1 6 4 5 4 5 5 4 1 8 3 1 8 3 2 3 1 8 4 3 1 8 1 1 2 6 2 1 2 0 2 0 2 1 2 4 2 4 2 2 2 3 2 9 2 5 1 9 2 6 2 7 2 8 9 1 5

100%1 / 284
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14155 FEEDERSENSBRASM 1
2
#01
401-14955 FEEDER_SENSBRASM3010 1
3 401-10192 SENSORBRFR (1)
4
#01
401-14952 SENSORBRFR3010 (1)
5 401-14729 SENSORBRRR (1)
6 SL-6051292-TN SCREWM5L=12 (8)
7 HX-0029400-00 FIXEDBASE (3)
8 SL-4030691-SC SCREWM3L=6 (3)
9 401-10193 SENSORBRR (1)
10 401-14734 SENSORBRFL (1)
11 401-14156 MBANKFSENSORASM 1
12 401-10002 FD-FLOAT(FR)EMISSINSENSASM (1)
13 401-10003 FD-FLOAT(FR)RECEIVESENSASM (1)
14 SM-4020501-SC SCREWM2L=5 (8)
15 401-10190 FSDBR (4)
16 SL-6030692-TN SCREWM3L=6 (8)
17 401-10000 FD-FLOAT(FF)EMISSINSENSASM (1)
18 401-10001 FD-FLOAT(FF)RECEIVESENSASM (1)
19 401-14157 MBANKRSENSORASM 1
20 401-10006 FD-FLOAT(RR)EMISSINSENSASM (1)
21 401-10007 FD-FLOAT(RR)RECEIVESENSASM (1)
22 SM-4020501-SC SCREWM2L=5 (8)
23 401-10190 FSDBR (4)
24 SL-6030692-TN SCREWM3L=6 (8)
25 401-10004 FD-FLOAT(RF)EMISSINSENSASM (1)
26 401-10005 FD-FLOAT(RF)RECEIVESENSASM (1)
27 400-93804 REFLEKTOR 1
28 SL-6031492-TN SCREWM3L=14 2
29 401-14730 ARRAYSENSORBR 1
30 401-10014 REFLEXARRAYSENSORASM 1
31 SM-4043001-SF SCREWM4X30 2
32 SL-6040892-TN SCREWM4L=8 2
33 400-93992 SBRC 1
34 SL-6030892-TN SCREWM3L=8 2
- -
72.FEEDERBANKCOMPONENTS(4)(TYPEXL)
5
7
2
2
2
8
1 0
1 1
1 3
1 4
1 7
1 6
4
5
4
5
5
4
1 8
3
1 8
3
2
3
1 8
4
3
1 8
1
1 2
6
2 1
2 0
2 0
2 1
2 4
2 4
2 2
2 3
2 9
2 5
1 9
2 6
2 7
2 8
9
1 5
- -

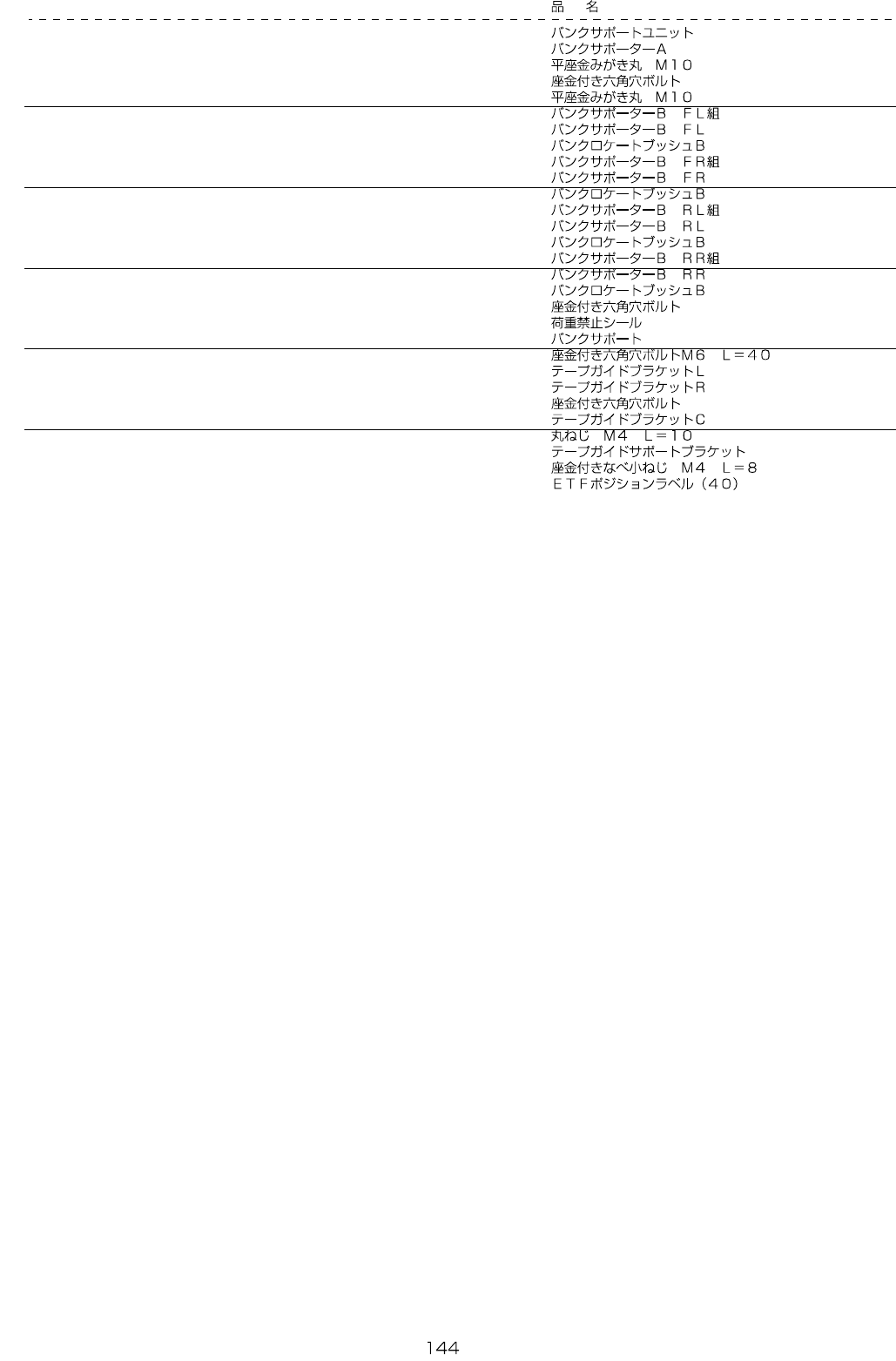

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93596 BANKSUPPORTUNIT 1
2 400-71339 BANK_SUPPORTER_A (4)
3 WP-1052001-SC WASHER10,5X21X2 (16)
4 SL-6104042-TN BOLT (16)
5 WP-1052001-SC WASHER10,5X21X2 (16)
6 400-93613 BANK_SUPPORTER_B_FL_ASM (1)
7 400-71341 BANK_SUPPORTER_B_FL (1)
8 E2623-721-000 BANKLOCATEBUSHB (1)
9 400-93614 BANK_SUPPORTER_B_FR_ASM (1)
10 400-71344 BANK_SUPPORTER_B_FR (1)
11 E2623-721-000 BANKLOCATEBUSHB (1)
12 400-93615 BANK_SUPPORTER_B_RL_ASM (1)
13 400-71345 BANK_SUPPORTER_B_RL (1)
14 E2623-721-000 BANKLOCATEBUSHB (1)
15 400-93616 BANK_SUPPORTER_B_RR_ASM (1)
16 400-71342 BANK_SUPPORTER_B_RR (1)
17 E2623-721-000 BANKLOCATEBUSHB (1)
18 SL-6104042-TN BOLT (16)
19 E5721-729-000 LABEL 1
20 400-94376 BANK_SUPPORT 2
21 SL-6064092-TN SCREW 4
22 400-94374 TAPE_GUIDE_BR_L 1
23 400-94375 TAPE_GUIDE_BR_R 1
24 SL-6061692-TN BOLT 4
25 400-94372 TAPE_GUIDE_BR_C 1
26 SM-3041052-TN SCREWM4L=10 4
27 400-94373 TAPE_GUIDE_SUPPORT_BR 1
28 SL-4040891-SC SCREWM4L=8 4
29 400-93594 ETF_POSITION_LABEL(40) 1
