KE-3010_KE-3020V_KE-3020VR-Rev06.pdf - 第89页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 401-18695 XAXISFRAME3010XLASM 1 2 401-08814 XAXISFRAMEXLV23010 (1) 3 400-98045 XLMGUIDEXL (2) 4 SM-6041602-TN SCREWM4X16 (38) 5 400-44528 MAGNETI…

- -

40.X-YCOMPONENTS(4)(TYPEXL)

2 5

2 6

2 4

5 0

2 4

1 2

1 4

4 9

3 2

5 8 6

8 8

5 6

8 9 9 0

1 3

1 5

1 6

1 8

1 9

2 0

2 1

2 0

2 1

2 3

2 2

2 3

2 9

3 0

3 1

3 3

5 3

3 4

3 5

3 6

3 7

5 1 5 2

9 1 9 2

3 8

4 0

4 1

3 9

5 3

4 9

5 0

4 7

4 8

4 4

4 3

4 5

4 2

9 1 9 2

4 6

5 1 5 2

5 5

2 2

7 0

7 1

7 4

7 2

6 5

6 6

6 7

6 8

6 9

7 3 8 7

1 1

1 0

2 6

2 4

2 5

2 4

2 6

2 5

2 7

2 8

2 7

6 0

6 1

6 2

6 3

6 4

7 7

7 6

5 4

5 9

7 8

7 5

7 8

8 0

7 9

1 7

8 1

8 2

5 8

5 7

8 3

8 4

8 5

5 6

4 9

6 7

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-18695 XAXISFRAME3010XLASM 1

2 401-08814 XAXISFRAMEXLV23010 (1)

3 400-98045 XLMGUIDEXL (2)

4 SM-6041602-TN SCREWM4X16 (38)

5 400-44528 MAGNETICSCALEX 1

6 400-98053 X_MSC_GUARD_XL 1

#01

400-54881 XMSCGUARD 1

8 400-50232 XPLUSLMTSENSORASSY 1

9 SM-6030602-TN SCREWM3X6 2

10 400-50234 XMINUSLMTSENSORASSY 1

11 SM-6030602-TN SCREWM3X6 2

12 400-93891 XFRAMEENDRASM 1

13 400-71317 XFRAMEENDR (1)

14 PH-0400162-C0 PIN (2)

15 SL-6062092-TN SCREWM6L=20 4

16 400-71315 XFRAMEENDL 1

17 SL-6062092-TN SCREWM6L=20 4

18 400-93859 YSENSORDOG 1

19 SL-6040892-TN BOLT 2

20 400-93860 YMSCBR 2

21 SL-6041292-TN SCREW 4

22 400-44532 MAGNETICSCALEYSENORUNIT 2

23 SM-6030502-TN SCREWM3L=5 4

24 400-47390 MSUBRACKET 4

25 SL-6030692-TN SCREWM3L=6 8

26 SL-6040892-TN BOLT 4

27 400-93861 YMSWBR 2

28 SL-6040892-TN BOLT 4

29 400-71313 XMOTORFRAME 1

30 SL-6052092-TN SCREW 4

31 400-68914 SERVOMOTOR750W 1

32 SL-6062042-TN BOLT 4

33 400-93855 FIXEDSUPPORTUNIT 1

34 SM-6052002-TN BOLT 4

35 401-08813 XBALLSCREW3010XL 1

36 400-93862 COUPRINGX 1

37 400-93863 XBALLSCREWSUPPORT 1

38 400-93864 ORINGX 1

39 400-93893 XBALLSCREWFRAMEASM 1

40 400-93865 XBALLSCREWFRAME (1)

41 PH-0300082-C0 PIN (2)

42 SL-6053092-TN SCREW 2

43 SL-6042592-TN SCREW 2

44 SL-6044092-TN SCREW 2

45 400-93866 YPLASTICRAILBR 1

46 SL-6051092-TN BOLT 4

47 401-08822 XOILGUARDU3010XL 1

48 401-08821 XOILGUARDF3010XL 1

49 SM-3040652-TN SCREWM4L=6 4

50 SM-3030552-TN SCREWM3L=5 14

#01

400-63714 XSTOPPERRUBBER 2

52 401-19153 X_STOPPER_RUBBER_8D 2

53 SL-6031492-TN SCREWM3L=14 4

54 400-93879 XAXISWEIGHT 1

55 SL-6041692-TN SCREWM4L=16 4

56 401-05882 KEEPMAGNETAWAYLABEL 2

57 HX-0034400-00 HARNESSPARTS 2

58 SM-4040601-SC SCREWM4X0.7L=6 2

59 HX-0029400-00 FIXEDBASE 2

60 400-94364 XOILGUARDBR 1

61 SL-6040892-TN BOLT 2

62 SL-6030892-TN SCREWM3L=8 2

63 HX-0009600-00 EDGEBUSHING 0.5

64 HX-0009600-0A GROMMET 0.5

65 400-50240 X-MSCBRACKETASSY 1

66 SL-6041092-TN SCREW (2)

67 400-46002 X-MSCBRACKET (1)

68 400-44531 MAGNETICSCALEXSENSORUNIT (1)

69 400-52050 SCREWM3X6MEC (2)

70 400-71571 HANDLE 2

71 SL-6041692-TN SCREWM4L=16 4

72 SM-6062002-TN SCREWM6L=20 4

73 400-94358 XLMTSENSORDOG 1

74 SL-6040892-TN BOLT 2

75 HX-0034400-00 HARNESSPARTS 1

76 SM-4040601-SC SCREWM4X0.7L=6 18

77 HX-0029400-00 FIXEDBASE 18

78 SM-4040601-SC SCREWM4X0.7L=6 3

79 HX-0029400-00 FIXEDBASE 7

80 SM-4040601-SC SCREWM4X0.7L=6 7

81 HX-0029400-00 FIXEDBASE 1

82 SM-4040601-SC SCREWM4X0.7L=6 1

83 HX-0029400-00 FIXEDBASE 10

84 SM-4040601-SC SCREWM4X0.7L=6 10

85 SL-6051492-TN BOLT 16

#01

401-13693 MAGNETICSCALE3010XLX 1

#01

401-08824 X_LMT_SENSOR_DOG_3010 1

#01

401-08823 X_MSC_GUARD_EXTEND 1

89 SL-6030892-TN SCREWM3L=8 4

#01

SL-6030892-TN SCREWM3L=8 7

#01

E2779-721-000 STOPPERCOLLAR 8

92 E2779-721-000 STOPPERCOLLAR 4

- -

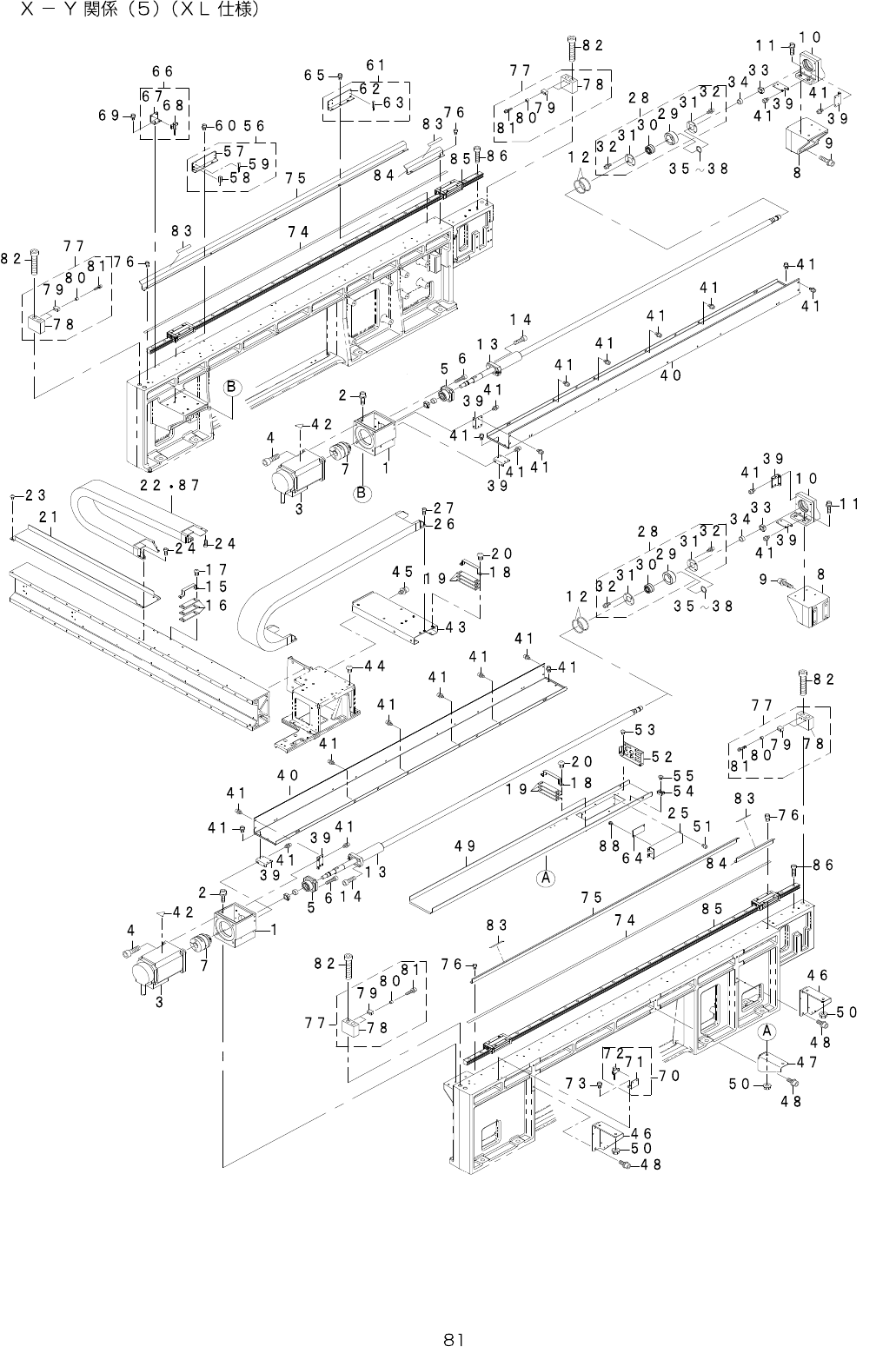

41.X-YCOMPONENTS(5)(TYPEXL)
