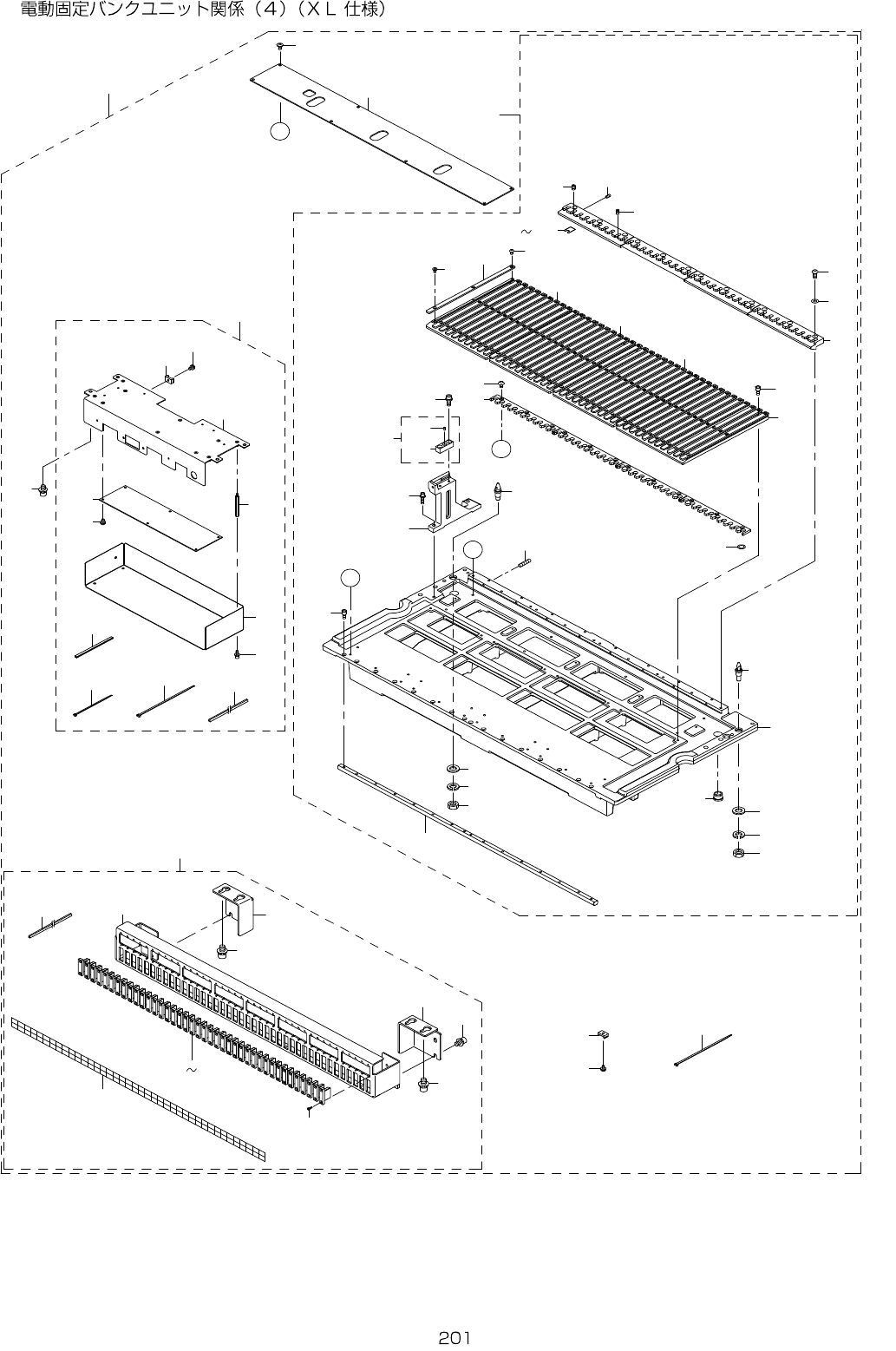

- - 101.EFIXEDBANK UNITCOMPONEN TS(4)(TYPEX L) 5 6 4 7 8 9 7 9 8 1 8 1 9 2 0 2 3 2 6 3 5 B A A 3 7 3 8 2 4 0 4 7 5 4 4 6 5 5 3 9 4 2 4 4 3 1 3 1 2 1 1 1 4 1 0 1 5 3 6 5 6 5 8 5 7 5 8 4 3 4 1 1 4 5 2 7 1 7 1 6 B 2 …

100%1 / 284
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14162 EBANKASSY 1
2 401-10281 EBANKSUBASSY (1)
3 401-28160 E_BANK_BASE (1)
4 E2602-721-000 BANKLOCATEBUSHA (2)
5 E2609-721-000 BANKLOCATEPINA (1)
6 E2610-721-000 BANKLOCATEPINB (1)
7 NM-6080003-SC NUTM8 (2)
8 WS-0820002-KN SPRINGWASHERM8 (2)
9 WP-0841601-SC WASHER8.4X17.4X1.6 (2)
10 401-28166 MARKSTAND (1)
11 E2505-729-0A0 MARKASM. (1)
12 E2505-729-000 MARKBASE (1)
13 E2601-725-000 MARK (1)
14 SL-6041292-TN SCREW (2)
15 SL-6052092-TN SCREW (2)
16 401-03746 FIXINGPLATE (4)
17 SM-3040652-TN SCREWM4L=6 (12)
18 401-03747 FIXINGBLOCK (4)
19 SM-3041052-TN SCREWM4L=10 (12)
20 400-84713 EBANKSHIM0.02 (8)
21 400-84714 EBANKSHIM0.03 (8)
22 400-84715 EBANKSHIM0.05 (8)
23 400-84699 EBANKSHIM0.10 (12)
24 SM-8040612-TP SCREWM4L=6 (20)
25 SM-8030602-TP SCREWM3X0.5L=6 (12)
26 SM-8041852-TP SCREWM4L=18 (8)
27 SM-6040802-TN SCREWM4X0.7L=8 (16)
28 E3074-729-000 BEARINGSHIMD (2)
29 401-03748 RAILGUIDE9 (3)
30 401-03749 RAILGUIDE10 (1)
31 SM-6040802-TN SCREW (16)
32 400-85590 GUIDE_PLATE (41)
33 SM-3030552-TN SCREWM3L=5 (82)
34 SM-1030552-TN PLATESCREWM3L=5 (41)
35 401-28162 LOCKSHAFT (2)
36 HX-0029400-00 FIXEDBASE (8)
37 SL-4030881-SC SCREWM3L=8 (8)
38 401-38827 E_BANK_BASE_COVER (1)
39 SM-0040601-SC SCREWM4X0.7L=6 (8)
40 EA-9500B02-00 CABLEBAND150 (10)
41 400-93577 FDCBRACKETASSY (1)
42 400-93591 FDCBRACKETSTAYR (1)
43 SL-6061292-TN SCREW (4)
44 401-28140 FDCBRACKET (1)
45 SL-6051092-TN BOLT (4)
46 400-93594 ETFPOSITIONLABEL(40) (1)
47 400-92647 EFIFCBL1-5ASM (1)
48 400-92648 EFIFCBL6-10ASM (1)
49 400-92649 EFIFCBL11-15ASM (1)
50 400-92650 EFIFCBL16-20ASM (1)
51 400-92651 EFIFCBL21-25ASM (1)
52 400-92652 EFIFCBL26-30ASM (1)
53 400-92653 EFIFCBL31-35ASM (1)
54 400-92654 EFIFCBL36-40ASM (1)
55 HK-0791900-00 CONNECTOR (80)
56 400-93590 FDCBRACKETSTAYL (1)
57 HX-0022300-0A BUSHING (0.14)
58 400-93578 BANKPCBBOXASSY (1)
59 HX-0035400-0E BOARDPARTS (4)
60 SL-4030691-SC SCREWM3L=6 (6)
61 401-28042 BANKPCBBASE (1)
62 EA-9500B02-00 CABLEBAND150 (30)
63 401-87551 ELECBANK10PCBASMV2 (1)
64 HX-0067100-0A GROMMET (0.36)
65 HX-0029400-00 FIXEDBASE (6)
66 SL-4030691-SC SCREWM3L=6 (7)
67 400-93593 BANKPCBCOVER (1)
68 SL-6030892-TN SCREW (4)
69 EA-9500B01-00 CABLEBAND (30)
70 HX-0067100-00 GROMMET (0.21)
71 SL-6051092-TN BOLT (4)
72 401-07154 CLOSELABEL (1)
- -
101.EFIXEDBANKUNITCOMPONENTS(4)(TYPEXL)
5
6
4
7
8
9
7
9
8
1 8
1 9
2 0 2 3
2 6
3 5
B
A
A
3 7
3 8
2
4 0
4 7 5 4
4 6
5 5
3 9
4 2
4 4
3
1 3
1 2
1 1
1 4
1 0
1 5
3 6
5 6
5 8
5 7
5 8
4 3
4 1
1
4 5
2 7
1 7
1 6
B
2 8
2 4
2 5
2 4
3 3
2 9
3 4
3 2
2 9
2 9
3 0
3 1
6 2
6 4
6 5
6 6
6 3
7 2
6 8
6 9
7 0
6 7
5 9
7 1
6 1
6 0
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93575 E_BANK_ASSY 1
2 400-93576 E_BANK_SUB_ASSY (1)
3 401-03923 E_BANK_BASE (1)
4 E2602-721-000 BANKLOCATEBUSHA (2)
5 E2609-721-000 BANKLOCATEPINA (1)
6 E2610-721-000 BANKLOCATEPINB (1)
7 NM-6080003-SC NUTM8 (2)
8 WS-0820002-KN SPRINGWASHERM8 (2)
9 WP-0841601-SC WASHER8.4X17.4X1.6 (2)
10 400-71337 MARK_STAND (1)
11 E2505-729-0A0 MARKASM. (1)
12 E2505-729-000 MARKBASE (1)
13 E2601-725-000 MARK (1)
14 SL-6041292-TN SCREW (2)
15 SL-6052092-TN SCREW (2)
16 401-03746 FIXING_PLATE (4)
17 SM-3041052-TN SCREWM4L=10 (12)
18 401-03747 FIXING_BLOCK (4)
19 SM-6041402-TN SCREWM4X0.7L=14 (12)
20 400-84713 E_BANK_SHIM_0.02 (8)
21 400-84714 E_BANK_SHIM_0.03 (8)
22 400-84715 E_BANK_SHIM_0.05 (8)
23 400-84699 E_BANK_SHIM_0.10 (12)
24 SM-8040612-TP SCREWM4L=6 (8)
25 SM-8030602-TP SCREWM3X0.5L=6 (8)
26 SM-8041852-TP SCREWM4L=18 (8)
27 WP-0430801-SC WASHERM4 (12)
28 E3074-729-000 BEARINGSHIMD (2)
29 401-03748 RAIL_GUIDE_9 (3)
30 401-03749 RAIL_GUIDE_10 (1)
31 SM-6040802-TN SCREW (16)
32 400-97553 GUIDE_PLATE (41)
33 SM-3030552-TN SCREWM3L=5 (82)
34 SM-1030552-TN PLATESCREWM3L=5 (41)
35 400-93588 LOCK_SHAFT (1)
36 SM-6040802-TN SCREW (16)
37 401-38827 E_BANK_BASE_COVER (1)
38 SM-0040601-SC SCREWM4X0.7L=6 (8)
39 HX-0029400-00 FIXEDBASE (8)
40 SL-4030881-SC SCREWM3L=8 (8)
41 EA-9500B02-00 CABLEBAND150 (10)
42 400-93577 FDC_BRACKET_ASSY (1)
43 HX-0022300-0A BUSHING (0.14)
44 401-28140 FDC_BRACKET (1)
45 SL-6051092-TN BOLT (4)
46 400-93594 ETF_POSITION_LABEL(40) (1)
47 400-92647 EFIFCBL1-5ASM (1)
48 400-92648 EFIFCBL6-10ASM (1)
49 400-92649 EFIFCBL11-15ASM (1)
50 400-92650 EFIFCBL16-20ASM (1)
51 400-92651 EFIFCBL21-25ASM (1)
52 400-92652 EFIFCBL26-30ASM (1)
53 400-92653 EFIFCBL31-35ASM (1)
54 400-92654 EFIFCBL36-40ASM (1)
55 HK-0791900-00 CONNECTOR (80)
56 400-93590 FDC_BRACKET_STAY_L (1)
57 400-93591 FDC_BRACKET_STAY_R (1)
58 SL-6061292-TN SCREW (4)
59 400-93578 BANK_PCB_BOX_ASSY (1)
60 SL-4030691-SC SCREWM3L=6 (6)
61 401-28042 E_BANK_PCB_BASE (1)
62 HX-0067100-00 GROMMET (0.21)
63 401-87551 ELECBANK10PCBASMV2 (1)
64 HX-0067100-0A GROMMET (0.36)
65 HX-0029400-00 FIXEDBASE (6)
66 SL-4030691-SC SCREWM3L=6 (7)
67 400-93593 BANK_PCB_COVER (1)
68 SL-6030892-TN SCREW (4)
69 EA-9500B01-00 CABLEBAND (30)
70 EA-9500B02-00 CABLEBAND150 (30)
71 HX-0035400-0E BOARDPARTS (4)
72 SL-6051092-TN BOLT (4)
