- - 38. X-YCO MPONENTS(2) 1 4 1 4 1 4 1 4 2 6 1 6 1 7 1 5 8 9 1 7 1 6 1 5 2 6 2 5 2 5 2 5 2 5 1 8 1 8 1 8 1 8 2 4 2 4 1 6 1 5 1 7 2 6 1 7 1 6 1 5 2 3 2 3 1 9 2 0 1 9 2 0 2 1 2 1 2 2 1 3 1 2 1 0 1 1 1 2 7 4 3 5 6 2 6

100%1 / 284
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#04
401-13984 XAXISFRAMEASM 1
2
#05
401-13992 XAXISFRAME3010ASM 1
3
#07
401-35700 X_AXIS_FRAME_ASM 1
4
#06
401-35701 X_AXIS_FRAME_3010_ASM 1
5
#02
401-06046 XAXISFRAME (1)
6
#03
401-34565 X_AXIS_FRAME (1)
7 400-71325 XLMGUIDEL (2)
8 SM-6041602-TN SCREWM4X16 (34)
9 SM-6030602-TN SCREWM3X6 2
10 401-13712 XMINUSLMTSENSORASSY 1
11 SM-6030602-TN SCREWM3X6 2
12 400-54881 XMSCGUARD 1
13 401-06022 XFRAMEENDR 1
14 SL-6030892-TN SCREWM3L=8 5
15 SL-6062092-TN SCREWM6L=20 4
16 401-06020 XFRAMEENDL 1
17 SL-6062092-TN SCREWM6L=20 4
18
#02
401-10215 YSENSORDOG 1
19
#03
401-34597 Y_SENSOR_DOG 1
20 401-10216 YMSCBRV2 2
21 SL-6041092-TN SCREWM4L=10 4
22
#02
400-44532 MAGNETICSCALEYSENORUNIT 2
23
#03
401-29630 XYLINEARSCALEHEAD 2
24
#02
400-47390 MSUBRACKET 4
25
#02
SL-6030692-TN SCREWM3L=6 8
26
#02
SL-6040892-TN BOLT 4
27 400-71327 XBALLSCREWL 1
28
#01
400-98047 XBALLSCREWXL 1
29 401-13985 XMOTORFRAMEASM 1
30 SL-6051692-TN SCREWM5L=16 4
31
#02
400-68914 SERVOMOTOR750W 1
32
#03
401-29653 XAXISMOTOR 1
33 400-93855 FIXEDSUPPORTUNIT 1
34 SM-6052002-TN BOLT 4
35 401-08800 XBSNUTFRAME 1
36
#02
400-93862 COUPRINGX 1
37
#03
401-47719 COUPLING_X 1
38 400-93864 ORINGX 1
39 401-10217 XBSFRAME 1
40 401-10220 XOILGUARDUL 1
41
#01
401-08820 XOILGUARDU3010 1
42 SL-6053092-TN SCREW 2
43 SL-6042592-TN SCREW 2
44 SL-6044092-TN SCREW 2
45 401-10221 XOILGUARDFL 1
46
#01
401-08819 XOILGUARDF3010 1
47 400-49671 COVERCUSHION 2
48 SM-4030601-SC SCREWM3X0.5L=6 2
49 SM-3040652-TN SCREWM4L=6 6
50 SM-3030552-TN SCREWM3L=5 8
51 401-05882 KEEPMAGNETAWAYLABEL 2
52 HX-0034400-00 HARNESSPARTS 2
53 SM-4040601-SC SCREWM4X0.7L=6 9
54 HX-0029400-00 FIXEDBASE 7
55
#02
400-50240 X-MSCBRACKETASSY 1
56
#03
401-35702 X-MSCBRACKETASSY 1
57 400-46002 X-MSCBRACKET (1)
58
#02
400-44531 MAGNETICSCALEXSENSORUNIT (1)
59
#03
401-29630 XYLINEARSCALEHEAD (1)
60 SL-6040892-TN SCREWM4L=8 (2)
61 400-52050 SCREWM3X6MEC (2)
62 SM-6061602-TN SCREWM6L=16 4
63 SL-6040892-TN BOLT 2
64 SM-4040601-SC SCREWM4X0.7L=6 14
65 HX-0029400-00 FIXEDBASE 14
66 SL-6052592-TN SCREWM5L=25 16
67 401-13986 XSTOPPERASM 2
68 SM-6044002-TN SCREWM4X0.7L=40 4
69 401-11676 XLMTSENSORDOGV2 1
70
#01
401-08824 XLMTSENSORDOG3010 1
71 PH-0400162-C0 PARALLELPINTYPEB4X16 2
72 E3021-721-000 HAEDCENTERSHIMC 2
73 E3020-721-000 HAEDCENTERSHIMB 2
74 E3019-721-000 HAEDCENTERSHIMA 2
75 E3047-729-000 HEADCENTERSHIMD 2
76 SM-6052002-TN SCREW 2
77 400-44528 MAGNETICSCALEX 1
78
#01
401-13692 MAGNETICSCALE3010X 1
79 401-13711 XPLUSLMTSENSORASSY 1
80 SL-6040892-TN BOLT 2
81 SM-6030502-TN SCREWM3L=5 4
82 SL-6062042-TN BOLT 4
83 400-93863 XBALLSCREWSUPPORT 1
84 400-71571 HANDLE 2
85 SL-6041692-TN SCREWM4L=16 4
- -

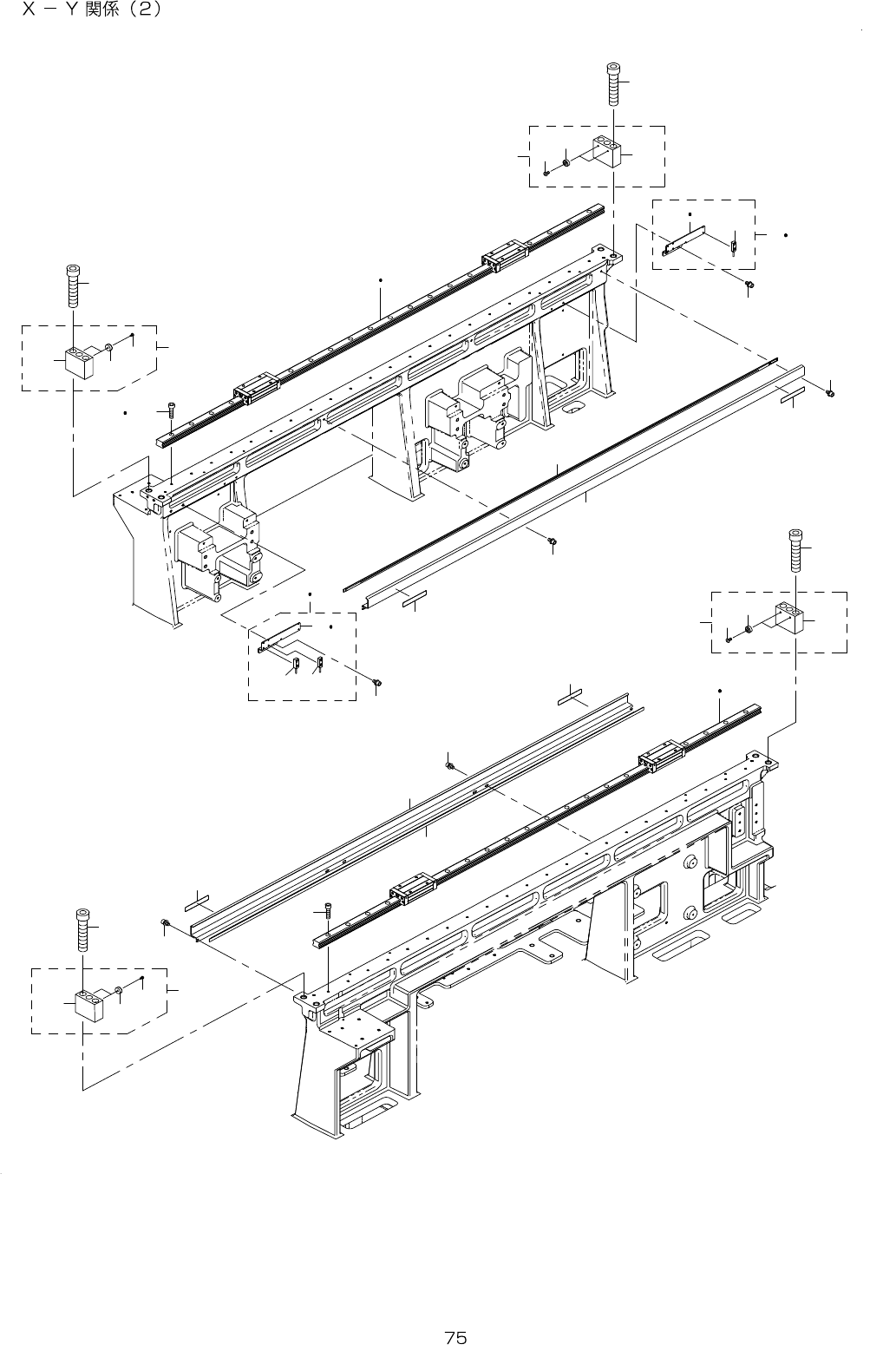

38.X-YCOMPONENTS(2)
1 4
1 4
1 4
1 4
2 6
1 6
1 7
1 5
8 9
1 7
1 6
1 5
2 6
2 5
2 5
2 5
2 5
1 8
1 8
1 8
1 8
2 4
2 4
1 6
1 5
1 7
2 6
1 7
1 6
1 5
2 3
2 3
1 9 2 0
1 9 2 0
2 1
2 1 2 2
1 3
1 2
1 0 1 1
1 2
7
4
3
5 6
2 6
- -

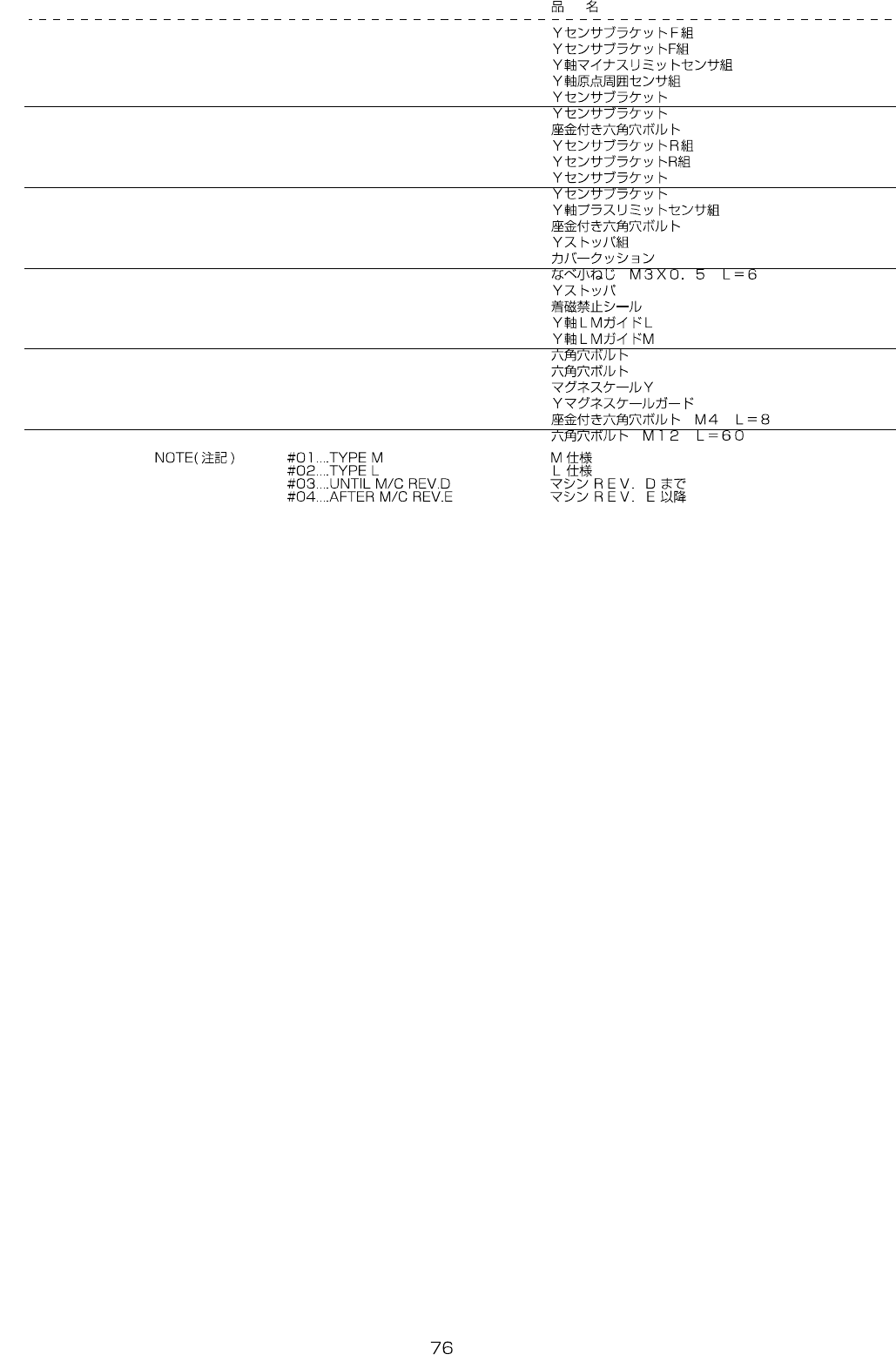

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#03
401-13987 YSENSORBRFASM 1
2
#04
401-35770 Y_SENSOR_BR_F_ASM 1
3 401-09957 Y-LMTSENSORASM (1)
4 401-09958 YNEARSENSORASM (1)
5
#03
401-10223 YSENSORBR (1)
6
#04
401-34598 Y_SENSOR_BR (1)
7 SL-6040892-TN BOLT 2
8
#03
401-13988 YSENSORBRRASM 1
9
#04
401-35771 Y_SENSOR_BR_R_ASM 1
10
#03
401-10223 YSENSORBR (1)
11
#04
401-34598 Y_SENSOR_BR (1)
12 401-09959 Y++LMTSENSORASM (1)
13 SL-6040892-TN BOLT 2
14 401-13989 YSTOPPERASM 4
15 400-49671 COVERCUSHION (2)
16 SM-4030601-SC SCREWM3X0.5L=6 (2)
17 400-00708 YSTOPPER (1)
18 401-05882 KEEPMAGNETAWAYLABEL 4
19
#02
401-06039 YLMGUIDEL 2
20
#01
401-06038 YLMGUIDEM 2
21
#01
SM-6051602-TN SCREW 44
22
#02
SM-6051602-TN BOLT 48
23 400-91396 MAGNETICSCALEY 2
24 401-10214 YMSCGUARD 2
25 SL-6040892-TN SCREWM4L=8 8
26 SM-6126002-TN SCREWM12L=60 8
