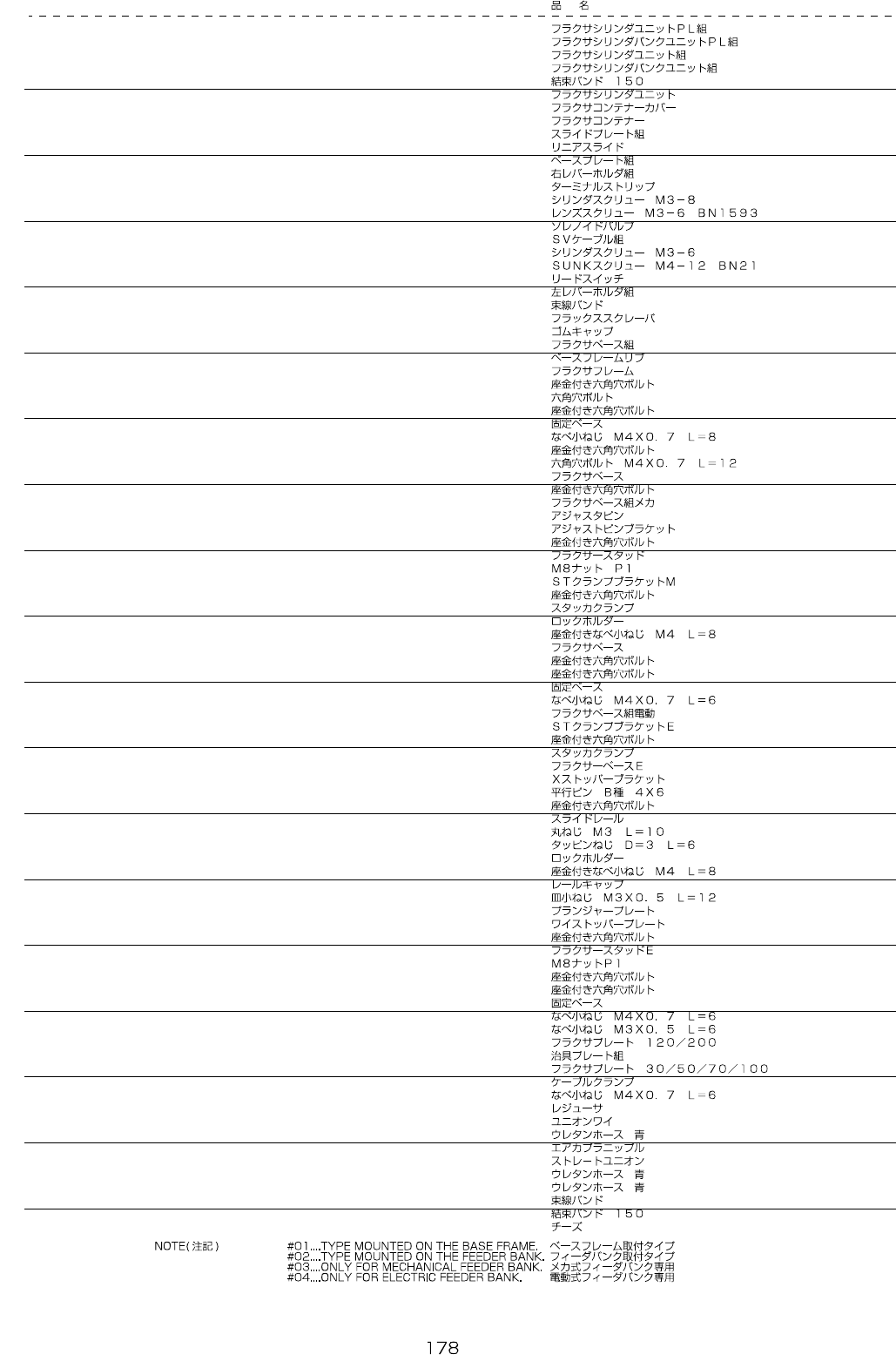

- - 90. IONIZ ERCOMPO NENTS(1) 1 1 1 1 9 3 9 1 8 9 9 8 1 2 2 2 2 1 2 0 1 9 1 9 1 0 1 0 1 6 4 4 2 1 2 1 4 1 5 7 6 1 3 1 7 5
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
400-45523 FLUXERCYLUNITPLASM 1
2
#02
400-99143 FLUXERCYLBANKUNITPLASM 1
3
#01
400-42180 FLUXERCYLINDERUNITASM (1)
4
#02
400-97610 FLUXERCYLINDERBANKUNITASM (1)
5 EA-9500B02-00 CABLEBAND150 (1)
6 400-44050 FLUXERCYLUNIT (1)
7 400-44094 FLUXCONTAINERCOVER (1)
8 400-44093 FLUXCONTAINER (1)
9 400-50208 SLIDINGPLATEASM (1)
10 400-50212 LINEARSLIDE (1)
11 400-50262 BASEPLATEASM (1)
12 400-50209 RIGHTLEVERHOLDERASM (1)
13 400-50550 TERMINALSTRIP (1)
14 400-50215 CYL.SCREWM3-8 (2)
15 400-50217 LENSSCREWM3-6BN1593 (2)
16 400-50211 SOLENOIDVALVE (1)
17 400-50551 SVCABLEASM (1)
18 400-50214 CYL.SCREWM3-6 (8)
19 400-50216 SUNKSCREWM4-12BN21 (6)
20 400-50549 REEDSWITCH (2)
21 400-50210 LEFTLEVERHOLDERASM (1)
22 EA-9500B01-00 CABLEBAND (1)
23 400-66695 FLUXSCRAPER (1)
24 400-50485 RUBBERCAP (2)
25
#01
400-94966 FLUXERBASEASM 1
26
#01
400-44084 BASEFRAMERIB (1)
27
#01
400-94738 FLUXERFRAME (2)
28
#01
SL-6041492-TN SCREW (1)
29
#01
SM-6051602-TN BOLT (4)
30
#01
SL-6042092-TN SCREWM4L=20 (4)
31
#01
HX-0029400-00 FIXEDBASE (1)
32
#01
SM-4040801-SC SCREWM4X0.7L=8 (1)
33
#01
SL-6062092-TN SCREWM6L=20 (4)
34
#01
SM-6041202-TN SCREWM4X0.7L=12 (8)
35
#01
400-94737 FLUXERBASE (1)
36 SL-6042092-TN SCREWM4L=20 4
37
#03
400-94938 FLUXERBASEASMM 1
38
#03
400-93954 ADJUSTPIN (1)
39
#03
400-94909 ADJUSTPINBR (1)
40
#03
SL-6040892-TN BOLT (4)
41
#03
400-93960 FLUXERSTUD (4)
42
#03
400-93958 NUTM8P1 (4)
43
#03
400-94910 STCLAMPBRM (1)
44
#03
SL-6040892-TN BOLT (4)
45
#03
E1214-726-000 STCLAMP (1)
46
#03
E1109-723-000 LOCKHOLDER (1)
47
#03
SL-4040881-SC SCREWM4L=8 (4)
48
#03
400-93959 FLUXERBASE (1)
49
#03
SL-6041642-TN SCREW (1)
50 SL-6041492-TN SCREW 4
51 HX-0029400-00 FIXEDBASE 4
52 SM-4040601-SC SCREWM4X0.7L=6 4
53
#04
400-94943 FLUXERBASEASME 1
54
#04
400-94487 STCLAMPBRE (1)
55
#04
SL-6040892-TN BOLT (4)
56
#04
E1214-726-000 STCLAMP (1)
57
#04
400-93955 FLUXERBASEE (1)
58
#04
400-93957 XSTOPPERBR (1)
59
#04
PH-0400062-C0 PARALLELPINTYPEB4X6 (1)
60
#04
SL-6030592-TN SCREWM3L=5 (2)
61
#04
400-77518 SLIDERAIL (2)
62
#04
SM-3031052-TN SCREWM3L=10 (14)
63
#04
ST-1030651-SN TAPPINGSCREWD=3L=6 (2)
64
#04
E1109-723-000 LOCKHOLDER (1)
65
#04
SL-4040881-SC SCREWM4L=8 (4)
66
#04
400-78576 RAILCAP (2)
67
#04
SM-1031201-SC SCREWM3X0.5L=12 (2)
68
#04
400-77519 PLUNGERPLATE (2)
69
#04
400-77520 YSTOPPERPLATE (2)
70
#04
SL-6051092-TN BOLT (4)
71
#04
400-93956 FLUXERSTUDE (4)
72
#04
400-93958 NUTM8P1 (4)
73
#04
SL-6041642-TN SCREW (1)
74 SL-6041492-TN SCREW 4
75 HX-0029400-00 FIXEDBASE 2
76 SM-4040601-SC SCREWM4X0.7L=6 1
77 SM-4030601-SC SCREWM3X6 1
78 400-44090 FLUXERPLATE120/200 1
79 400-44165 JIGPLATASM 1
80 400-44091 FLUXERPLATE30/50/70/100 1
81
#02
HX-0024500-00 CABLECLAMP 4
82
#02
SM-4040601-SC SCREWM4X0.7L=6 4
83 PJ-3010400-04 REDUCER 1
84
#01
PJ-3080600-03 YUNION 1
85
#01
BT-0600400-EC TUBEHOSE,BLUE 0.5
86
#02
PJ-0320090-05 NIPPLE 2
87
#02
PJ-3030600-01 STRAIGHTUNION 2
88
#02
BT-0600400-EC TUBEHOSE,BLUE 4
89 BT-0400251-EA TUBEHOSE,BLUE 4
90 EA-9500B01-00 CABLEBAND 16
91 EA-9500B02-00 CABLEBAND150 20
92 PJ-3050600-04 TEE 1
- -
90.IONIZERCOMPONENTS(1)
1 1
1 1
9
3
9
1 8
9
9
8
1 2
2 2
2 1
2 0
1 9
1 9
1 0
1 0
1 6
4
4
2
1
2
1 4
1 5
7
6
1 3
1 7
5
- -

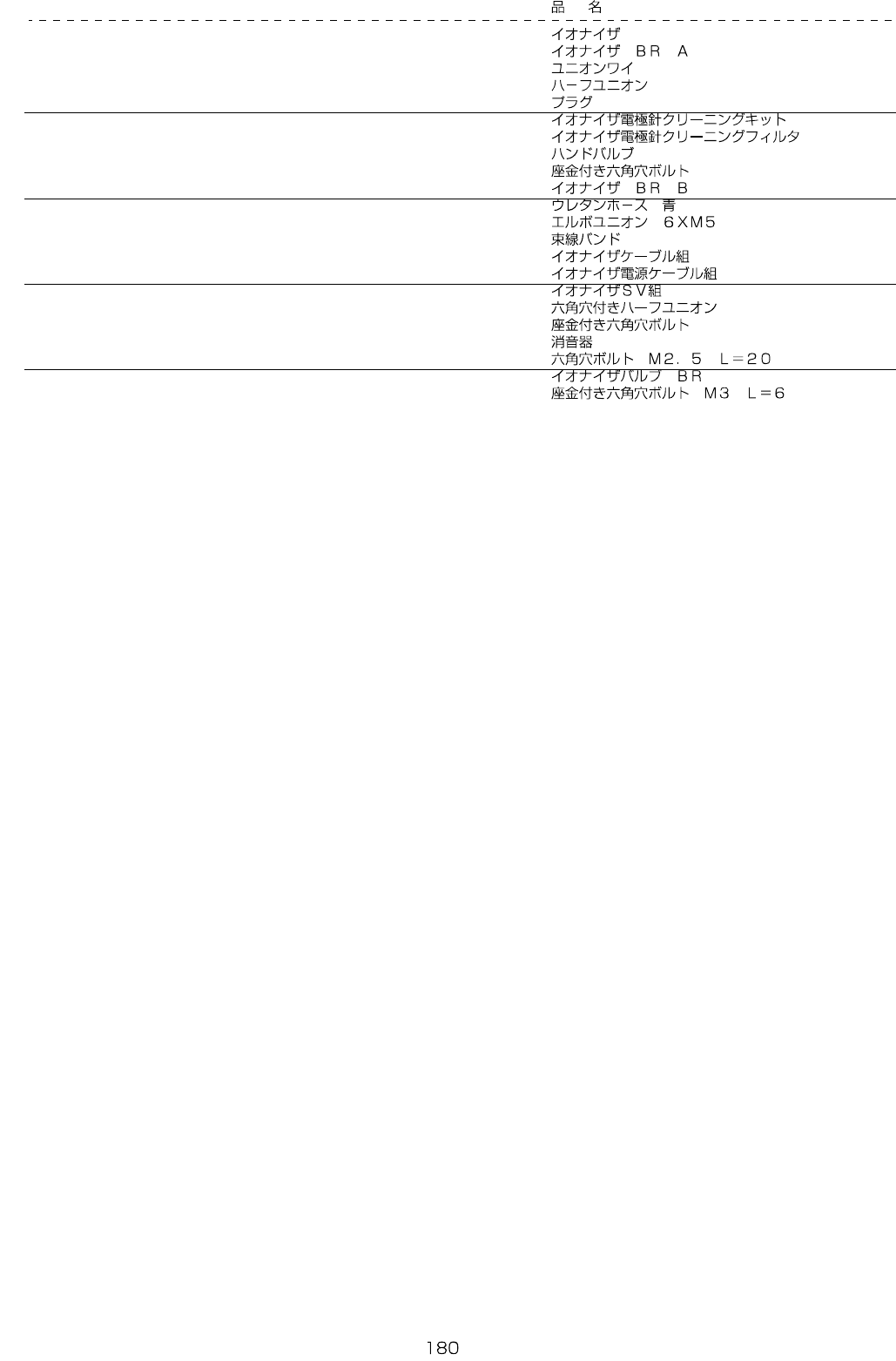

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93724 IONIZER 1
2 401-11846 IONIZERBRA 2
3 PJ-3080600-03 YUNION 1
4 PJ-3010651-03 HALFUNION6XPT1/8 2
5 PJ-0205000-02 PLUG 1
6 400-93825 IONIZERPROBECLEANINGKIT 1
7 400-93826 IONIZERPROBECLEANINGFILTER 1
8 PV-0100060-00 HANDVALVE 1
9 SL-6041092-TN SCREW 8
10 401-11847 IONIZERBRB 2
11 BT-0600400-EC TUBEHOSE,BLUE 5.4
12 PJ-3040605-02 ELBOWUNION6XM5 1
13 EA-9500B01-00 CABLEBAND 8
14 400-97626 IONIZERCABLEASM 1
15 401-13673 IONIZERPWRCABLEASM 1
16 401-13674 IONIZERSVASM 1
17 PJ-3030605-01 HALFUNION 1
18 SL-6041092-TN SCREW 4
19 PX-0505010-00 SILENCER 2
20 SM-6852002-TN SCREWM2.5L=20 2
21 401-13925 IONIZERVALVEBR 1
22 SL-6030692-TN SCREWM3L=6 2
