16 Placement Hea ds Nozzle Changers (TwinHead) The nozzle change r (NCTH) for the TwinHead (TH) can be installed a t location 1, 2, 3 and 4. The supporting plate can hold u p to 12 magazines for standard or special noz- …
15
Placement Heads
Nozzle Changers (Collect&Place Heads)
Innovation
• Nozzle changers increase
the flexibility of placement
heads when processing
different components
→ nozzle configuration
can be quickly modified
for new placement jobs
→ accurate nozzle seat
minimizes radial eccentric-
ity
→ defective nozzles are
quickly replaced
Description
Up to 6 nozzle changers can
be installed for the
6-segment or 12-segment
Collect & Place heads (C&P6
or C&P12):
Location 1: 2 nozzle changers
(NC6 or NC12)
Location 2: 1 nozzle changer
(NC6 or NC12)
Location 3: 2 nozzle changers
(NC6 or NC12)
Location 4: 1 nozzle changers
(NC6 or NC12)

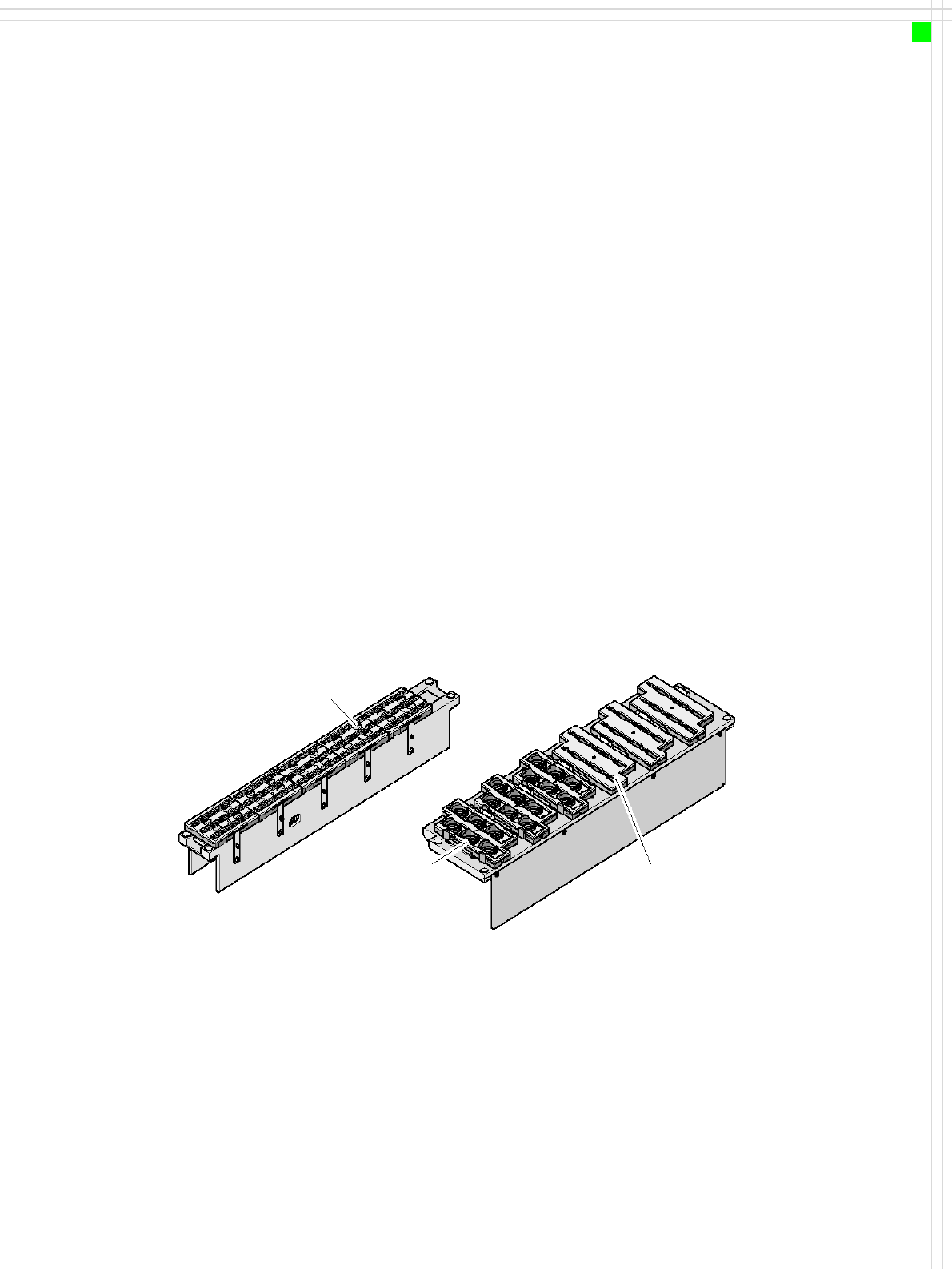

Magazine for 12
type 9xx nozzles
Magazine for 6
type 9xx nozzles
Magazine for 6
type 8xx nozzles
Nozzle changer for the
12-segment Collect & Place head (NC12)
Nozzle changer for the
6-segment Collect & Place head (NC6)
16
Placement Heads
Nozzle Changers (TwinHead)
The nozzle changer (NCTH)
for the TwinHead (TH) can be
installed at location 1, 2, 3
and 4. The supporting plate
can hold up to 12 magazines
for standard or special noz-
zles.

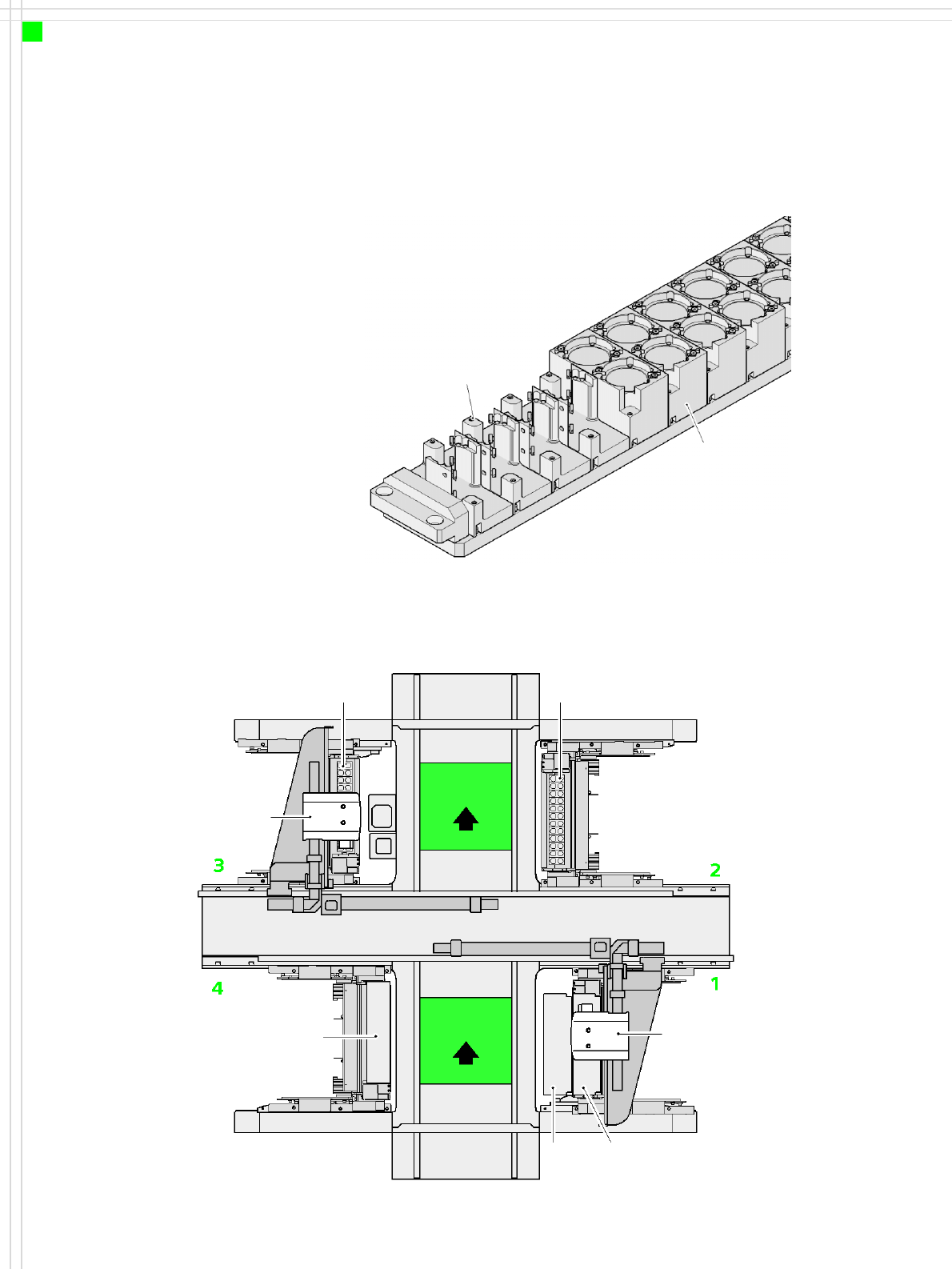

Position of the nozzle changers
Magazine for
2 standard nozzles
Magazine for
1 special nozzle,
gripper
TH
NC12 / NC12 or
NC6 / NC6
NC6/NC12
NCTH
C&P12/C&P6
PCB
PCB
NCTH
17
Placement Heads
Nozzle Changers
Technical Data
Nozzle changers for the 12-segment Collect & Place head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of magazines min. 1 / max. 5, each with 12 nozzle holders
Number of nozzle holders min. 12 / max. 60
Nozzle types 9 xx
Nozzle change time < 200 ms per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changers for the 6-segment Collect & Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of magazines min. 1 / max. 6, each with 6 nozzle holders
Number of nozzle holders min. 6 / max. 36
Nozzle types 8 xx, 9 xx
Nozzle change time < 200 ms per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changers for the SIPLACE TwinHead
Dimensions (length x width x height) 448 x 68.5 x 49 mm³
Number of magazines min. 4 / max. 12
Number of nozzle holders min. 7 / max. 20
Nozzle types 4 xx with adapter
5 xx (standard)
9 xx with adapter
Special nozzle, gripper
Nozzle change time < 2 s per nozzle
