23
Component Feeding
Component Changeover Table
Innovation
• Automatic coupling and
uncoupling
• Combined interface for
both electrical and pneu-
matic connections →
Cables no longer have to
be connected and discon-
nected manually
• Precise alignment → par-
ticularly important for
small components
• Easy to convert for other
PCB transport heights
• Tape reel diameter from 7“
up to 19“ → high flexibility
Description
Up to four component
changeover tables may be
coupled to the machine.
Optionally, a matrix tray
changer may be installed at
locations 2 or 4.
The component changeover
tables are stand-alone mod-
ules that can be set up at an
external set-up area with
feeders. In this way, changes
only interrupt the production
process for a short time. The
chassis runs smoothly and is
easy to maneuver. There are
pockets for holding set-up list
print-outs on both sides of
the component changeover
table. The operator has un-
hindered access to the docu-
ments, even during pro-
duction.
The component feeder table
has a capacity of up to 15
locations for 30 mm wide
feeders. The total capacity
with four component
changeover tables is thus
180 x 8 mm tracks.
Bulk case feeders and vibra-
tory stick feeders may be set
up in addition to the tape
feeders. Dummy feeders are
used at unassigned locations
to protect the operators.
The communication unit
sends the necessary voltages
and control signals to the
feeders.
The component feeders are
at rest during the placement
process, which means that
components can be refilled
(in sticks, for example) and
tapes may be spliced without
stopping the machine.
An optional component bar-
code reader can be used to
scan and check the barcodes
on the tape reels, thus guar-
anteeing that the compo-
nents are allocated to the
correct tracks.
Location 1
Location 2
Location 3
Location 4
24
Component Feeding
Component Changeover Table
Technical Data
Length x width 728 x 592 mm²,
752 x 592 mm² (with waste container)
Height 830 mm for 830 mm PCB transport height
900 mm for 900 mm PCB transport height
930 mm for 930 mm PCB transport height
950 mm for 950 mm PCB transport height
PCB transport height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (SMEMA)
930 mm ± 15 mm (SMEMA)
950 mm ± 15 mm (SMEMA)
Weight
without feeder
with feeders at every location
with compressed air supply for bulk case
feeder and adapter for the 3rd tape reel
approx. 85 kg
approx. 125 kg
approx. 150 kg
Reel diameter
standard
maximum
up to 432 mm (17“)
483 mm (19“)
Feeder locations max. 15
Changeover time less than 1 min.

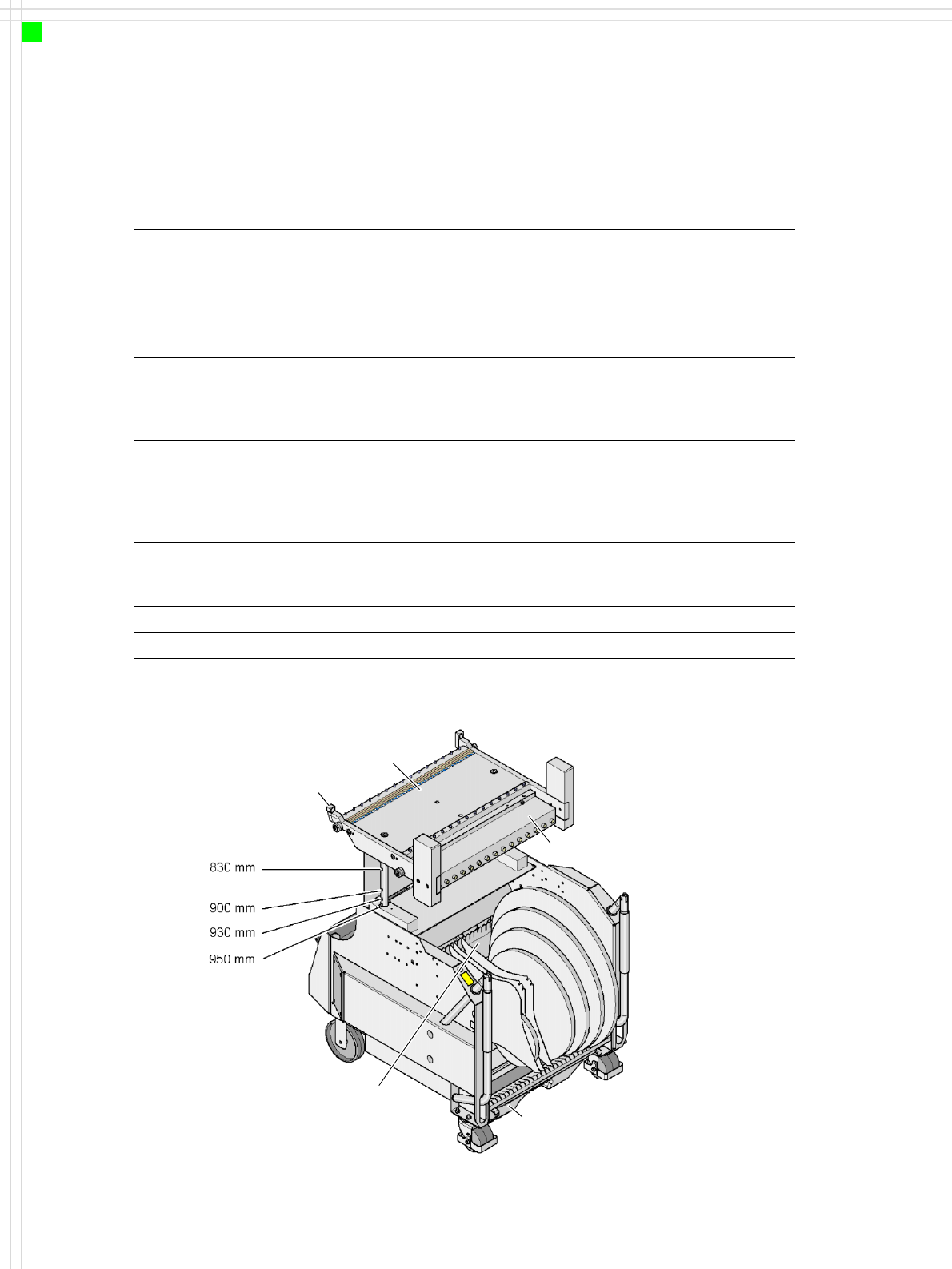

Component feeder table
Centering
Communication unit
Waste container
for pieces of used tape
Tape container
25
Component Feeding
Tape Feeders
Technical data
a) Fiducial for feeder position detection;
b) for 0201 and 0402 only;
c) variable in 4 mm increments.
Description
Only 9 different feeder sizes
are needed to feed tapes
from 8 mm to 88 mm. Reels
are kept in the tape container
on the component change-
over table. A cutting device
automatically cuts the used
tape. SIPLACE feeders have
short cycle times and high-
precision pick-up positions.
Even multiple products and
small batch sizes are easy to
handle since the feeders can
be quickly changed over.
Packaging Model Loca-
tions
Transport
distance
Max. CO
height
Paper and
blister tapes
2 x 8 mm S
a)
3 x 8 mm S
3 x 8 mm S
b)
12/16 mm S
1
1
1
1
2/4 mm
2/4 mm
2/4 mm
4/16 mm
c)
2.5 mm
2.5 mm
0.7 mm
14 mm
Blister tapes 1 x 24/32 mm S
1 x 24/32 mm S DP
1 x 44 mm S
1 x 44 mm S DP
1 x 56 mm S
1 x 56 mm S DP
1 x 72 mm S
1 x 88 mm S
1.5
1.5
2.0
2.0
2.5
2.5
3
3.5
4/40 mm
c)
4/40 mm
c)
4/52 mm
c)
4/56 mm
c)
4/68 mm
c)
4/68 mm
c)
4/80 mm
c)
4/88 mm
c)
14 mm
24 mm
14 mm
24 mm
14 mm
24 mm
14 mm
14 mm
Tape reels 178 - 483 mm diameter (7" - 19")
Feeder cycle S feeder up to 20 mm transport distance
< 150 ms
Both the tape cycle incre-
ment and the use of tape
materials are variable.
SIPLACE feeders are suitable
for both paper and plastic
tapes. This represents a sig-
nificant benefit in terms of
both cost and logistics. A sig-
nal from the communication
unit enables the feeders to
automatically control the en-
tire feeder sequence, includ-
ing automatic strip take-up.
The S feeders have shorter
cycle times and can process
tapes with a pocket pitch of
2mm (8 mm S).
The 8 mm S and 12/16 mm S
also have a component
cover.
The feeders can also be used
in other SIPLACE placement
machines.

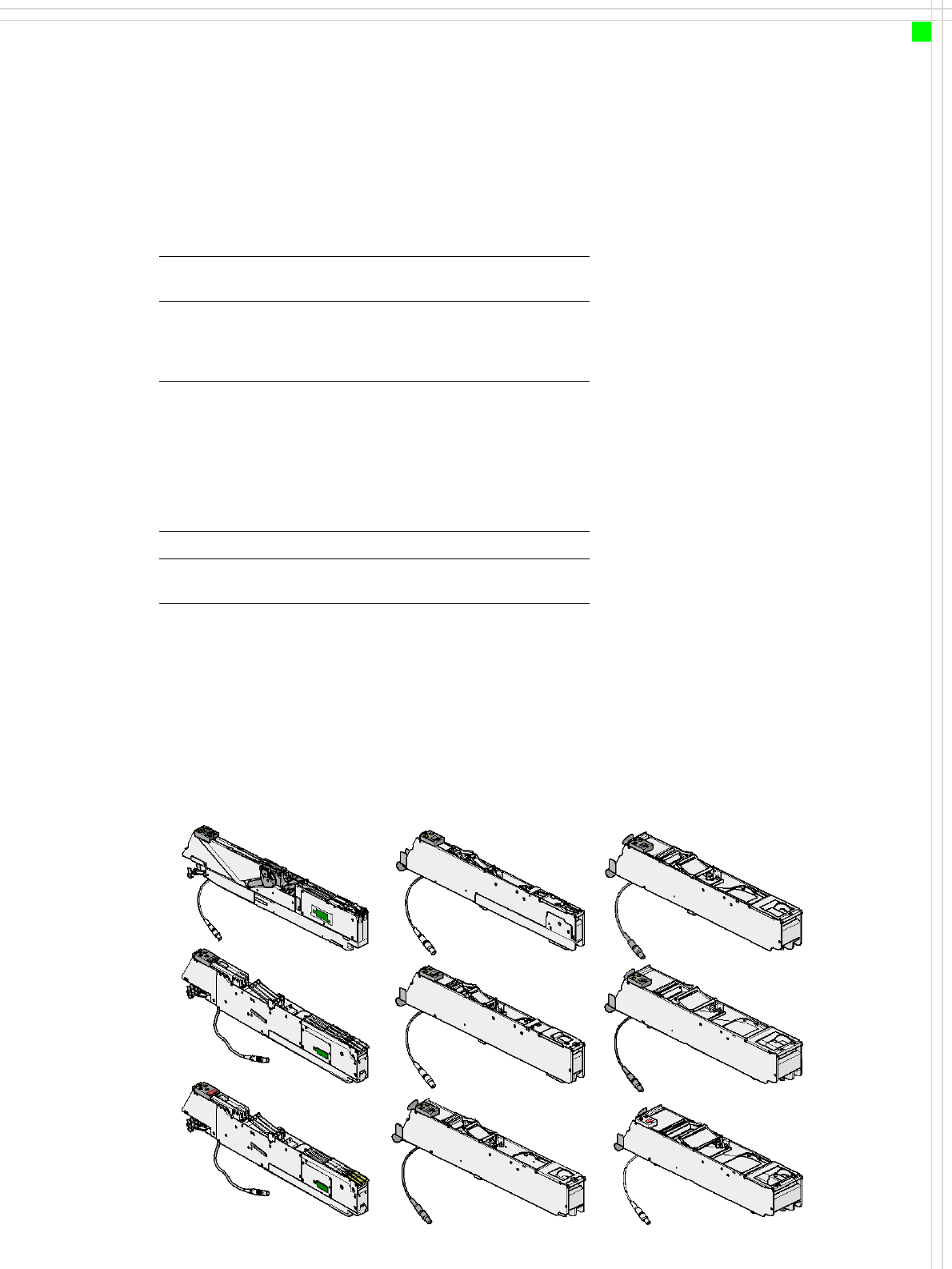

2 x 8 mm S
3 x 8 mm S
3 x 8 mm S 0201
12/16 mm S
24/32 mm S
44 mm S
56 mm S
72 mm S
88 mm S
