32 Technical Data Connectio ns Electrical ratings Compress ed air spe cification *) Co llect & Pla ce h ead **) T winHead Supply voltage 3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A. version) 3 x 230 VAC ± 5 %; 50/60 Hz 3 x 38…
31
Component Feeding
Matrix Tray Changer
Technical Data
Electrical ratings
Noise emissions
Permitted environmental factors
Supply voltage 3 x 400 VAC, 50 Hz (Europe)
3 x 208 VAC, 60 Hz (USA)
Total power 1.5 kW
Rated current 2.7 A at 3 x 400 VAC
4.2 A at 3 x 208 VAC
Fuses 3 x 16 A
Rated current consumption of the largest consumer 2 A
Maximum noise emissions 74 dB (A)
Room temperature between 15 °C and 35 °C
Atmospheric humidity
30 - 75 %
(No higher than 45% on average to prevent any
possibility of condensation on the machine)
32
Technical Data
Connections
Electrical ratings
Compressed air specification
*) Collect & Place head
**) TwinHead
Supply voltage 3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A. version)
3 x 230 VAC ± 5 %; 50/60 Hz
3 x 380 VAC ± 5 %; 50/60 Hz
3 x 400 VAC ± 5 %; 50/60 Hz (European version)
3 x 415 VAC ± 5 %; 50/60 Hz
Fuses 3 x 32 A (3 x 208 VAC / 3 x 230 VAC)
3 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
Nominal apparent power 3.3 kVA
Rated current consumption 8.2 A / 3 x 400 VAC
Power failure max. 20 msec
p
min
0.5 MPa = 5.0 bar
p
max
1.0 MPa = 10 bar
Connection
3/4" thread with 1/2" hose connection
Compressed air consumption
350 st. l/min (C&P
*
/ TH
**
)
450 st. l/min (2 x C&P
*
)
300 st. l/min (2 x TH
**
)
Particle size
0.1 µm
Particle density
0.1 mg/m³
Maximum oil content (class 1)
Particle density 0.01 mg/m³
Pressure dewpoint (class 4)
Dewpoint + 3°
33
Technical Data

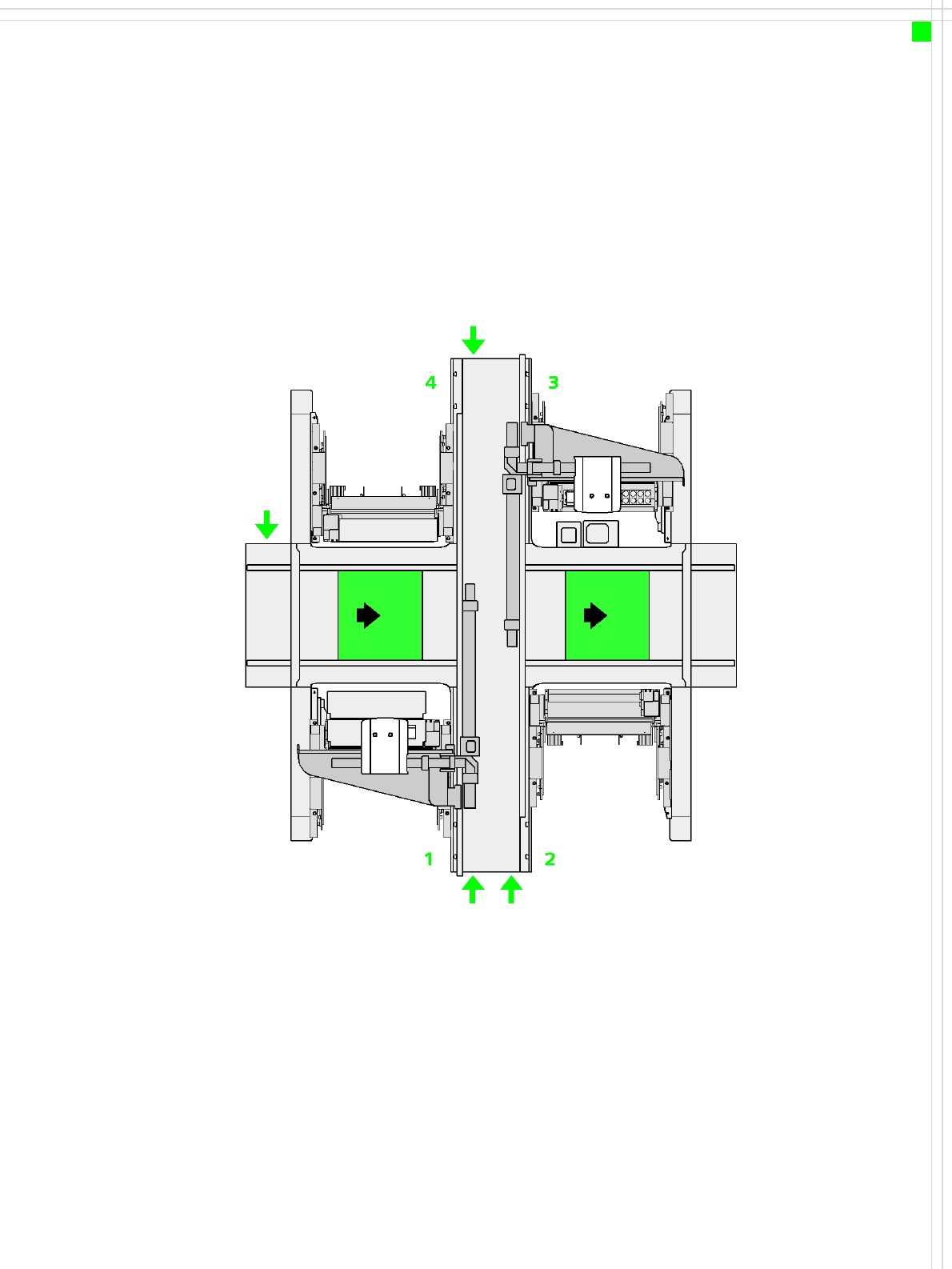

Connections
Compressed air connectionSMEMA interface
PC and LAN connection
Power connector
5 x 6 mm² cable with CEKON plug 5 x 32 A (3 x 208 VAC / 3 x 230 VAC)
5 x 4 mm² cable with CEKON plug 5 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
