Component Feeding
Tape Feeders
Technical data
a) Fiducial for feeder position detection;
b) for 0201 and 0402 only;
c) variable in 4 mm increments.
Description
Only 9 different feeder sizes
are needed to feed tapes
from 8 mm to 88 mm. Reels
are kept in the tape container
on the component change-
over table. A cutting device
automatically cuts the used
tape. SIPLACE feeders have
short cycle times and high-
precision pick-up positions.
Even multiple products and
small batch sizes are easy to
handle since the feeders can
be quickly changed over.
Packaging Model Loca-
tions
Transport
distance
Max. CO
height
Paper and
blister tapes
2 x 8 mm S
a)
3 x 8 mm S
3 x 8 mm S
b)
12/16 mm S
1
1
1
1
2/4 mm
2/4 mm
2/4 mm
4/16 mm
c)
2.5 mm
2.5 mm
0.7 mm
14 mm
Blister tapes 1 x 24/32 mm S
1 x 24/32 mm S DP
1 x 44 mm S
1 x 44 mm S DP
1 x 56 mm S
1 x 56 mm S DP
1 x 72 mm S
1 x 88 mm S
1.5
1.5
2.0
2.0
2.5
2.5
3
3.5
4/40 mm
c)
4/40 mm
c)
4/52 mm
c)
4/56 mm
c)
4/68 mm
c)
4/68 mm
c)
4/80 mm
c)
4/88 mm
c)
14 mm
24 mm
14 mm
24 mm
14 mm
24 mm
14 mm
14 mm
Tape reels 178 - 483 mm diameter (7" - 19")
Feeder cycle S feeder up to 20 mm transport distance
< 150 ms
Both the tape cycle incre-
ment and the use of tape
materials are variable.
SIPLACE feeders are suitable
for both paper and plastic
tapes. This represents a sig-
nificant benefit in terms of
both cost and logistics. A sig-
nal from the communication
unit enables the feeders to
automatically control the en-
tire feeder sequence, includ-
ing automatic strip take-up.
The S feeders have shorter
cycle times and can process
tapes with a pocket pitch of
2mm (8 mm S).
The 8 mm S and 12/16 mm S
also have a component
cover.
The feeders can also be used
in other SIPLACE placement
machines.
2 x 8 mm S
3 x 8 mm S
3 x 8 mm S 0201
12/16 mm S
24/32 mm S
44 mm S
56 mm S
72 mm S
88 mm S
26
Component Feeding

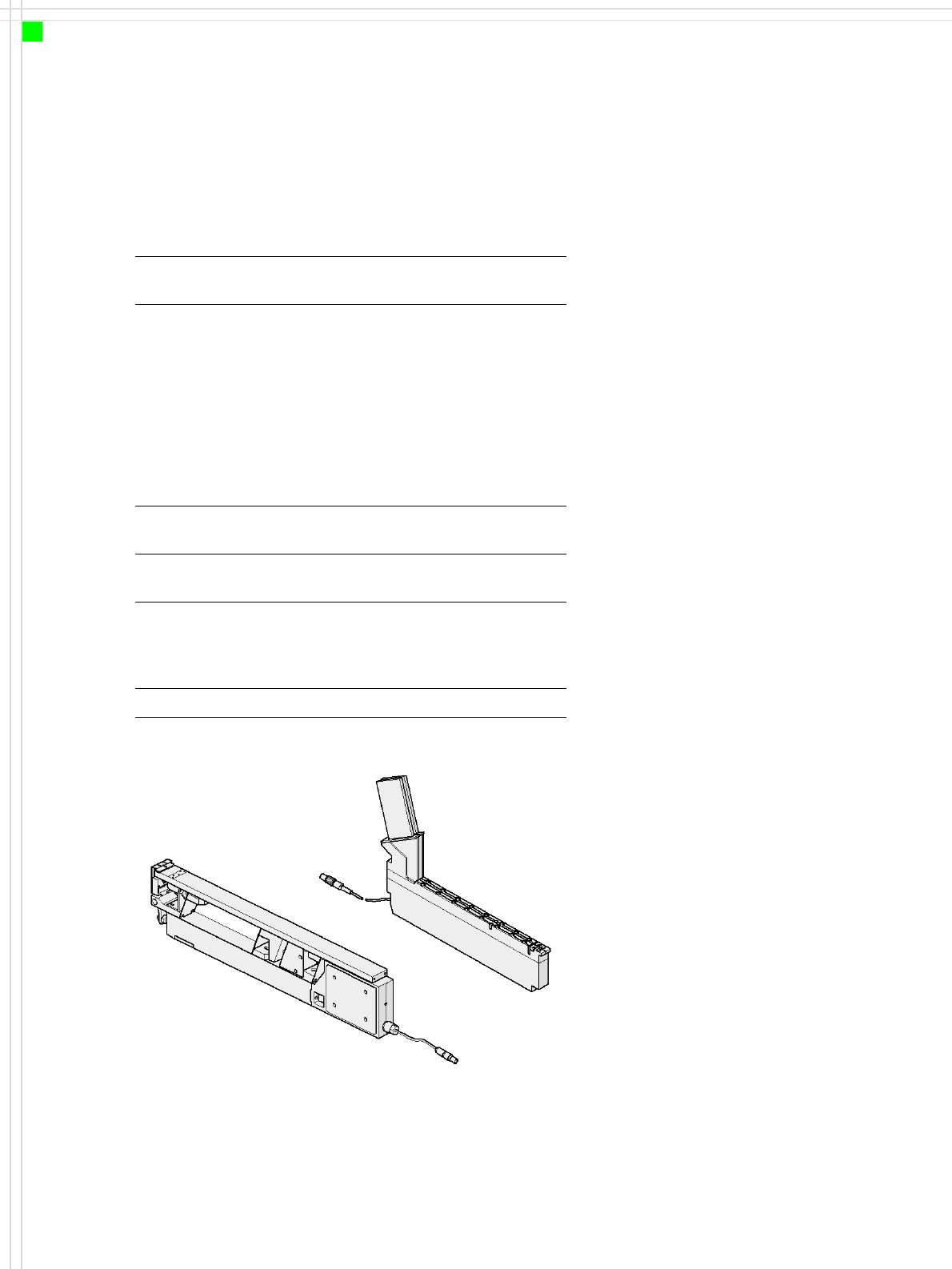

Bulk Case Feeder
Technical data
a) Fiducial for feeder position detection
Bulk case feeder
a)
Packaging form Bulk case
Feeder rails Chip 0402 CO height: 0.35 mm
Chip 0402 CO height: 0.50 mm
Chip 0603 CO height: 0.45 mm
Chip 0603 CO height: 0.80 mm
Chip 0805 CO height: 0.45 mm
Chip 0805 CO height: 0.60 mm
Chip 0805 CO height: 0.85 mm
Chip 0805 CO height: 1.25 mm
Micro-Melf: 1.05 ± 0.05 mm
Mini-Melf: 1.4 ± 0.1 mm
Location 1 location for 2 different compo-
nent types
Vibratory stick feeder,
type 3
with control circuit
Number of tracks and
width
3 x 9.5 mm
2 x 15 mm
1 x > 15 mm
1 x 30 mm
Location 1 location
Description
The SIPLACE bulk case feeder
processes bulk cases on two
tracks. It feeds rectangular
and round, passive compo-
nents. The PCB magazines
(bulk cases) are simply re-
placed for refilling - without
stopping the machine.
The module essentially con-
sists of the basic element plus
two feeder rails and PCB mag-
azines to suit the component
type and height. The compo-
nents are separated and fed
along the rails by compressed
air.
The principle of the fixed
component pocket has prov-
en most suitable, even when
using bulk cases: the vibra-
tions that occur with other
placement machine concepts
can greatly impair the com-
ponent quality due to fric-
tion, for example.
The stationary component
feeder also has significant
advantages with stick maga-
zines: the universal vibratory
stick feeder can be refilled
during placement.
Bulk case feeder
Vibratory -
stick feeder, type 3
27
Component Feeding
Dummy Feeders
Danger
To ensure that your SIPLACE
placement machine runs safe-
ly, a feeder must be assigned
to every location on the com-
ponent changeover table. If
you do not have enough
feeders, then you should use
dummy feeders as space
holders.
The following dummy feeders may be used:
SIPLACE dummy feeder for 1 location
SIPLACE dummy feeder for 6 - 10 locations
SIPLACE dummy feeder for 11 - 20 locations
Dummy feeder for 1 location
Dummy feeder for
6 - 10 locations
Dummy feeder for
11 - 20 locations
