Component Feeding

Dummy Feeders

Danger

To ensure that your SIPLACE

placement machine runs safe-

ly, a feeder must be assigned

to every location on the com-

ponent changeover table. If

you do not have enough

feeders, then you should use

dummy feeders as space

holders.

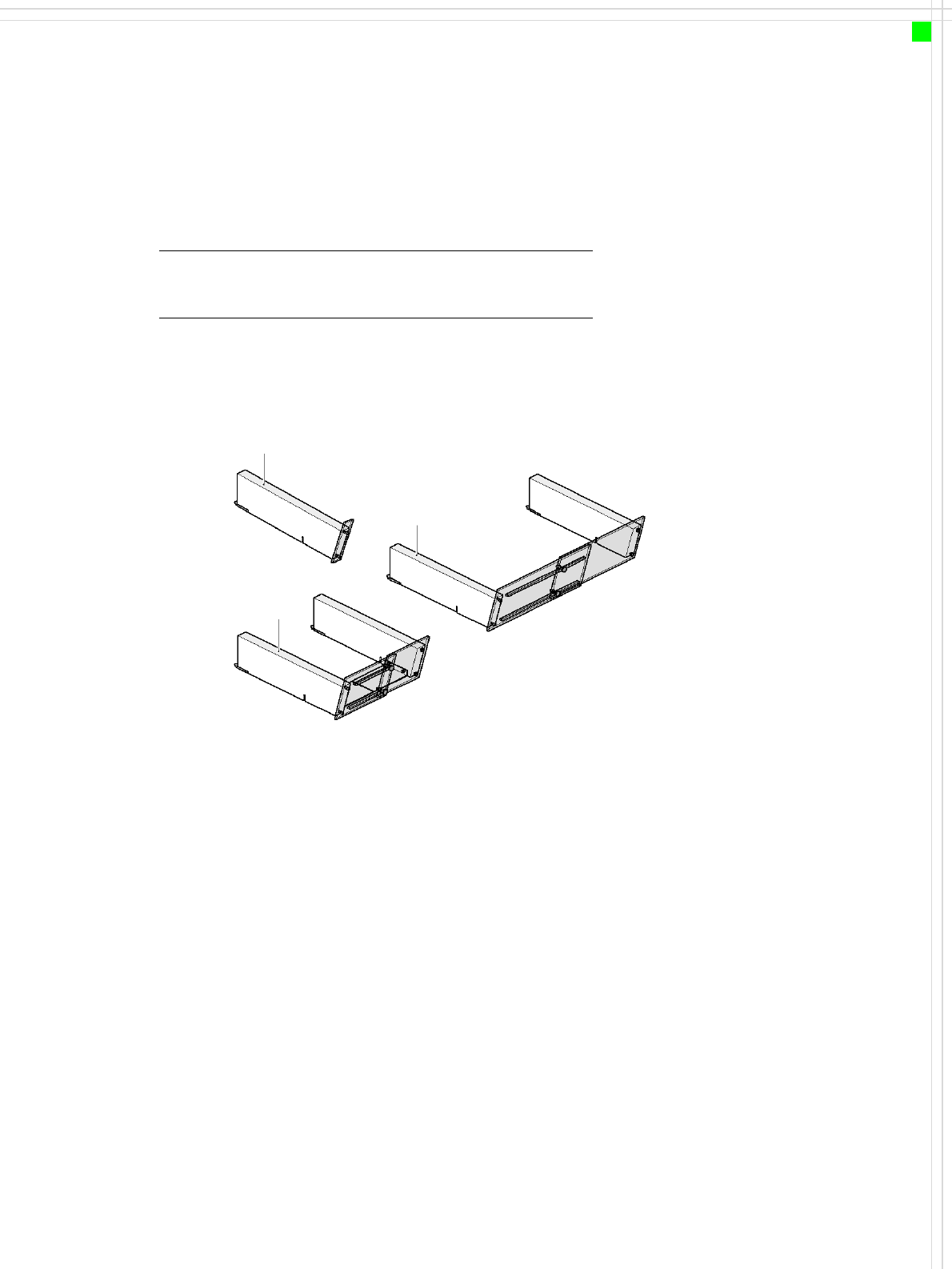

The following dummy feeders may be used:

SIPLACE dummy feeder for 1 location

SIPLACE dummy feeder for 6 - 10 locations

SIPLACE dummy feeder for 11 - 20 locations

Dummy feeder for 1 location

Dummy feeder for

6 - 10 locations

Dummy feeder for

11 - 20 locations

Component Feeding

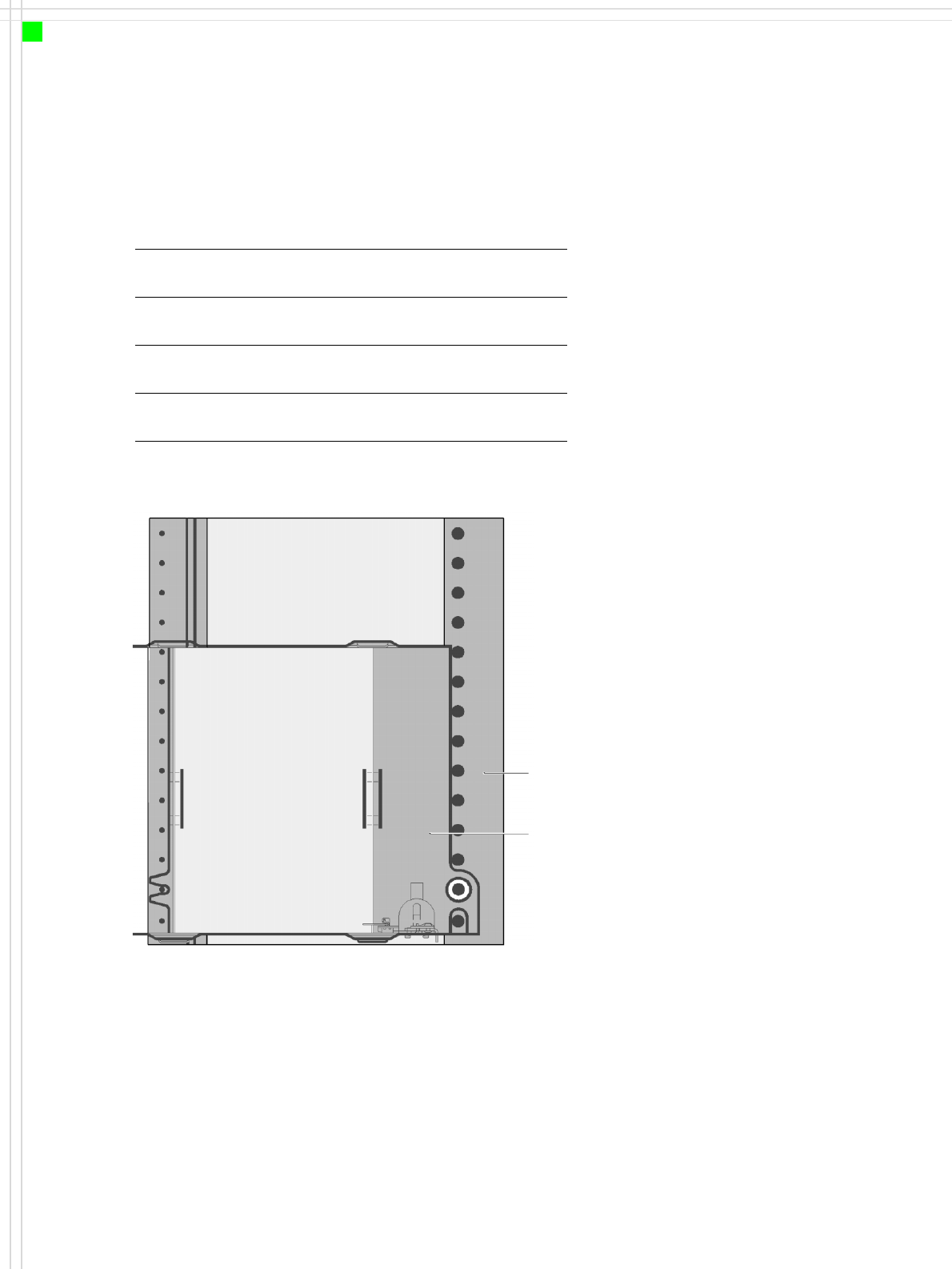

Manual Trays

Manual tray

Component feeder table

Waffle tray

Description

The manual tray is a device

for holding JEDEC trays used

to supply components. The

waffle trays are changed

manually. The manual tray is

placed on the component

feeder table just like a feeder.

There are two different ver-

sions of the waffle tray: one

fills 5 locations, while the

other takes up 9 locations on

the component feeder table.

On the SIPLACE HF, the man-

ual tray is used at location 2

or location 4. This option is

recommended if there are

only a few types of compo-

nent to be placed from a tray.

Technical data

Manual tray - possible positions

Sizes 136 x 360 mm²; requires 5 locations

260 x 360 mm²; requires 9 locations

Max. tray

height

12.5 mm, including component

Parts Waffle tray carrier

Tray holder

JEDEC waffle

tray

Directly in the waffle tray carrier

136 mm wide

Component Feeding

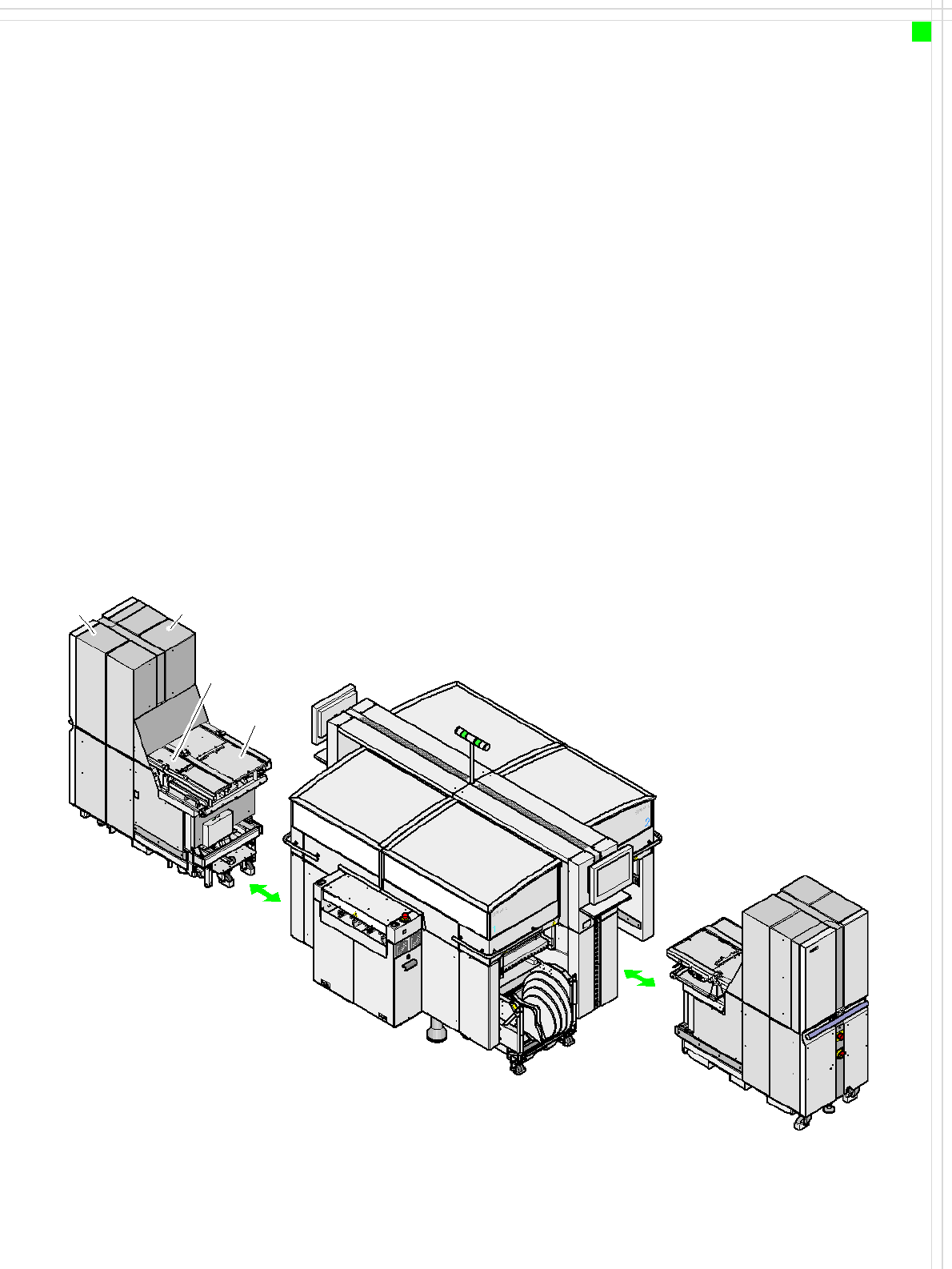

Matrix Tray Changer

Innovation

• Two mutually-indepen-

dent bins → optional, pro-

grammable access to all

waffle trays

• Capacity of up to 100

JEDEC trays → production

is not interrupted when

the tray is changed

• Integral chassis → easy to

couple

• PCB transport height can

be changed with just a few

easy actions

Description

For numerous tray fed com-

ponents we recommend an

automatic tray chang using a

matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled. Two bins

with trays move indepen-

dently of one another in the

vertical direction until the

desired magazine is within

the range of the feed axis.

The horizontal feed axis

transports the tray from the

bin to within the range of the

placement head. The first

magazine is made available

as soon as a PCB moves onto

the PCB conveyor, and valid

panel and set-up data is avail-

able. All other magazine

changes are carried out time-

neutrally during the place-

ment process. The maga-

zines can be refilled without

stopping the machine. Defec-

tive components are re-

turned to the original tray.

Tray supply 2 Tray supply 1

Feed axis 1

Feed axis 2
