37 Engagement point for the fork-lift Engagement point for the fork-lift Technical Data Transport and Delivery Configuration Transport dimensions and weight Means of transport A fork-lift truck with the following specifi…
36
Technical Data
Maneuvering Radii
MTC Dimensions and Set-Up Conditions
37

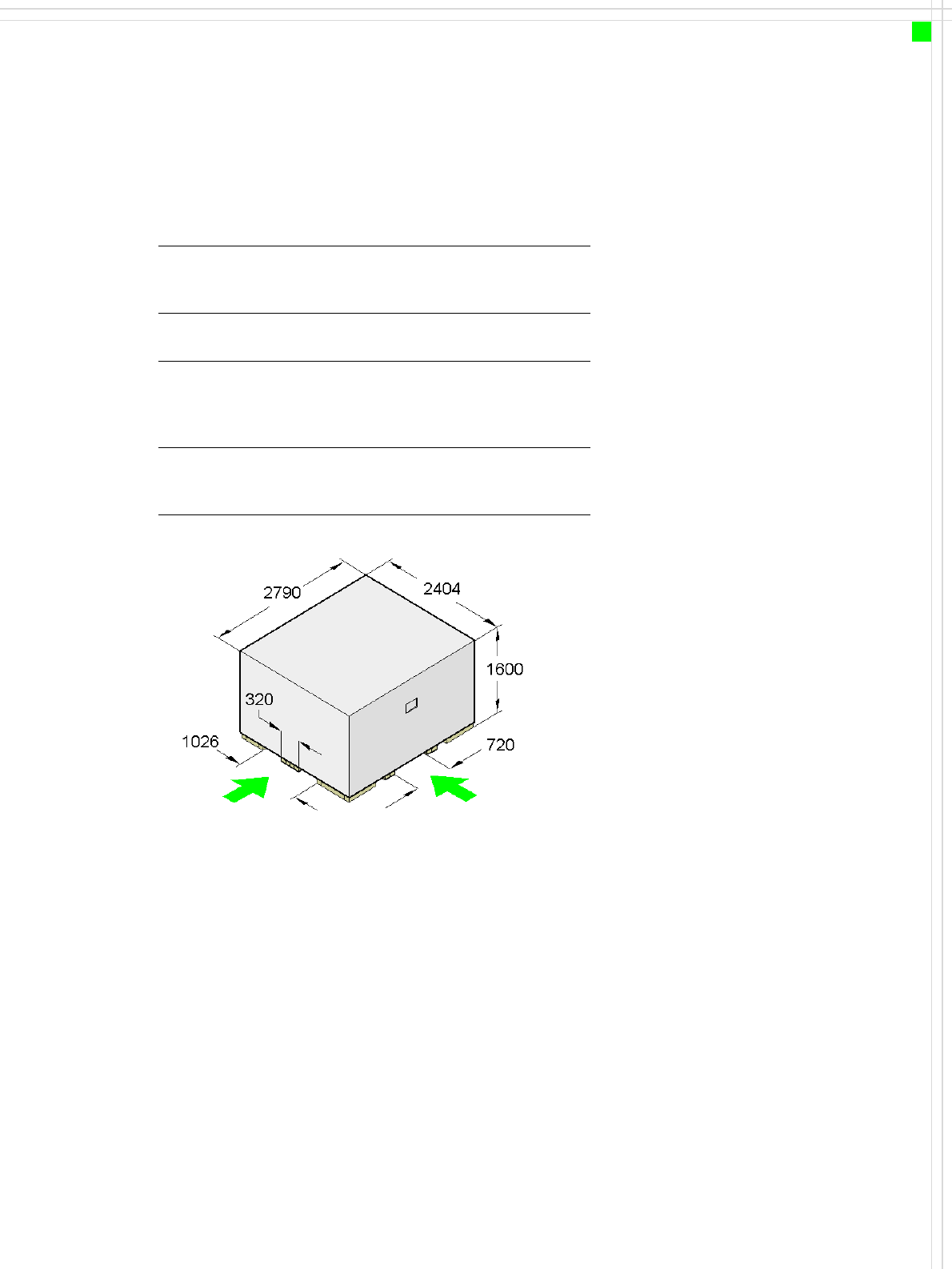

Engagement point
for the fork-lift
Engagement point
for the fork-lift
Technical Data
Transport and Delivery Configuration
Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2404 mm
2790 mm
1600 mm
Weight 3920 kg (dispatch within Europe)
4420 kg (dispatch overseas)
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Description
The placement machine is
supplied in a wooden crate,
mounted on a stable wooden
pallet.
Configuration when
delivered
• The extension kit on the
PCB input side and the
computer unit are discon-
nected from the basic
machine.
• All electrical cables to the
basic machine are discon-
nected.
• Each track on the single or
dual conveyor is set to a
width of 136 mm.
• The input conveyors of the
single and dual conveyor
are dismantled. The electri-
cal cables to the conveyor
motors and light barriers
are disconnected.
• Both keyboards are folded
down vertically.
• The main fault indicator is
dismantled.
38
Sample Configuration
Services
As a service, SIEMENS A&D
EA can fully integrate the
SIPLACE HF placement
machine into your produc-
tion line. With our extensive
expertise and by using the
right tools and equipment,
we can ensure that the instal-
lation process runs smoothly
and efficiently. However, this
will require you to clarify the
infrastructure aspects in ad-
vance and make any neces-
sary changes at your
production facility.
Safety instructions
Read the operating instruc-
tions before starting to set up
and commission the place-
ment machine. The appli-
cable accident prevention
regulations concerning the
transportation of heavy
goods must be followed.
PCB transport direction
Nozzle changer C&P12
Fine pitch vision module
Nozzle changer C&P12
Flip chip vision module
TH
C&P12
Component
changeover table
with 15 locations
Component reject bin TH
Nozzle changer TH
5-part conveyor belt
with automatic width adjustment
from 50 mm to 508 mm (2“ to 20“)
