Installing the MaterialManager

Installation Manual SIPLACE Material ManagerV2.1 25

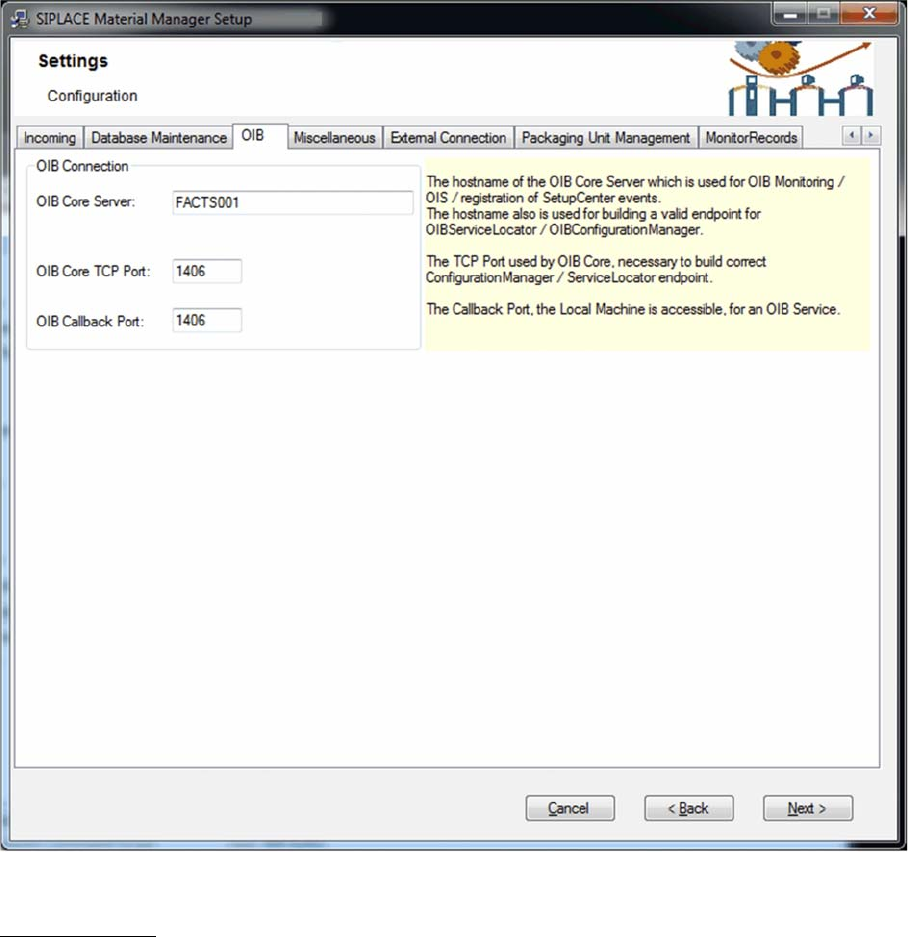

Configuring Material Manager – OIB tab

OIB Connection

(OIB = Operations Information Broker)

Settings for the server on which the OIB core is installed.

OIB Core Server

Name of the server on which the OIB core is installed.

OIB Core TCP Port

Number of the port that shall be used for the communication with the OIB server.

OIB Callback Port

Number of the callback port that shall be used for the communication with the OIB server.

Installing the MaterialManager

26 Installation Manual SIPLACE Material ManagerV2.1

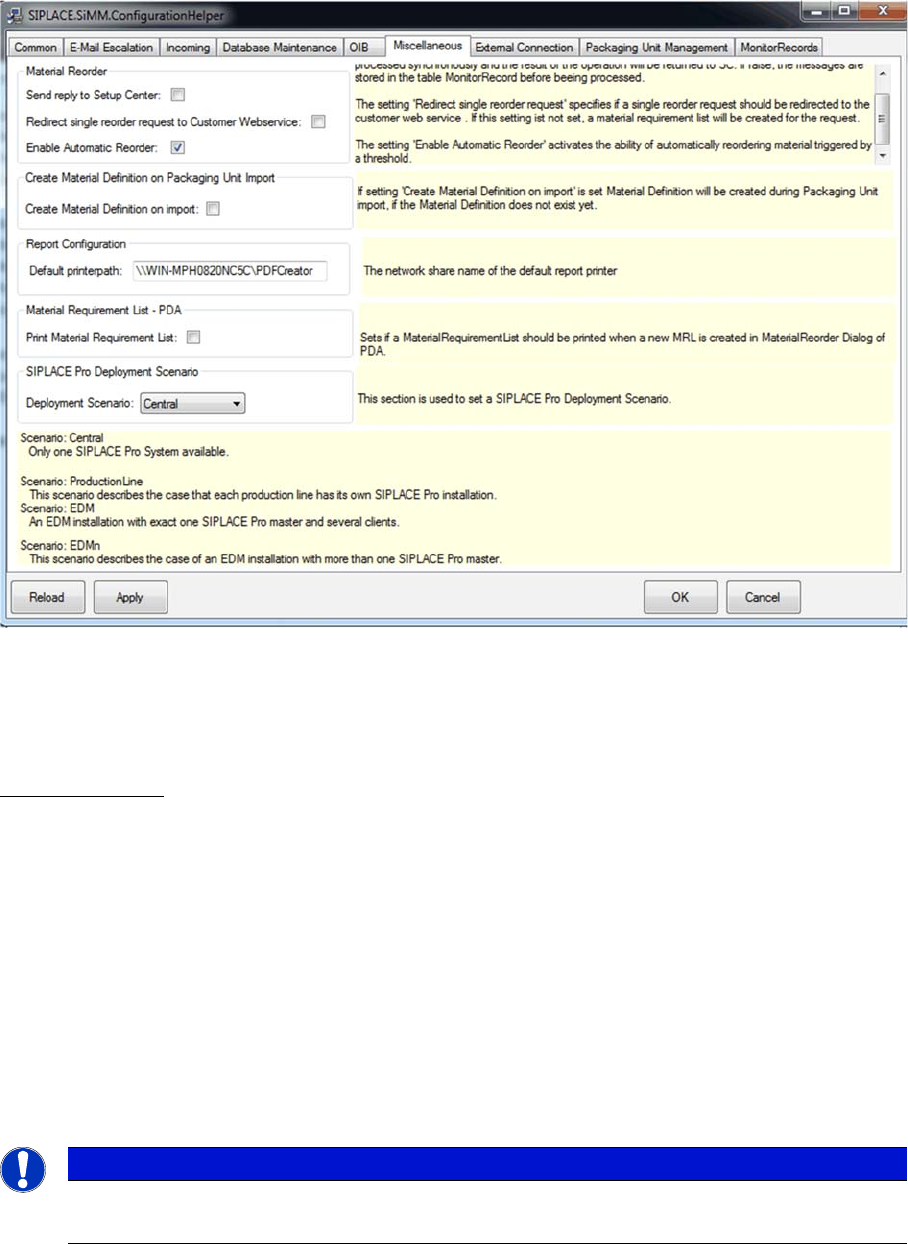

Configuring Material Manager – Miscellaneous tab

In this tab you set various parameters, such as default report printer, synchronization with SIPLACE Set

up Center, handling of unknown material definitions, SIPLACE Pro deployment scenarios and printing

material requirement lists.

Material Reorder

Send Reply to Setup Center

If this option is enabled, the responses of the external storage system to material requirements will be

transmitted to Setup Center.

Redirect single reorder request to Customer Web Service

If a group of materials is ordered from the Setup Center, a material requirements list is created and then

processed systematically in the Material Manager.

If only one material item is ordered from the Setup Center, you can use this option to specify how the

reordering should be processed.

If this option is enabled, reordering is forwarded via the Customer Web Service to an external system,

which then processes this reorder.

If this option is disabled, a material requirements list is created for this material and then systematically

processed in the Material Manager.

Enable Automatic Reorder

For the reordering of materials, you can configure threshold values as of which materials are to be au

tomatically requested in a specific quantity from the supply storage zone.

You use this option to enable or disable automatic reordering.

NOTICE

Required software

This function requires software that has to be created by the customer.

Installing the MaterialManager

Installation Manual SIPLACE Material ManagerV2.1 27

Create Material Definition on Packaging Unit import

Create Material Definition on Import

If this option is enabled, a material definition is generated for a packaging unit if it is registered in the

Material Manager via the Web service interface or via a PackagingUnitCreated message from SIPLACE

Setup Center and the provided part number is unknown to the Material Manager.

Report Configuration

Default printerpath

Path and network name of the preset report printer.

Material Requirement List – PDA

The operator can require a material reorder over PDA. If another colleague as the operator has to pro

vide the material from the storage, this colleague should be informed accordingly.

Print Material Requirement List

If this option is enabled, the corresponding material requirement list will be printed when a material re

order is required (ideally, on a printer close by the storage location).

Otherwise, the material requirement list will not be printed, e.g. because the operator picks up the re

quired material himself.

SIPLACE Pro Deployment Scenario

Deployment Scenario

▪ Central

This setting means that a single SIPLACE Pro system is used for all production lines.

▪ ProductionLine

This setting means that a separate SIPLACE Pro system is used for each production line.

▪ EDM

This setting is a mixture of the Central and ProductionLine options, i.e. an overall SIPLACE Pro sys

tem is used as master for multiple production lines for which, on the other hand, separate SIPLACE

Pro system are used as clients in addition.

▪ EDMn

This setting complies with the EDM option and applies if several scenarios of that type are used.
