00197500-04_IM_Material_Manager_2.1_EN.pdf - 第28页

Installing the MaterialManager 28 Installation Manual SIPLACE Material ManagerV2.1 Configuring Material Manager – External Connections tab In this tab you set the connec tions to o ther ex ternal sys tems. SiMM Customer…

Installing the MaterialManager

Installation Manual SIPLACE Material ManagerV2.1 27

Create Material Definition on Packaging Unit import

Create Material Definition on Import

If this option is enabled, a material definition is generated for a packaging unit if it is registered in the

Material Manager via the Web service interface or via a PackagingUnitCreated message from SIPLACE

Setup Center and the provided part number is unknown to the Material Manager.

Report Configuration

Default printerpath

Path and network name of the preset report printer.

Material Requirement List – PDA

The operator can require a material reorder over PDA. If another colleague as the operator has to pro

vide the material from the storage, this colleague should be informed accordingly.

Print Material Requirement List

If this option is enabled, the corresponding material requirement list will be printed when a material re

order is required (ideally, on a printer close by the storage location).

Otherwise, the material requirement list will not be printed, e.g. because the operator picks up the re

quired material himself.

SIPLACE Pro Deployment Scenario

Deployment Scenario

▪ Central

This setting means that a single SIPLACE Pro system is used for all production lines.

▪ ProductionLine

This setting means that a separate SIPLACE Pro system is used for each production line.

▪ EDM

This setting is a mixture of the Central and ProductionLine options, i.e. an overall SIPLACE Pro sys

tem is used as master for multiple production lines for which, on the other hand, separate SIPLACE

Pro system are used as clients in addition.

▪ EDMn

This setting complies with the EDM option and applies if several scenarios of that type are used.

Installing the MaterialManager

28 Installation Manual SIPLACE Material ManagerV2.1

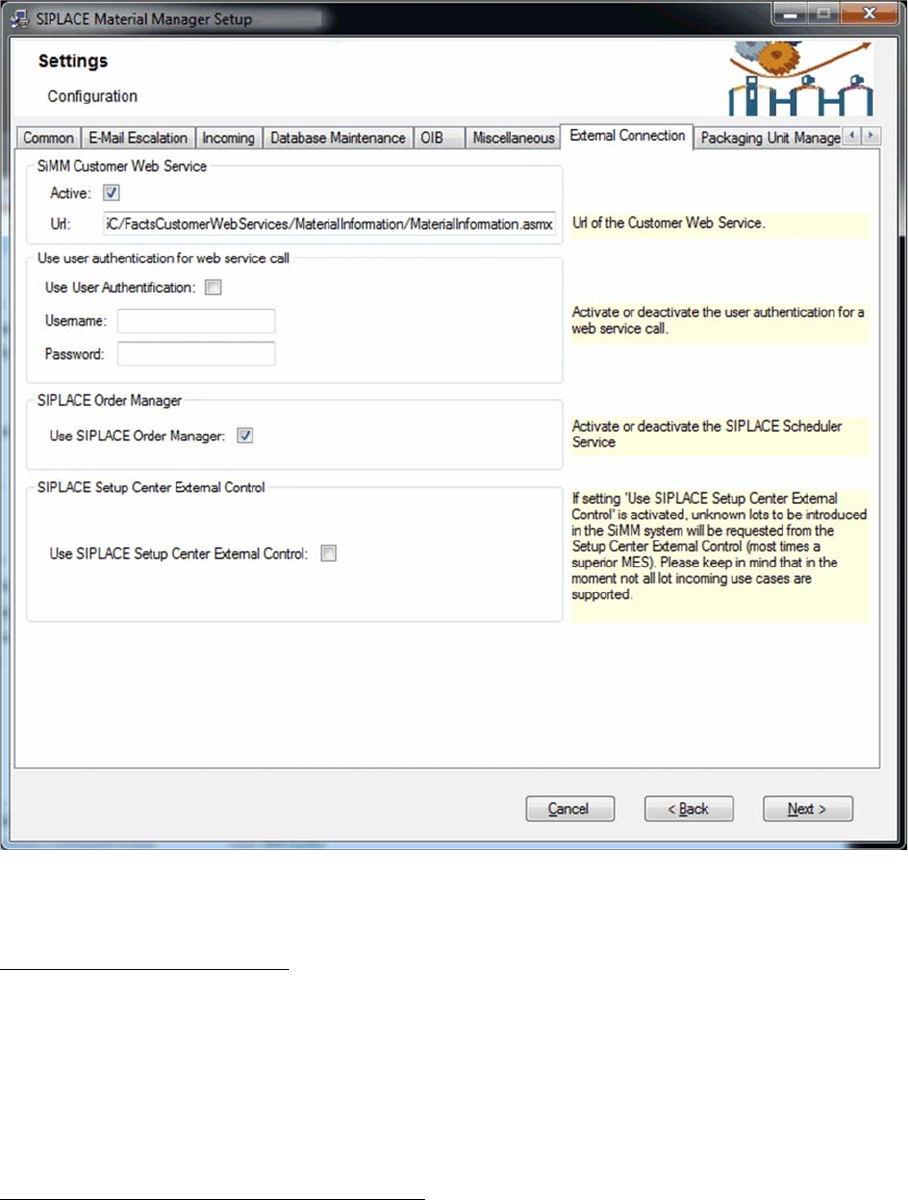

Configuring Material Manager – External Connections tab

In this tab you set the connections to other external systems.

SiMM Customer Web Service

Active

If this option is enabled, the Material Manager will be connected to the Web service over the address

defined below.

URL

Address over which the Material Manager will be connected to a Customer Web Service.

It is recommended to use the preset SiMM Customer Web Service.

Use user authentication for web service call

Use User Authentication

Enable this option if you want to use the following authentication data to log on to the server on which

the Customer Web Service is installed.

User name

Name (user account) with which the user log on to the system.

Password

Password of the user account.

Installing the MaterialManager

Installation Manual SIPLACE Material ManagerV2.1 29

SIPLACE Order Manager

Use SIPLACE Order Manager

Enable this option if the Material Manager has to be registered for the SIPLACE Order Manager (i.e., to

use the Material Setup Assistant).

SIPLACE Setup Center External Control

User SIPLACE Setup Center External Control

Enable this option if you want to connect the Material Manager to a superordinate Manufacturing Exe

cution System (MES).
