1. 2. 3. 4.5.3 Configuring the IP Address N O T I C E For version 1.x of the EtherNet/IP Card, changes made via the web server are not stored in the soft starter and will be lost when control power is cycled. 1 2 3 e77ha…

100%1 / 38
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.5.2.1 Adding a User
1
2
3
5
6
e77ha808.10
4
Procedure
Connect to the web server and click Administration.
Click Create new user.
Enter the new username and password.
Click Create an account.
Set privileges (user, supervisor, administrator) as appropriate.
Click Save changes.
4.5.2.2 Deleting a User
Procedure
Connect to the web server and click Administration.
Select the required entry in the user list and click Delete.
Click Delete again to confirm the action.
AN353423548483en-000201 / 130R0945 | 13Danfoss A/S © 2022.10
Device Configuration
EtherNet/IP Card
Installation Guide
1.
2.
3.
4.5.3 Configuring the IP Address
N O T I C E
For version 1.x of the EtherNet/IP Card, changes made via the web server are not stored in the soft starter and will be lost when
control power is cycled.
1
2
3
e77ha806.10
Procedure
Connect to the web server and click IP Setting.
Edit settings as required. To enable DHCP addressing, tick the DHCP checkbox.
Click Submit to send the new settings to the device.
4.5.4 Configure IoT Settings
The EtherNet/IP Card supports soft starter status monitoring via IoT. The card cannot control or program the soft starter.
N O T I C E
Version 1.x of the EtherNet/IP Card does not support IoT operation.
AN353423548483en-000201 / 130R094514 | Danfoss A/S © 2022.10
Device Configuration
EtherNet/IP Card
Installation Guide
1.
2.
3.
4.
5.
6.

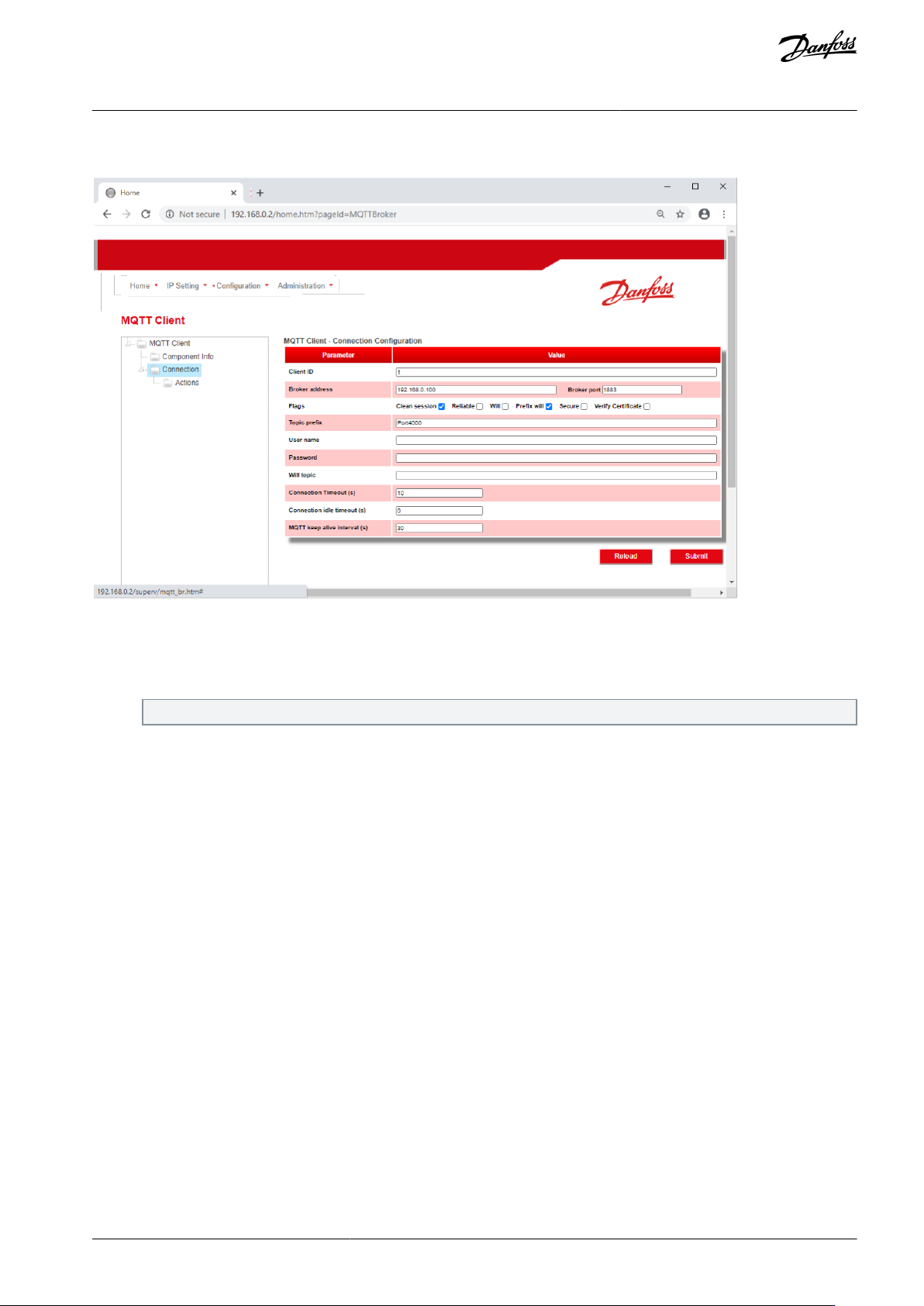

4.5.4.1 Configuring MQTT Settings
e77ha810.10
Procedure
Connect to the web server and click Configuration.
Select MQTT Client.
Tick the Enable checkbox to enable MQTT client operation.
The MQTT client is enabled by default.
Click Connection and configure the settings as required.
Click Connections⇒Actions to select which information the card should publish.
Click Submit to save all settings in the card.
AN353423548483en-000201 / 130R0945 | 15Danfoss A/S © 2022.10
Device Configuration
EtherNet/IP Card
Installation Guide
