1. 2. 3. 4. 5. 6. 4.5.4.2 Configuring OPC UA Settings e77ha813.10 Procedure Connect to the web server and click Configuration . Select OPC UA Server . Tick the Enable checkbox to enable OPC UA client operation. The OPC U…

100%1 / 38
1.
2.
3.
4.
5.
6.
4.5.4.1 Configuring MQTT Settings
e77ha810.10
Procedure
Connect to the web server and click Configuration.
Select MQTT Client.
Tick the Enable checkbox to enable MQTT client operation.
The MQTT client is enabled by default.
Click Connection and configure the settings as required.
Click Connections⇒Actions to select which information the card should publish.
Click Submit to save all settings in the card.
AN353423548483en-000201 / 130R0945 | 15Danfoss A/S © 2022.10
Device Configuration
EtherNet/IP Card
Installation Guide
1.
2.
3.
4.
5.
6.
4.5.4.2 Configuring OPC UA Settings
e77ha813.10
Procedure
Connect to the web server and click Configuration.
Select OPC UA Server.
Tick the Enable checkbox to enable OPC UA client operation.
The OPC UA client is enabled by default.
Click Server Configuration and configure the settings as required.
Select Actions to select the actions for different object instances.
Click Submit to save all settings in the card.
4.6 Scanning the Network
If there is no connection to the web server and the soft starter cannot be accessed physically, use the Ethernet Device Configuration
Tool to scan the network and identify the device. Changes made via the Ethernet Device Configuration Tool cannot be stored per-
manently in the device and will be lost when the control power is cycled.
Download the Ethernet Device Configuration Tool from
www.danfoss.com under the sections Service and Support/Downloads.
N O T I C E
If the PC has a firewall enabled, add the tool to the list of authorized programs.
AN353423548483en-000201 / 130R094516 | Danfoss A/S © 2022.10
Device Configuration
EtherNet/IP Card
Installation Guide
1.
2.
3.
4.6.1 Identifying the Device with Ethernet Device Configuration Tool
Procedure

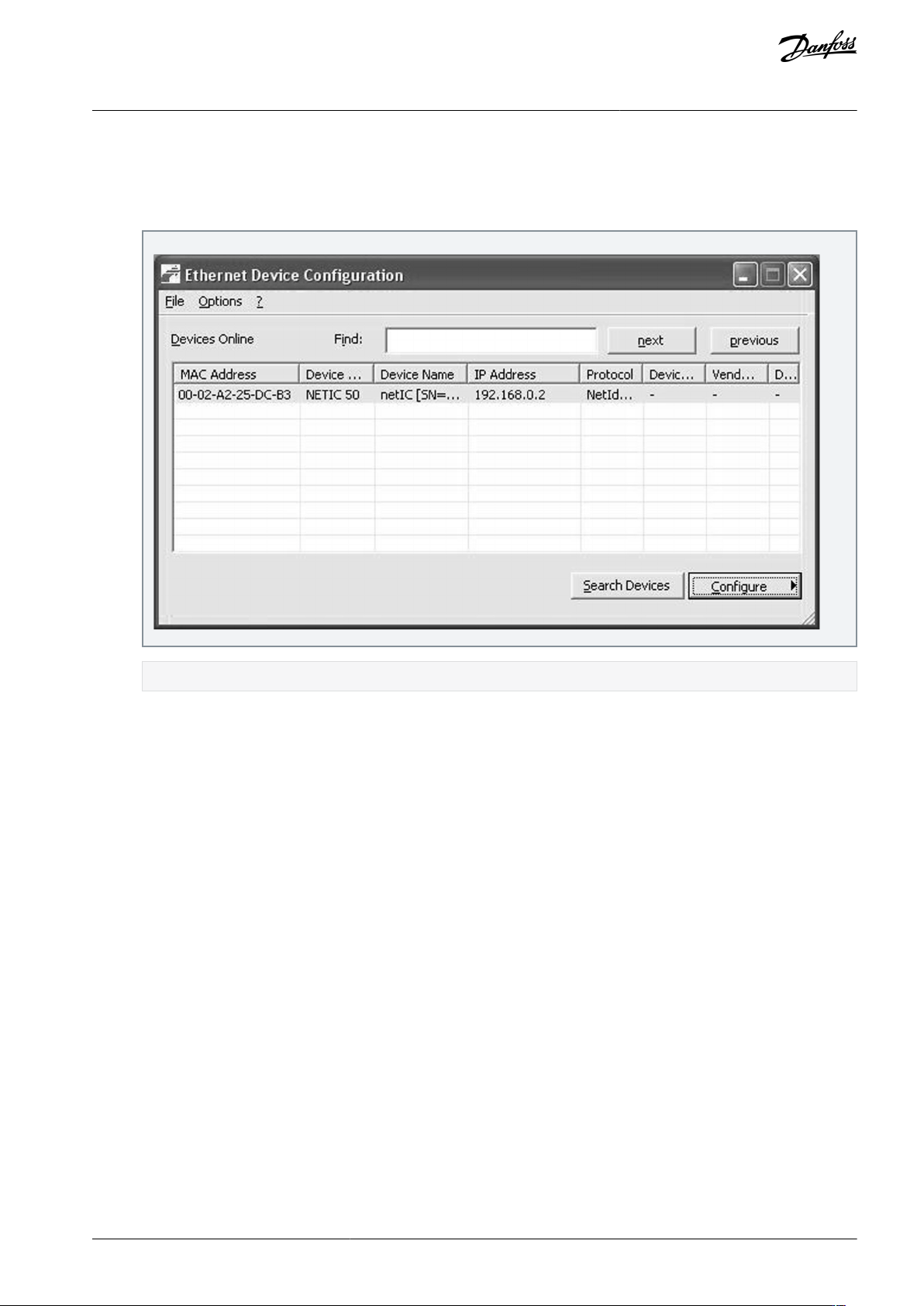

Start the Ethernet Device Configuration Tool.
Click Search Devices.
e77ha641.10
The software searches for connected devices.
Use the IP address to connect to the device via the web server.
AN353423548483en-000201 / 130R0945 | 17Danfoss A/S © 2022.10
