- - - 1 Safety 1.1 Disclaimer The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at any time and without prior notice. Re…
10
10.1
10.2
10.3
10.4
11
11.1
11.2
11.3
11.4
11.5
Network Design 34
Star Topology 34
Line Topology 34
Ring Topology 35
Combined Topologies 35
Specifications 37
Connections 37
Settings 37
Network 37
Power 37
Certification 37
AN353423548483en-000201/130R0945 | 5Danfoss A/S © 2022.10
Contents
EtherNet/IP Card
Installation Guide
-
-
-
1 Safety
1.1 Disclaimer
The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is
subject to change at any time and without prior notice. Responsibility or liability is never accepted for direct, indirect, or consequen-
tial damage resulting from the use or application of this equipment.
1.2 Warnings
W A R N I N G
SHOCK HAZARD
Attaching or removing accessories while the soft starter is connected to mains voltage may cause personal injury.
Before attaching or removing accessories, isolate the soft starter from mains voltage.
W A R N I N G
RISK OF PERSONAL INJURY AND EQUIPMENT DAMAGE
Inserting foreign objects or touching the inside of the soft starter while the expansion port cover is open may endanger person-
nel and can damage the soft starter.
Do not insert foreign objects in the soft starter with the port cover open.
Do not touch the inside of the soft starter with the port cover open.
AN353423548483en-000201 / 130R09456 | Danfoss A/S © 2022.10
Safety
EtherNet/IP Card
Installation Guide
•
•
2 Introduction
2.1 Product Design
The EtherNet/IP Card allows the soft starter to connect to an Ethernet network and be controlled or monitored using an Ethernet
communication model.
Familiarity with Ethernet protocols and networks is required to operate the device successfully. For difficulties arising from using
this device with 3
rd
-party products, including PLCs, scanners, and commissioning tools, contact the relevant supplier.
2.2 Compatibility
This communication expansion card is suitable for use with VLT® Soft Starter MCD 600.
The card is available in 2 versions:
175G0131: VLT® Soft Starter MCD 600 EtherNet/IP Card
175G0031: VLT® Soft Starter MCD 600 EtherNet/IP Card with Ground Fault Protection.
This manual is suitable for use with both versions.
This Installation Guide is intended for use with version 2.x of the VLT® Soft Starter MCD 600 EtherNet/IP Card. Version 1.x of the
EtherNet/IP Card does not support custom users, TCP connection, or IoT operation.
2.3 Network Connection
Table 1: Supported Protocols
Protocols
EtherNet/IP
Industrial Ethernet via EtherNet/IP
TCP
Transmission control protocol to connect to port 4000 of a PC
MQTT
Message queue telemetry transport
OPC UA
Open platform communications unified architecture
4/T2
READY RUN TRIP LOCAL
Exit
Reset
Menu
Store
2/T1 6/T3
1/L1 3/L2 5/L3
VLT
®
Soft Starter
1
2
4
3
5
e77ha805.10

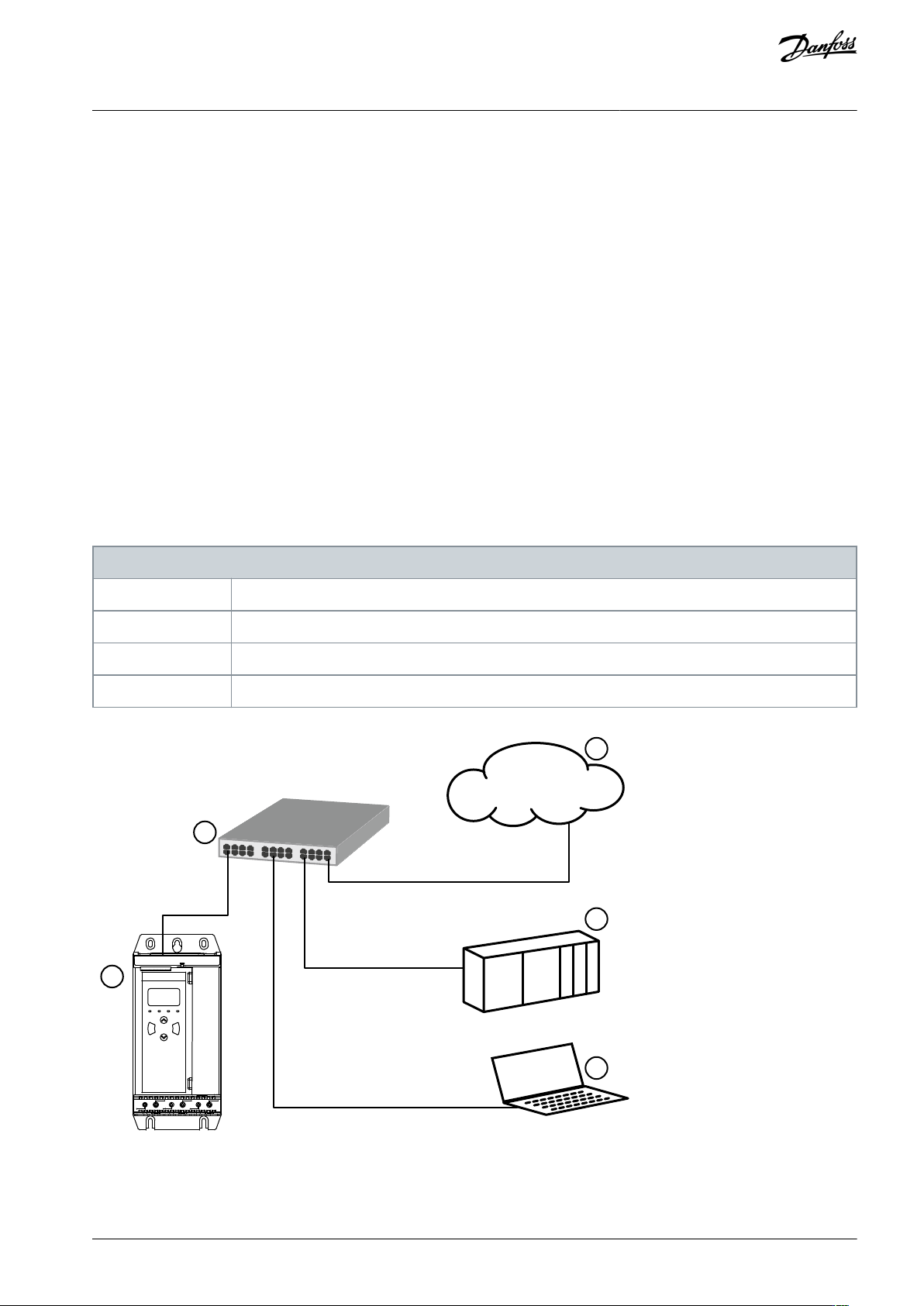

Illustration 1: Overview of Network Connections
AN353423548483en-000201 / 130R0945 | 7Danfoss A/S © 2022.10
Introduction
EtherNet/IP Card
Installation Guide
