Auto Cycle
207B206B206BAuto Cycle is the normal operating mode for the DeltaTherm IR Cure Module. In Auto Cycle,
the cure module can operate as part of a production line. All communication with adjacent
machines is done without operator input. In Auto Cycle, the machine uses the parameters in
setup mode. The screen below shows Auto Cycle with four zones top and bottom.
208B207B207B
10B10B10BFigure 11: Auto Cycle
1. 50B49B49BThe Panel Temperature shows the current temperature of the heater panel.
2. 51B50B50BThe Panel Temperature Setpoint shows the current recipe’s temperature setpoint
of the heater panel.
3. 52B51B51BThe At Temperature indicator will light up when the panel temperature is within
the allowable setpoint deviation value.
4. 53B52B52BThe Current Recipe Name will display at the top of the screen.
5. 54B53B53BThe Board Counter displays the number of boards in the oven. In the event of an
incorrect value (PIP flashing), press and hold for 5 seconds to reset this to zero
6. 55B54B54BThe Autocycle Messages section displays the current Auto Cycle state and status
messages.
7. 56B55B55BPress to the Heater Panel Trend icon to view a graph of panel temperature values
over time.
8. 57B56B56BTo view the next set of panels and zones, press the Next Zone button.
9. 58B57B57BThe SMEMA Status shows the current status of SMEMA inputs and outputs.
10. 59B58B58BThe current Conveyor Speed will display at the bottom of the screen.
DeltaTherm IR Cure Module
Revision C / September 2022
• 60B59B59BWhen in Auto Cycle, the DeltaTherm IR Cure Module operates the exhaust fan
and the intake fan.
• 61B60B60BThe IR panels will start and increase to the set system parameters. It may take a
few minutes to increase to the set values.
• 62B61B61BWhen the machine is in the range of the system parameters, auto cycle will start.
Differences in the parameters may occur to maintain optimum conditions.
274B273B273BNote: With two-sided IR ovens, the upper panels may indicate temperatures higher
than the setpoint due to absorption of energy from the lower panels. This is normal.
• 63B62B62BIf the DeltaTherm IR Cure Module is the last machine in a line, the alarm will
signal when a board exits. This only occurs if a downstream SMEMA signal is not
present.
• 64B63B63BWhen the conveyors stop for a board to be removed, the cure module will
maintain the parameters. The module will not time-out if a board is not removed.
• 65B64B64BIn Auto Cycle, the PLC will send a signal through the RS485 cable to the next
machine every 5 seconds to tell the next machine the width of the conveyor.
• 66B65B65BPush the Home Button on screen or F3 Key to leave Auto Cycle at any time.
Boards in the system are not removed when you exit.
275B274B274BNote: Make sure all boards have exited the system before you exit Auto Cycle.
DeltaTherm IR Cure Module
Revision C / September 2022
Manual Mode
IR Panels
209B208B208BThe panel temperature is shown for each zone. A zone is an area in the oven that is
controlled and monitored independent of other areas. Usually an oven has four zones.
210B209B209B

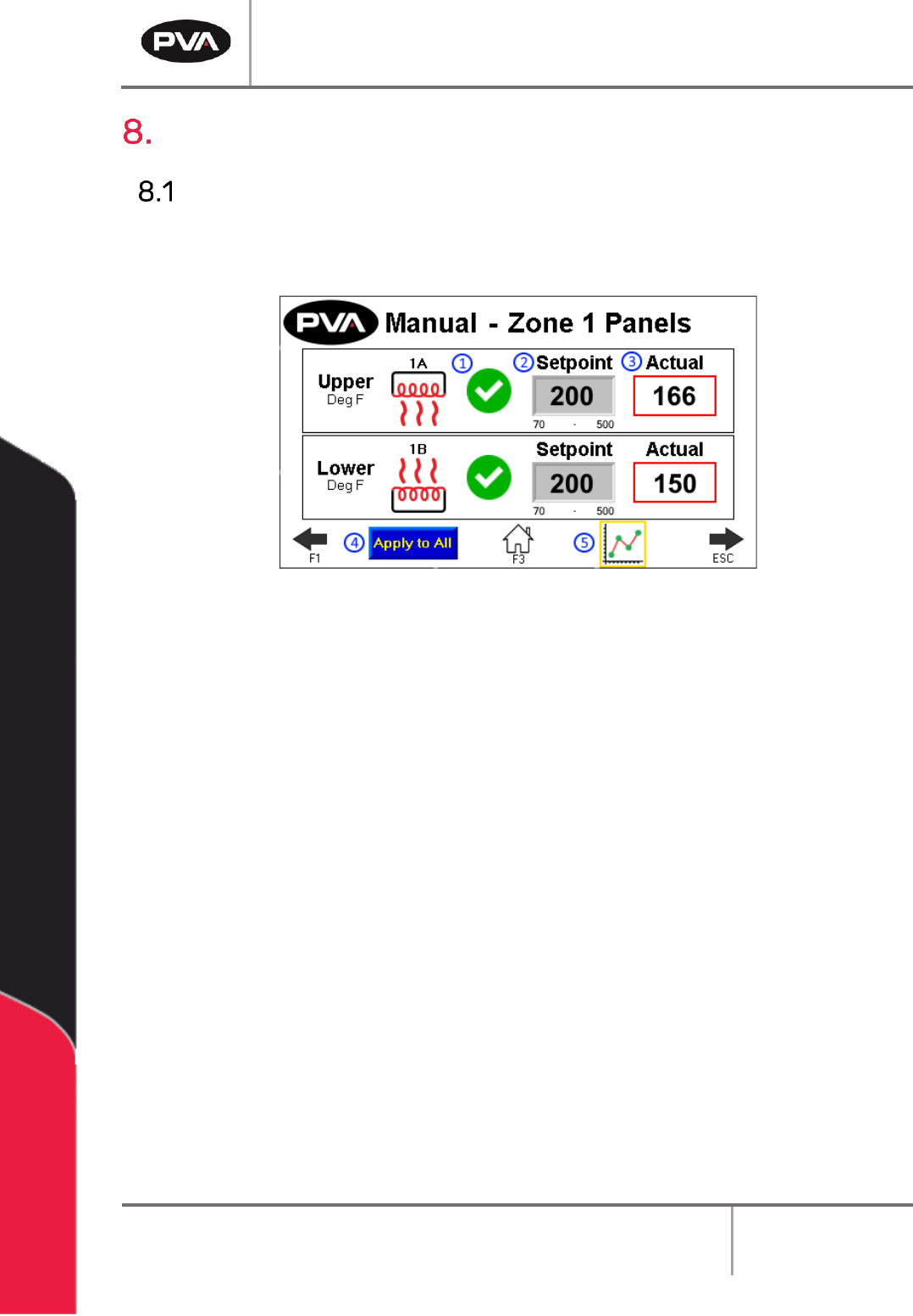

11B11B11BFigure 12: Manual IR Panels
1. 67B66B66BSelect the Heater Panel switch to turn the desired panel on or off. The indicator to
the left of the switch will show the heat output. The heater panel will heat up to the
current setpoint.
2. 68B67B67BThe Setpoint boxes are the target set points for each zone and heater panel. To
change the target Setpoint, press the designated box. A new screen will be shown.
• 69B68B68BThe left side box in the Zone Control area is the target temperature (display
temperature is filtered) for each zone and the deviation point for that zone.
• 70B69B69BTouch the screen and a keypad will be shown.
• 71B70B70BEnter the necessary value.
• 72B71B71BPush ENT, and the zone screen will be shown again.
3. 73B72B72BThe Actual boxes show the actual temperatures (display temperature is filtered) for
each zone.
4. 74B73B73BSelect Apply to All to copy the setpoints of the Zone 1 upper and lower heater panel
to every zone and panel.
5. 75B74B74BSelect the View Trend icon to view each panel’s temperature history on a graph.
