Setup Mode
219B218B218BIn Setup mode, the operator can set basic functions of the machine and Auto Cycle
parameters. These parameters (depending on the machine) are the current recipe, IR panel
temperatures, allowable deviations, conveyor width, and conveyor speed. Parameters are
saved in the controller under the current recipe even when the module is shut down. Push
the Home button or the F3 button at any time to exit Setup mode and return to cycle stop.
IR Panels
220B219B219B

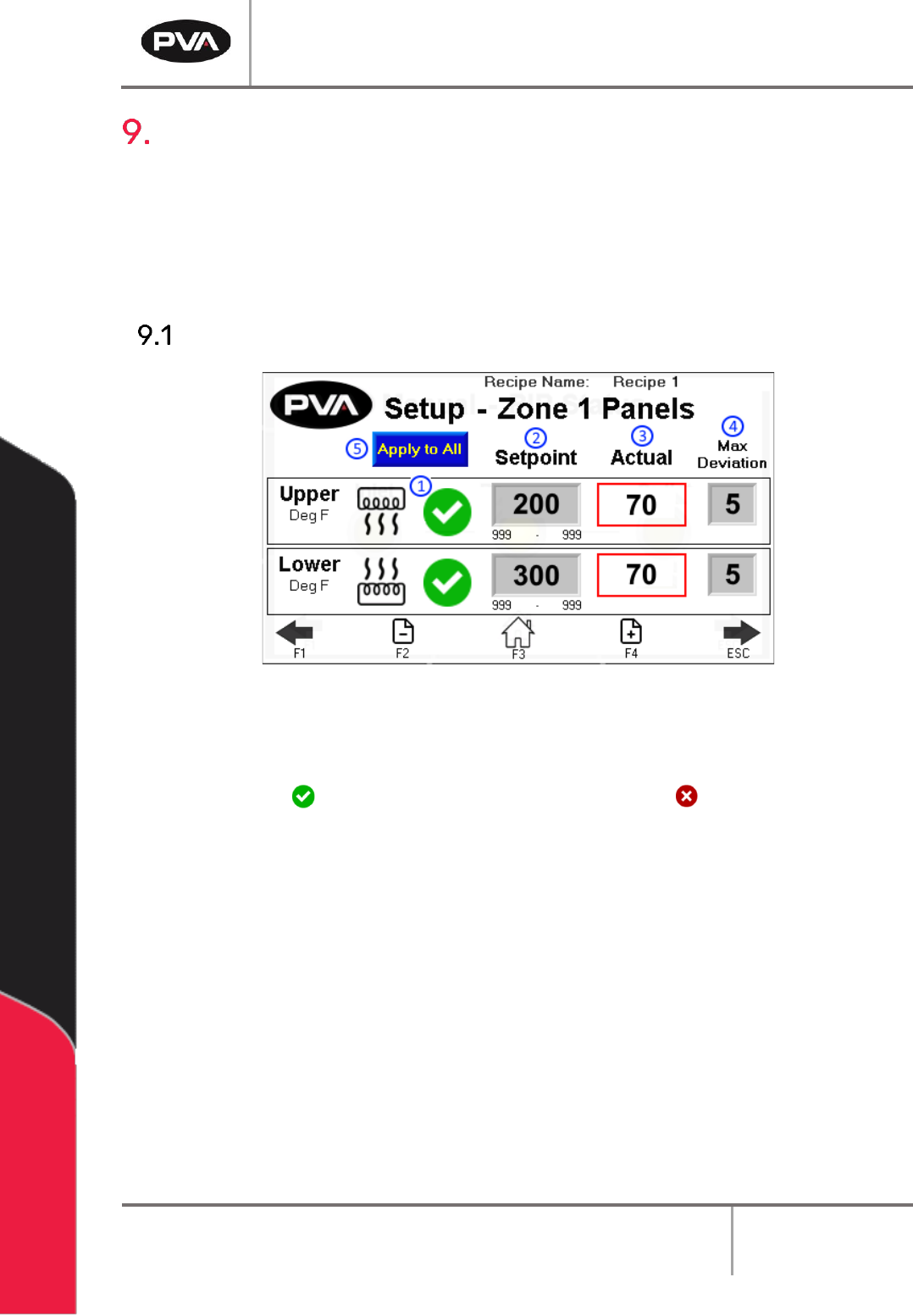

17B17B17BFigure 18: Setup Zone 1 Panels
1. 90B89B89BThe Heater Panel Recipe Switch can disable or enable the use of a zone’s upper or
lower heater panel in Autocycle. If enabled, the panel will display a green
checkmark . If disabled, the panel will display a red X .
280B279B279BNote: IR panels cannot activate unless the exhaust fan is on.
2. 91B90B90BThe Setpoint box is the target temperature (display temperature is filtered) for
each zone and the deviation box is the permitted deviation from the setpoint for
that zone.
• 92B91B91BTouch the Setpoint box and a keypad will be shown.
• 93B92B92BEnter the necessary value. The system minimum and maximum are shown
below the numeric field.
• 94B93B93BPress “ENT” to save the value and close the keypad.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 25 of 41
3. 95B94B94BThe Actual Temperature displays the current actual temperature of the heater
panel.
• 96B95B95BOn double-sided ovens, the upper and lower panels for each section are
controlled as one zone. The display temperature is the average temperature
(display temperature is filtered) of the upper and lower panel.
281B280B280BNote: With two-sided IR ovens, the upper panels may indicate temperatures higher
than the setpoint due to absorption of energy from the lower panels. This is normal.
4. 97B96B96BThe Max Deviation is the max allowable deviation from the target setpoint for the
specified zone and heater panel. Each enabled zone’s panels must reach and
maintain a temperature within the set deviations to run the product in Auto Cycle.
• 98B97B97BTouch the Max Deviation box and a keypad will be shown.
• 99B98B98BEnter the desired value.
• 100B99B99BPress “ENT” to save the value and close the keyboard.
5. 101B100B100BThe Apply to All button will copy the setpoints and deviations of the Zone 1 upper
and lower panels to all over zones.
282B281B281BNote: Zone enable/disable options will not be copied over.
6. 102B101B101BThe name of the current Recipe will display. Any changes made to the recipe field
values will automatically be saved to the current recipe. Recipes are configured in
OEM mode.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 26 of 41
Conveyor Speed
221B220B220B
18B18B18BFigure 19: Conveyor Options
1. 103B102B102BTo change the conveyor speed while in Auto Cycle, select the Speed box. The
keypad will be shown.
• 104B103B103BEnter the necessary value. The minimum speed is 0 feet per minute or 0
meters per minute, the maximum speed is 60 feet per minute or 19 meters
per minute.
• 105B104B104BPress “ENT” to save the value and close the keypad.
• 106B105B105BSelect the arrow button to toggle the oven between left to right or right
to left conveyor direction.
