DeltaTherm IR Cure Module
Revision C / September 2022
Page 26 of 41
Conveyor Speed
221B220B220B

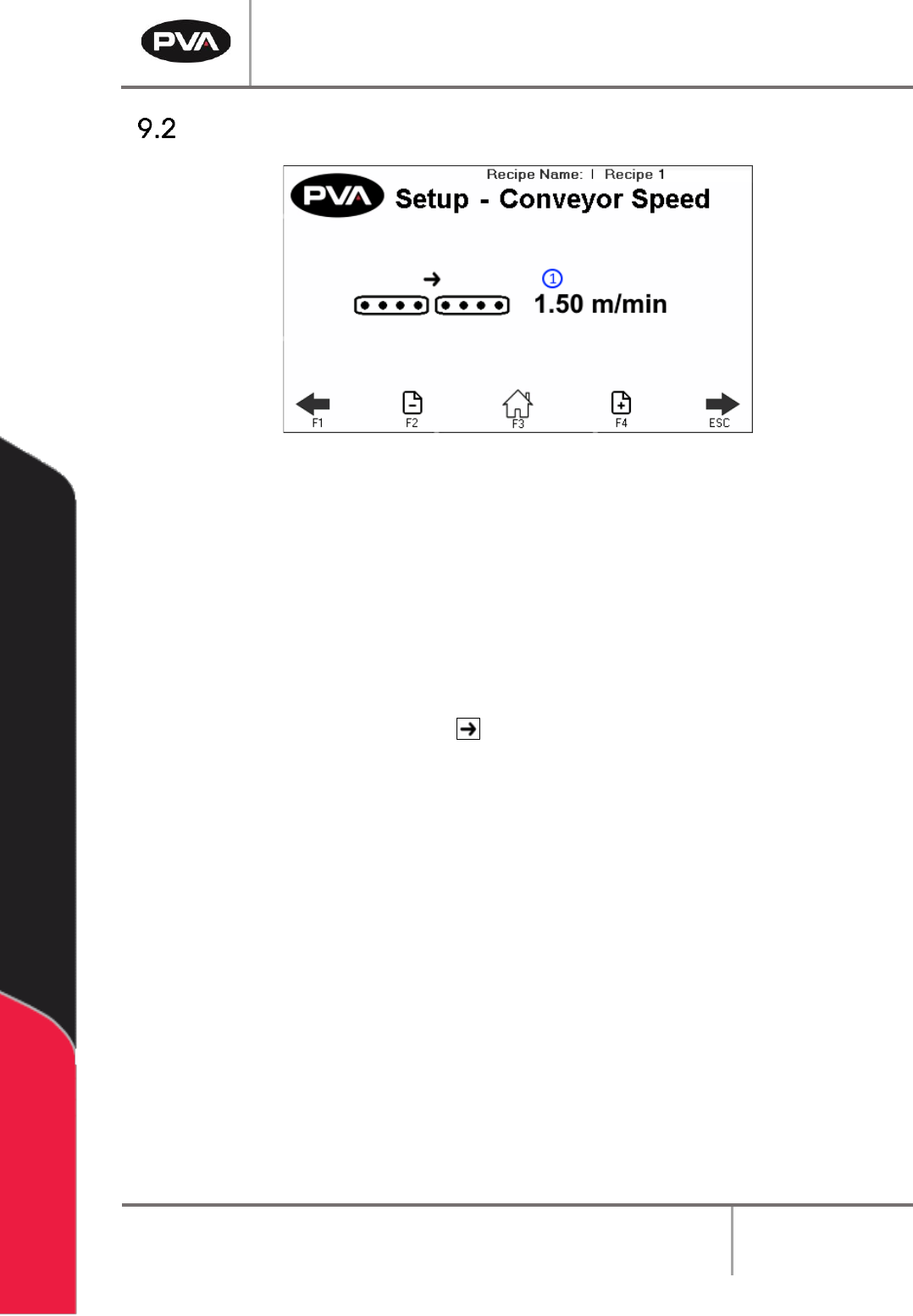

18B18B18BFigure 19: Conveyor Options
1. 103B102B102BTo change the conveyor speed while in Auto Cycle, select the Speed box. The
keypad will be shown.
• 104B103B103BEnter the necessary value. The minimum speed is 0 feet per minute or 0
meters per minute, the maximum speed is 60 feet per minute or 19 meters
per minute.
• 105B104B104BPress “ENT” to save the value and close the keypad.
• 106B105B105BSelect the arrow button to toggle the oven between left to right or right
to left conveyor direction.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 27 of 41
Conveyor Width
222B221B221BThis is an optional setting. Not all modules will have this option.
• 107B106B106BUse the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Conveyor Adjust screen.
• 108B107B107BSelect the indicator to toggle this feature on and off.
• 109B108B108BPlace the board on the conveyor.
223B222B222B

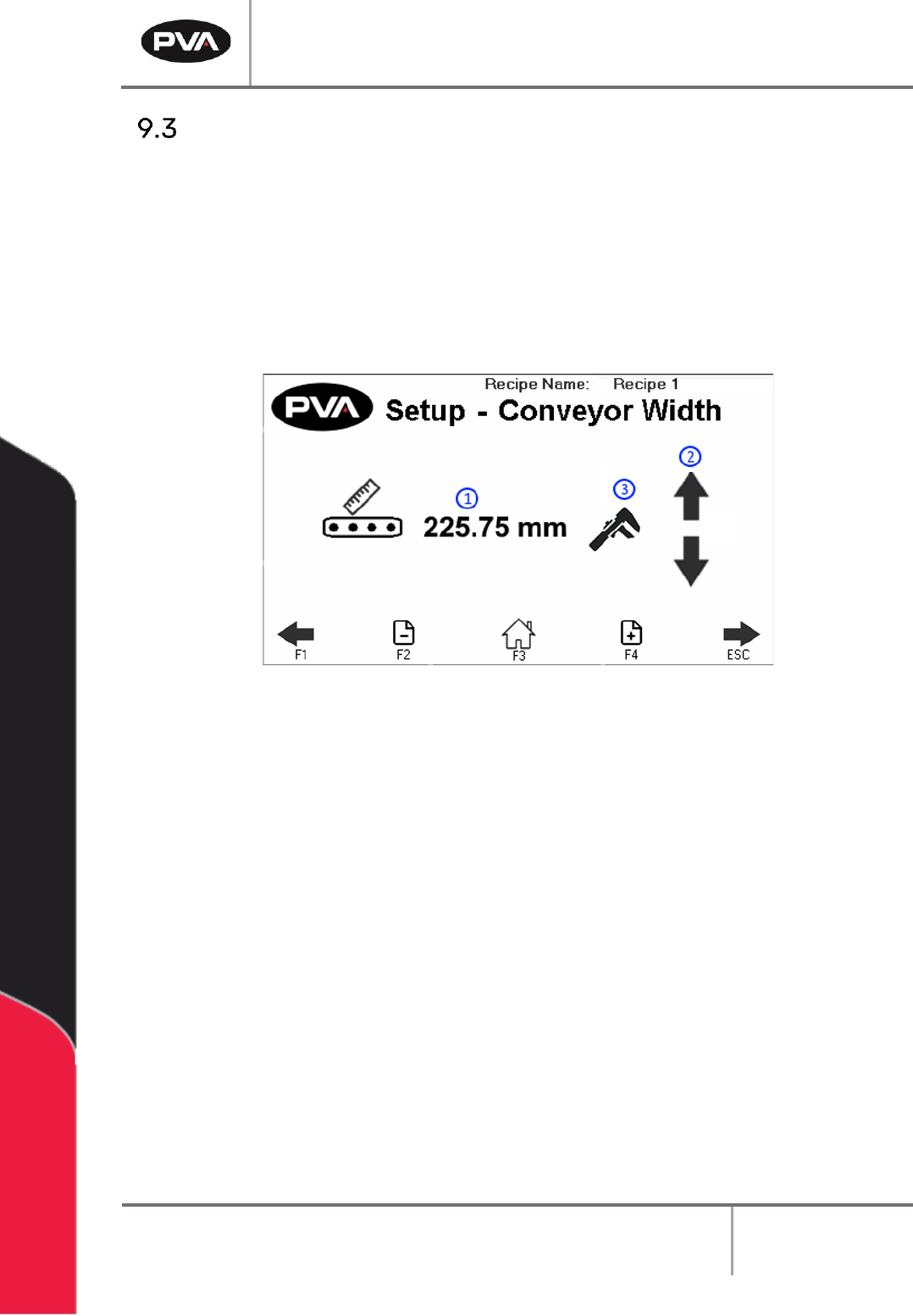

19B19B19BFigure 20: Conveyor Adjust
1. 110B109B109BThe screen displays the Target Recipe Width. If the width value is known, press the
value to manually enter the width setpoint. A keypad will be shown.
• 111B110B110BEnter the necessary value. The metric unit range is from 50–500 mm (1.97-
19.69 in).
• 112B111B111BSelect “Save” to keep and use the new value.
2. 113B112B112BIf the width value is unknown, press the arrows to use the Auto Adjust Conveyor
Width. This will jog the conveyor in a negative or positive direction.
3. 114B113B113BOnce the target recipe width is correct, press the wrench icon to set the target
recipe width to the Current Conveyor Width.
283B282B282BNote: The clear board sequence will not run prior to jog.
284B283B283BNote: The conveyor width setpoint will not update during manual jog.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 28 of 41
Rename Recipe
• 115B114B114BUse the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Settings screen.
224B223B223B

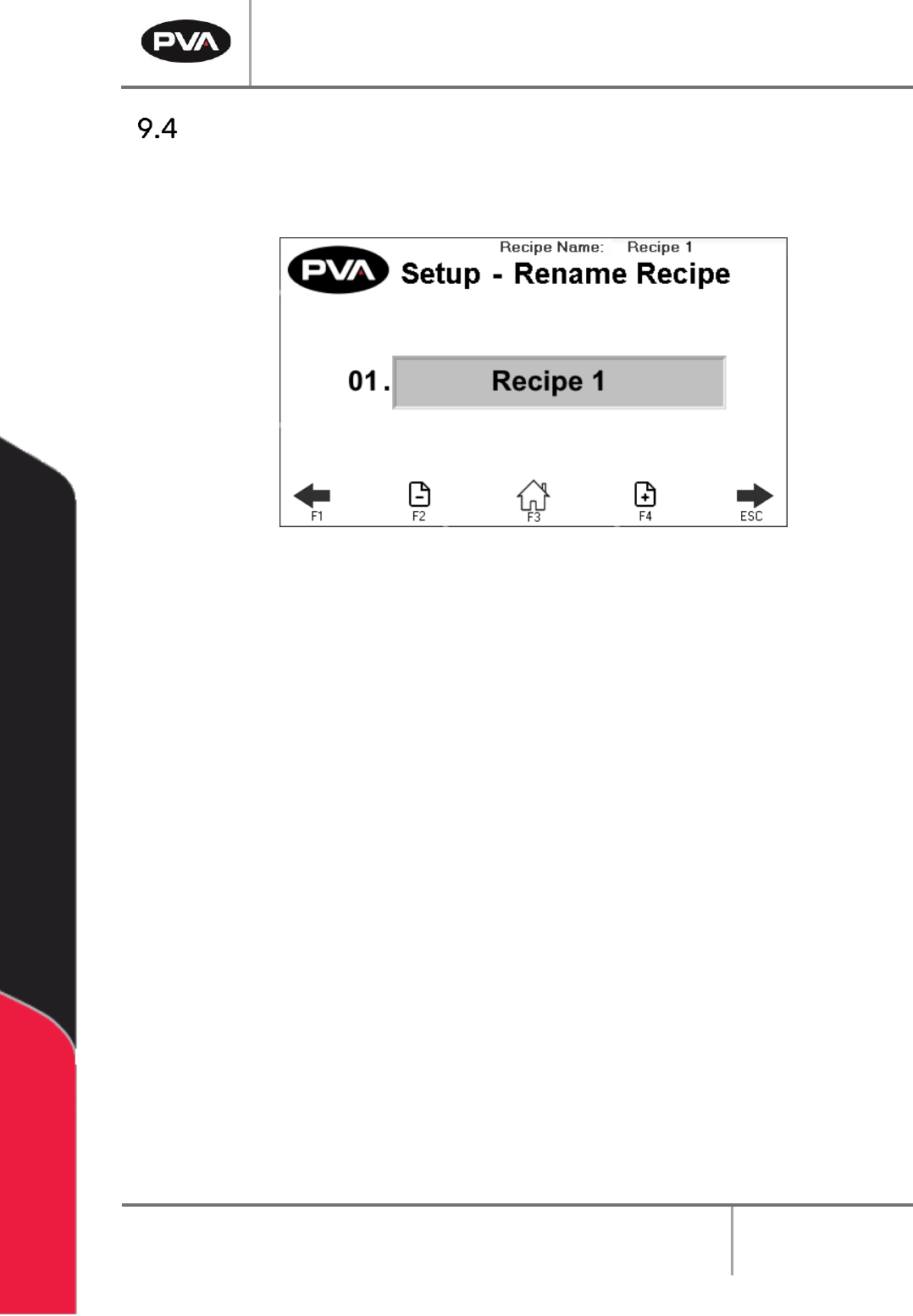

20B20B20BFigure 21: Setup - Rename Profile
• 116B115B115BUse the + - Page icons or the F2 and F4 keys to scroll through the recipe names.
• 117B116B116BYou can have a maximum of 30 profiles.
• 118B117B117BSelect the name you want to change in the text box.
• 119B118B118BThe keyboard will be shown, type the new name and select enter. The new name will
be saved. Recipe names are limited to 15 characters.
