DeltaTherm IR Cure Module
Revision C / September 2022
Page 8 of 41
Theory of Operation
176B175B175BThe DeltaTherm IR Cure Module is an infra-red (IR) curing machine that can handle multiple
boards. Upstream and downstream ends are SMEMA (Surface Mount Equipment
Manufacturers Association) rated for use in a production line. The system is designed to
operate with PVA workcells.
177B176B176BThe operator controls the machine with the operator interface; this includes setup, manual
operation, and automatic operation. Machine status and error messages are shown on the
screen and the light tower. The operator(s) must, by reading the manual or by training,
understand the operation of this machine. Any uses other than those listed above could
result in a dangerous condition and cannot be protected against by the safety features
installed on the system.
178B177B177B

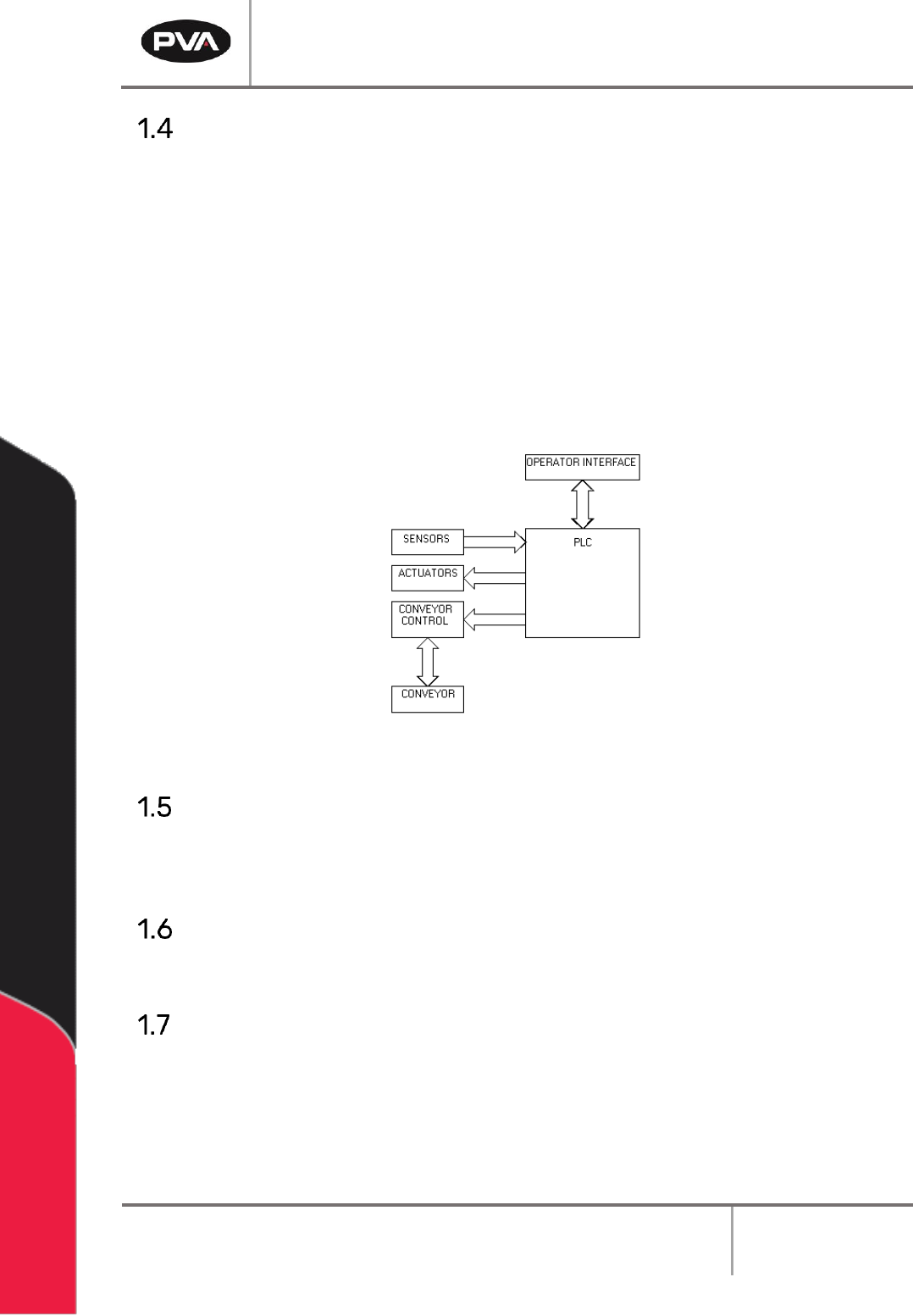

0B0B0BFigure 1: DeltaTherm IR Cure Module Functional Block Diagram
Personal Protective Equipment
179B178B178BOperators must use eye protection. Always wear gloves when handling materials and
solvents. Refer to MSDS sheets on the material being dispensed for other precautions.
Waste Disposal
180B179B179BDispose of all used parts and materials in accordance with local laws and regulations.
Hazards Due to Contact
181B180B180BThe DeltaTherm IR Cure Module is made to minimize injury from contact with any
accessible portion of the machine. In some modes, it is possible to access the work area
while the machine operates. Only a qualified person should do this. All hot surfaces have a
warning label.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 9 of 41
Operating, Handling, Transportation, and
Storage
182B181B181BThe system should have minimal vibration when handled and transported. Use an air-ride
truck for roadway transport. The machine is made to operate in an industrial environment
but abuse will reduce its performance.
Dust and Debris
183B182B182BAll enclosures and connector covers should be closed tightly. Put a cover over the system
if dust or other airborne debris is present in the storage area.
Temperature and Humidity
184B183B183BStorage and operation should be done in an area at 40-105°F (4– 41°C) and low humidity.
Do not let the machine have condensation on it.
Location
185B184B184BThe machine should be installed and stored on a level surface away from standing water,
possible overspray, and leaks.
DeltaTherm IR Cure Module
Revision C / September 2022
Page 10 of 41
SMEMA
186B185B185BFor manufacturing lines (multiple machines utilizing conveyor systems), it is necessary for
the individual modules to communicate reliably. Make sure the SMEMA and Intermodule
cables are correctly connected.
268B267B267BNote: On the diagrams, the J# refers to the label on the machine, not the label on the
cable.
187B186B186BThe Surface Mount Equipment Manufacturers Association (SMEMA) Electrical Equipment
Interface Standard is used to make sure the sequence of boards is correct. If these
connections are not in place, boards cannot move from one machine to another.
188B187B187BSMEMA cables have male 14-pin amp-type CPC connectors. The cables are straight-
through so orientation does not matter. On each module, the wire to the J1 plug must
connect to the J2 plug on the machine upstream. Similarly, the J2 plug on each machine
must connect to the J1 plug on the machine downstream, as shown below.
189B188B188B
1B1B1BFigure 2: SMEMA Process Flow
