1-2 SM-Series SME DB Tape Feeder User's Manual 1.1.2. SME 8mm Tape Feeder Figure1.2 Configuration of SME 8mm tape feeder No. Name No. Name No. Name 1 T ape Guide 2 Locker 3 X Eccentric Pin 4 Location Flange 5 Instal…
1-1
Overview
Chapter1. Overview
1.1. Configuration of feeder
1.1.1. SME W4P1 Tape Feeder
Figure1.1 Configuration of SME W4P1 tape feeder
No. Name No. Name No. Name
1 Tape Guide 2 Locker 3 X Eccentric Pin
4 Location Flange 5 Installation Guide 6 Clamping Roller
7 Probe Pin 8 Reel Plate 9 Vinyl Cutter
10 Clamp Lever 11 Drain Tensioner 12 Drain Handle
13 Handle 14 Vinyl Box 15 Vinyl Box Door
16 UI Button 17 Reel Lever 18 Reel Brake
19 Reel Hanger 20 PCB Cover 21 Drain Cover
1-2
SM-Series SME DB Tape Feeder User's Manual

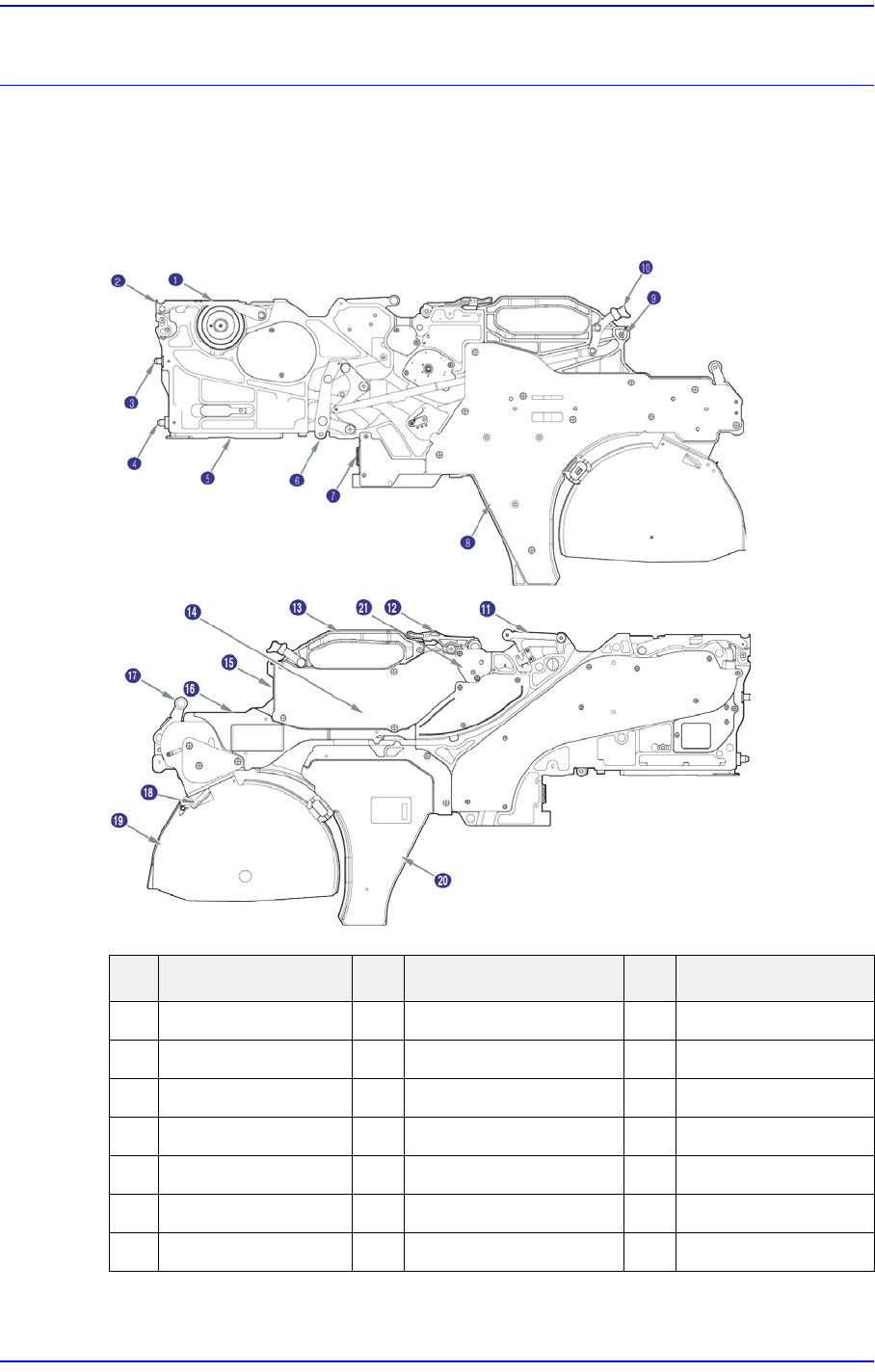

1.1.2. SME 8mm Tape Feeder
Figure1.2 Configuration of SME 8mm tape feeder
No. Name No. Name No. Name
1 Tape Guide 2 Locker 3 X Eccentric Pin
4 Location Flange 5 Installation Guide 6 Clamping Roller
7 Probe Pin 8 Reel Plate 9 Vinyl Cutter
10 Clamp Lever 11 Drain Tensioner 12 Drain Handle
13 Handle 14 Vinyl Box 15 Vinyl Box Door
16 UI Button 17 Reel Lever 18 Reel Brake
19 Reel Hanger 20 PCB Cover 21 Drain Cover
1-3
Overview
1.1.3. SME 12~88mm Tape Feeder
Figure1.3 Configuration of SME 12~88mm tape feeder
No. Name No. Name No. Name
1 Tape Guide 2 Vinyl Guide 3 Vinyl Guide Locker
4 X Eccentric Pin 5 Installation Guide 6 Probe Pin
7 Locker 8 Location Flange 9 Clamping Roller
10 Clamp Lever 11 Handle 12 Drain Handle
13 Vinyl Discharge
Roller
14 Drain Gear 15 Reel Arm Plate
16 Reel Arm Post 17 Reel Brake 18 Serial Number Sticker
19 Stopper Module 20 Vinyl Box 21 UI Button
